Nachi

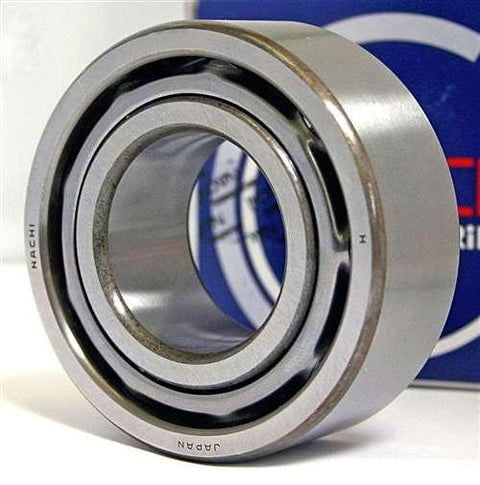

5204 Nachi 2 Rows Angular Contact Bearing 20x47x20.6 Japan Bearings


$70.49 CAD
SKU: Kit10046
UPC: 00193019085523
Item: 5204 Angular Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 20mm x 47mm x 20.6mm/Metric
ID (inner diameter)/Bore: 20mm

5204 Nachi Double Row Angular Ball Bearing
20mm x 47mm x 20.6mm
Made in Japan

5204 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 20mm, outer diameter is 47mm and width is 20.6mm.

  • Item: 5204 Angular Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 20mm x 47mm x 20.6mm/Metric
  • ID (inner diameter)/Bore: 20mm
  • OD (outer diameter D1): 47mm
  • Width/Height/thickness: 20.6mm
  • Size: 20 x 47 x 20.6 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 20,000 N
  • Static load rating Cor: 12,700 N
  • Limiting Speed:
    • Grease Lubrication: 10,000 RPM
    • Oil Lubrication: 14,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
