Nachi

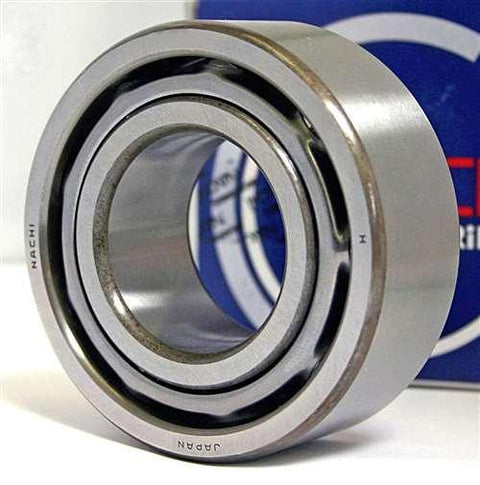

5214ZZ Nachi 2 Rows Angular Contact Bearing 70x125x39.7 Bearings


$476.57 CAD
SKU: Kit10088
UPC: 00193019085905
Item: 5214ZZ Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Double Shielded
Dimensions: 70mm x 125mm x 39.7mm/Metric
ID (inner diameter)/Bore: 70mm

5214ZZ Nachi Angular Ball Bearing
Double Shielded
70mm x 125mm x 39.7mm
Made in Japan

5214ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 70mm, outer diameter is 125mm and width is 39.7mm.

  • Item: 5214ZZ Nachi Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 70mm x 125mm x 39.7mm/Metric
  • ID (inner diameter)/Bore: 70mm
  • OD (outer diameter): 125mm
  • Width/Height/thickness: 39.7mm
  • Size: 70 x 125 x 39.7 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 96,500 N
  • Static load rating Cor: 84,500 N
  • Limiting Speed:
    • Grease Lubrication: 3,800 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
