5x5mm Ball Plunger Set, 304 Stainless Steel Spring Loaded Ball Detent Plungers, 10N Elasticity, 30pcs for Precise Positioning, Indexing, Locking & Mechanical Equipment

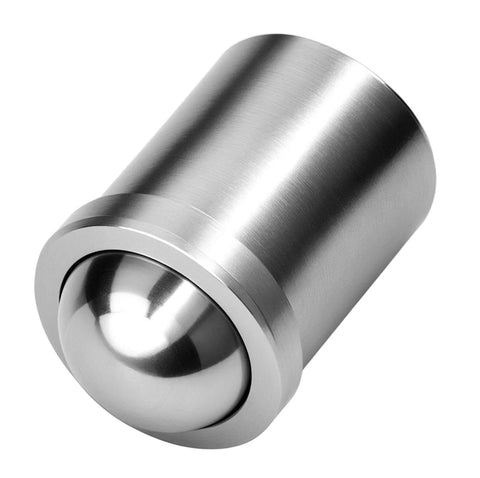

Spring Loaded Ball Plunger 5x5mm Stainless Steel
✔️ Ball Detent Press Fit Plunger 10N 30 PCS

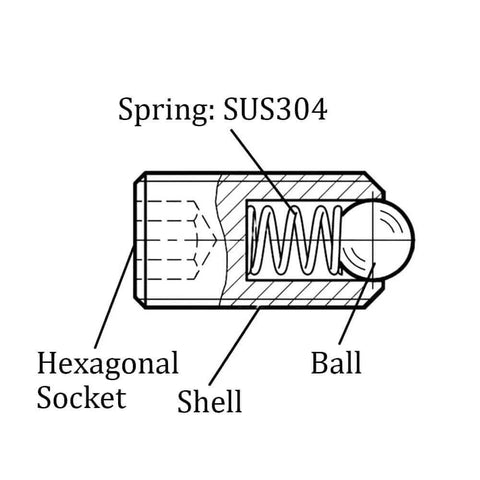

This is a compact spring loaded ball plunger made from 304 stainless steel, designed for press-in installation where controlled pressure and accurate positioning are needed. These plungers are commonly used in mechanical equipment, clamps, molds, and automatic machinery for indexing, latching, and clean detent action. Pack size is 30 pieces.

✅ Pack size includes 30 ball plungers
✅ Spring force rated at 10N for balanced holding pressure
✅ Material 304 stainless steel for corrosion resistance and durability
✅ Press fit design for quick and simple installation
✅ Spring loaded ball supports positioning, indexing, and latching
✅ Smooth ball action helps reduce wear during repeated use

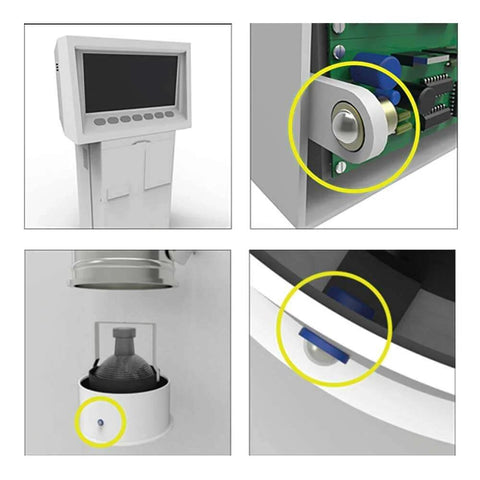

✅ Suitable for machinery, fixtures, and automation assemblies

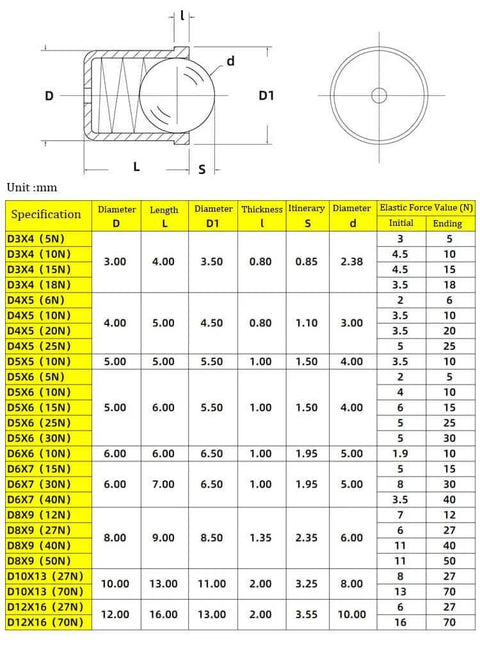

Dimensions
Body diameter 5 mm 0.196 inch
Body length 5 mm 0.19 inch
Ball diameter 4 mm 0.157 inch

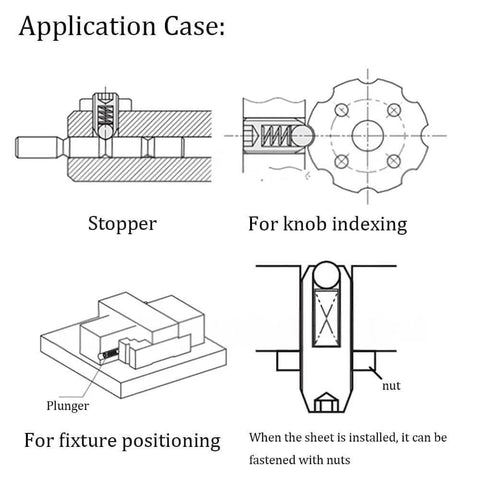

💡 Why are medium-force spring loaded ball plungers used in mechanical positioning systems?
They provide steady pressure and repeatable alignment without overstressing components.

• Moderate spring force balances secure holding with smooth release

• Ball detent design supports accurate indexing and positioning

• Stainless steel construction resists corrosion and surface wear

• Press fit installation keeps assemblies compact and easy to build

These ball plungers are a handy option when you want consistent detent action, easy installation, and reliable positioning across a wide range of mechanical and automation applications.
