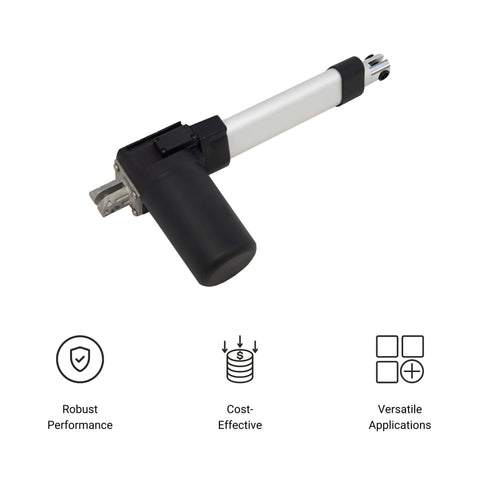

6 Inch Stroke Electric Linear Actuator, 400 lbs Force, IP66 Water Resistance - High Load Linear Actuator for Automation, Manufacturing, Automotive

6-Inch Stroke Electric Linear Actuator PA-04, 400 lbs, IP66 Weather-Resistant - 1 Unit Pack for Automation, Manufacturing, and Automotive
✔️ Heavy-duty, outdoor-ready actuation for reliable automation and equipment upgrades

The PA-04 is a 6-inch stroke electric linear actuator designed for high-load tasks in automation, manufacturing, automotive, and outdoor equipment. It’s a handy choice for applications like automated doors, adjustable furniture, medical devices, and material handling in factory or agricultural settings. Pack Size: 1 Unit.

✅ Stroke: 6 in (152 mm)
✅ Travel range: 1 in to 40 in (25.4 mm to 1016 mm)
✅ Force: 400 lbs
✅ Operation: 12 VDC
✅ IP rating: IP66
✅ Connector: 2-Pin Molex Mini-Fit Jr
✅ Certification: ISO 9001:2015

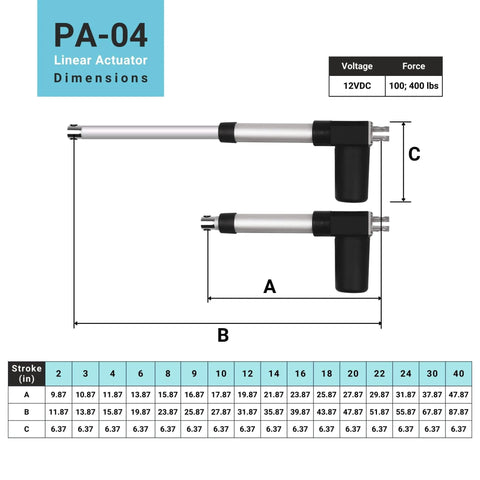

Stroke: 6 in (152 mm)
Travel range: 1 in to 40 in (25.4 mm to 1016 mm)
Load: 400 lbs
IP rating: IP66
Connector: 2-Pin Molex Mini-Fit Jr

💡 How does the PA-04 6-inch stroke actuator balance speed, load handling, and duty cycle in outdoor automation projects with dust, water spray, and temperature variation, and what installation practices maximize reliability in rugged environments?

Short answer: it’s a handy, rugged solution designed for harsh conditions with straightforward integration.

• IP66 protection guards against dust and powerful water jets, making it suitable for washdown areas and outdoor installations.
• The 6 in stroke and 400 lbs capacity provide reliable extension/retraction for medium-duty doors, workstations, and machinery fixtures.
• 12 VDC operation and the 2-Pin Molex Mini-Fit Jr connector simplify wiring to common controllers and panels.

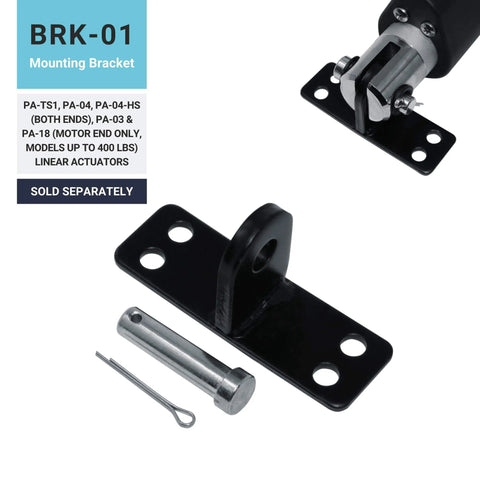

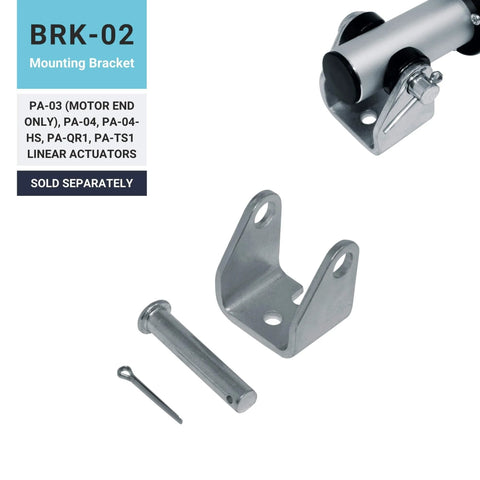

• For reliability, use proper mounting hardware, anti-rotation brackets, and ensure adequate cooling and duty cycle alignment with your application.
