Nachi

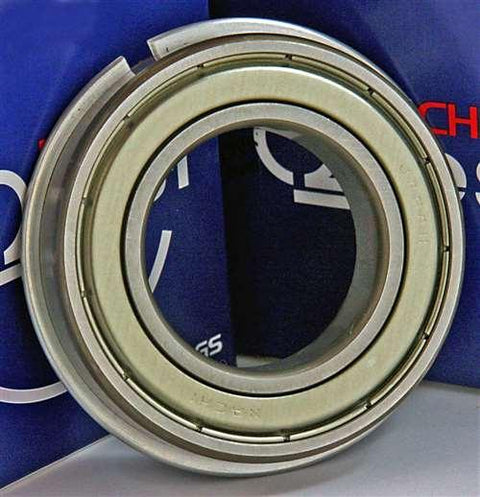

6008ZZENR Nachi Bearing 40x68x15 Shielded C3 Snap Ring Japan Bearings


$64.85 CAD
SKU: Kit9623
UPC: 00193019102619
Item: 6008ZZENR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Dimensions: 40mm x 68mm x 15mm/Metric

6008ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6008ZZENR Nachi Bearing with a Snap Ring, the 6008ZZENR inner diameter is 40mm, the 6008ZZENR outer diameter is 68mm, 6008ZZENR width is 15mm.

  • Item: 6008ZZENR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Dimensions: 40mm x 68mm x 15mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 68mm
  • Width/Height/thickness: 15mm
  • Size: 40 x 68 x 15 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 16,800 N
  • Static load rating Cor: 11,500 N
  • Limiting Speed:
    • Grease Lubrication: 10,000 RPM
  • Equal: 6008 ZZ / 6008 2Z
  • Made in Japan

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.


    •
