Nachi

6034ZZE Nachi Bearing Shielded C3 Japan 170x260x42 Large Bearings


$1,721.60
SKU: Kit9558
UPC: 00193019101995
Item: 6034ZZE Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 170mm x 260mm x 42mm/Metric

6034ZZE Nachi Bearing
One Bearing
Made in Japan


6034ZZE Nachi Bearing, the 6034ZZE inner diameter is 170mm, the 6034ZZE outer diameter is 260mm, 6034ZZE width is 42mm.

  • Item: 6034ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 170mm x 260mm x 42mm/Metric
  • ID (inner diameter)/Bore: 170mm
  • OD (outer diameter): 260mm
  • Width/Height/thickness: 42mm
  • Size: 170 x 260 x 42 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 161,000 N
  • Static load rating Cor: 160,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,400 RPM
  • Equal: 6034 ZZ / 6034 2Z
  • Made in Japan

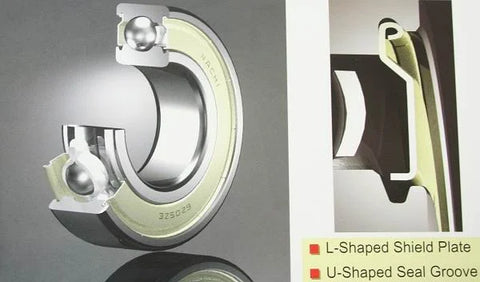

Advanced Shield Design Provides
Superior Protection and Quiet Operation

The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.


  •
