60KTYZ 110V 60-72RPM Permanent Magnet Synchronous Gear Motor with Fixed Bracket and Power Cord Switch Plug

60KTYZ 110V synchronous gear motor with bracket and cord - 60-72RPM
✔️ CW/CCW control, 7mm shaft, 19mm length, 110V, 500W, 1.5m cord

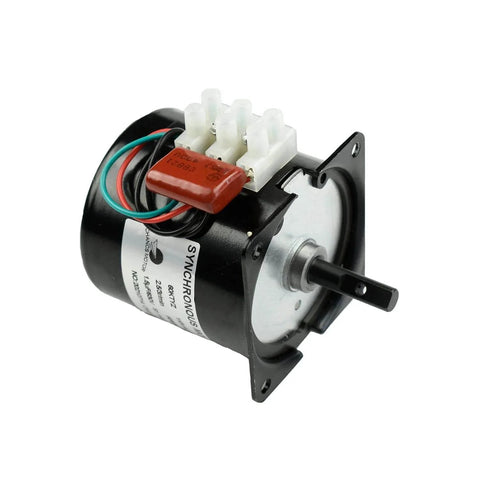

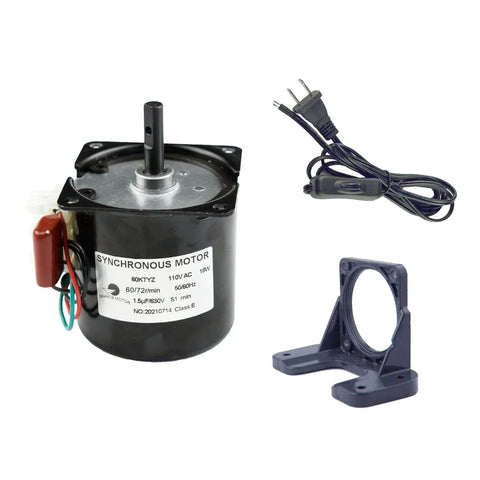

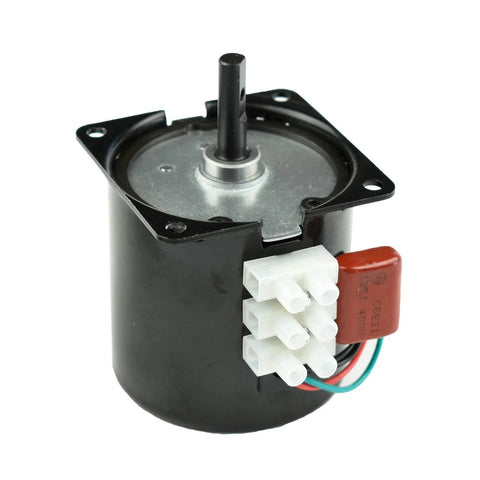

The 60KTYZ 110V permanent magnet synchronous gear motor comes with a fixed bracket and power cord, designed for compact machines, hobby builds, and school projects. It’s built for longevity and easy installation in low-profile drives and compact equipment.

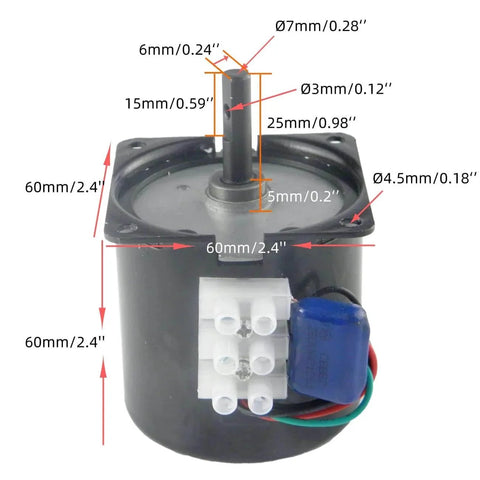

✅ Shaft diameter: 7 mm
✅ Shaft length: 19 mm
✅ Working voltage: AC 110V
✅ Speed: 60-72 RPM
✅ Torque: ≤3 Kg.cm

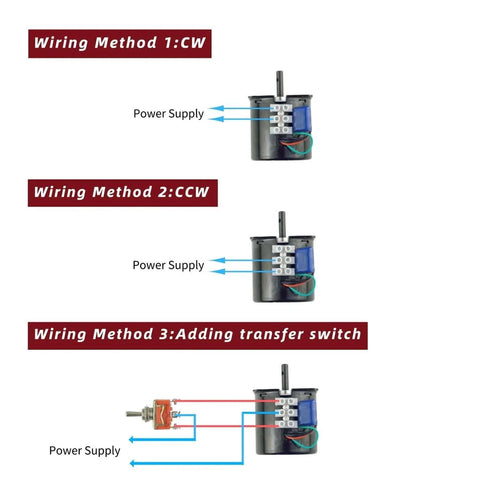

✅ Rotation: CW/CCW (controllable)

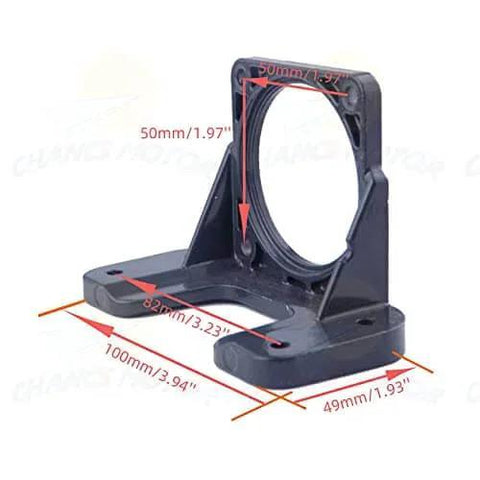

✅ Bracket dimensions: base 49 mm x 100 mm, mounting holes 50 mm apart

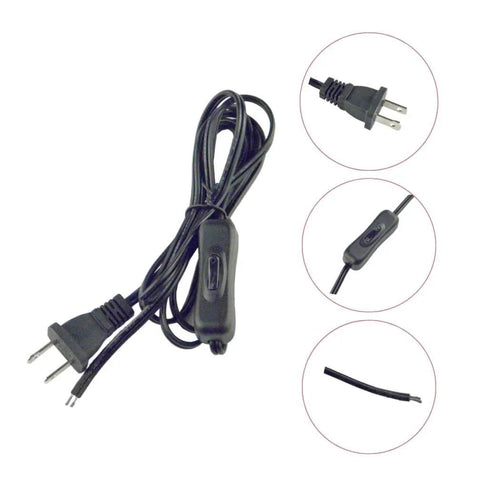

✅ Power cord: 1.5 m, US 2-pin plug, 110V rated power 500W

💡 What is a geared motor with a fixed bracket used for?

It’s handy for compact machines where mounting stability and precise speed matter.

- geared motor for compact machines - stable mounting with fixed bracket - 110V operation and CW/CCW control
