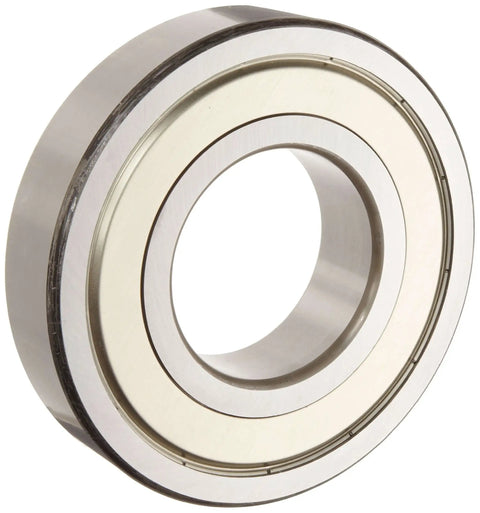

6208ZZC3 deep groove ball bearing, single unit, double-shielded, pressed steel cage, C3 clearance, metric 40 mm bore x 80 mm OD x 18 mm width, 8500 rpm max, 6542 lbf dynamic load

6208ZZC3 deep groove sealed ball bearing, single unit
✔️ 40 mm bore x 80 mm OD x 18 mm width, C3 clearance, 8500 rpm max

This single sealed deep-groove ball bearing is built for high-speed radial and axial loads in gearboxes, pumps, compressors, drives and textile machines. Sold as one unit for metric shafts and applications requiring precise running accuracy.

✅ Model 6208ZZC3, single-row deep-groove design
✅ Double metal shields (ZZ) retain lubricant and block debris
✅ Pressed steel cage for even ball spacing and reduced vibration
✅ C3 internal clearance for thermal expansion and high-speed use
✅ Dimensions: 40 mm bore x 80 mm OD x 18 mm width
✅ Max speed 8500 rpm; dynamic 6542 lbf; static 4024 lbf

💡 What is a sealed deep groove ball bearing used for in high-speed machinery? They support combined radial and axial loads while keeping lubrication in and keeping contaminants out. A handy choice when you need low noise and high running accuracy. - Common in spindles, gearboxes, pumps and compressor shafts; ideal as a sealed ball bearing solution - Helps linear slide unit and drive systems maintain accuracy and reduce maintenance - Consider ceramic hybrid bearings for extreme speeds; C3 clearance aids thermal expansion
