Nachi

6306ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 30x72x19 Bearings


$67.67 CAD
SKU: Kit9667
UPC: 00193019103005
Item: 6306ZZENR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Dimensions: 30mm x 72mm x 19mm/Metric

6306ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6306ZZENR Nachi Bearing with a Snap Ring, the 6306ZZENR inner diameter is 30mm, the 6306ZZENR outer diameter is 72mm, 6306ZZENR width is 19mm.

  • Item: 6306ZZENR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Dimensions: 30mm x 72mm x 19mm/Metric
  • ID (inner diameter)/Bore: 30mm
  • OD (outer diameter): 72mm
  • Width/Height/thickness: 19mm
  • Size: 3 x 72 x 19 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 26,700 N
  • Static load rating Cor: 15,000 N
  • Limiting Speed:
    • Grease Lubrication: 10,000 RPM
  • Equal: 6306 ZZ / 6306 2Z
  • Made in Japan

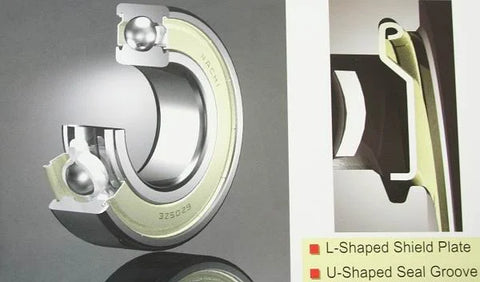

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.


    •
