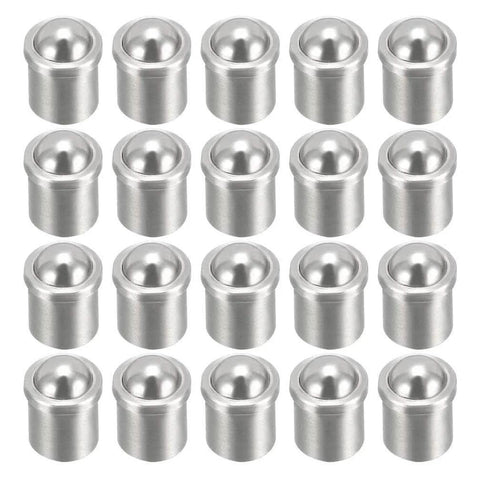

20pcs 6x7mm Ball Plunger Set, 304 Stainless Steel Ball Catch Latch Spring Plungers for Positioning, Indexing, Locking & Smooth Operation in Mechanical Equipment

Spring Loaded Ball Plunger 6x7mm Stainless Steel
✔️ Ball Catch Latch Detent Plunger Press Fit 20 PCS

This is a spring loaded ball plunger made from 304 stainless steel, designed for press-in installation where steady pressure and accurate positioning are needed. These ball catch plungers are commonly used in mechanical equipment, clamps, molds, and automatic machinery for indexing, latching, and clean detent action. Pack size is 20 pieces.

✅ Pack size includes 20 ball plungers
✅ Material 304 stainless steel for corrosion resistance and long service life
✅ Spring loaded ball provides consistent pressure for positioning
✅ Press fit design for fast and simple installation
✅ Used for fixing points, indexing, latching, ejecting, and lifting
✅ Smooth ball action supports repeatable alignment

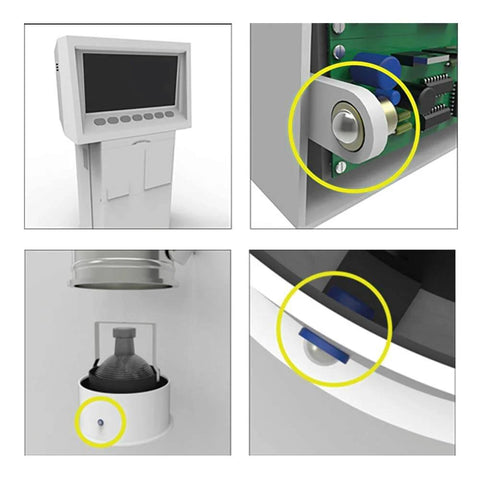

✅ Handy for machinery, fixtures, and automation setups

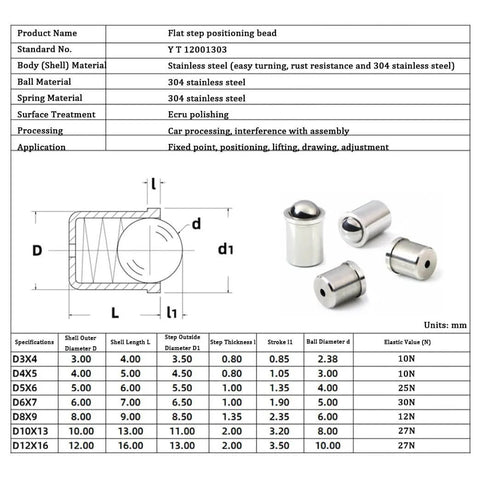

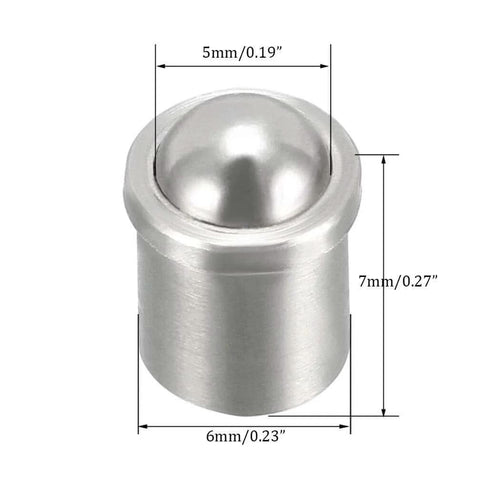

Dimensions
Body diameter 6 mm 0.236 inch
Body length 7 mm 0.275 inch
Ball diameter 5 mm 0.196 inch

💡 Why are spring loaded ball plungers commonly used for latching and positioning in machinery?
They deliver reliable pressure and repeatable alignment without complex mechanisms.

• Spring force keeps parts seated while allowing controlled movement

• Ball detent design enables smooth engagement and release

• Stainless steel construction resists wear and corrosion

• Press fit installation keeps assemblies compact and clean

These stainless steel ball plungers are a handy choice when you need dependable detent action, easy installation, and consistent positioning in mechanical and automated systems.
