7/8-14 Heim Joint Rod End Kit, chromoly steel rod ends with right and left hand thread, 7/8 inch shaft and 3/4 inch head, designed for 1.5 inch OD .120 wall tubing, includes spacers and jam nuts for heavy duty panhard bars, steering and suspension links

7/8 inch Chromoly Heim Joint Rod End Kit for Heavy Duty Link Systems

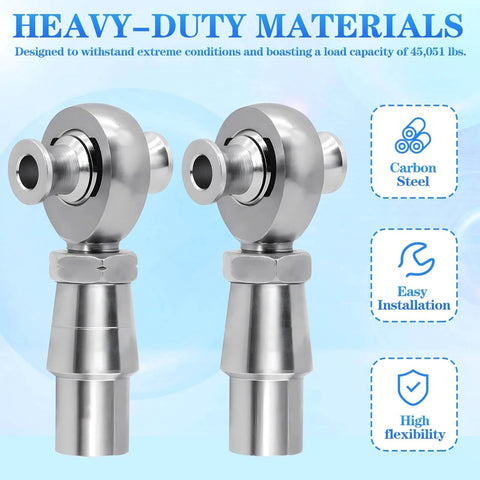

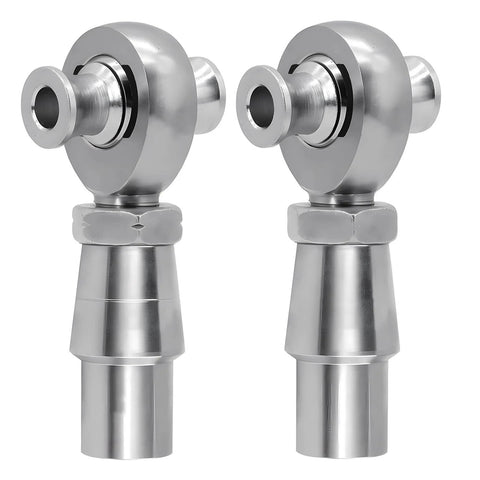

✔️ RH and LH Thread 7/8-14 Shaft with 3/4 inch Head 2 Pack

This 7/8 inch heim joint rod end kit is built for heavy-duty steering, suspension links, and panhard bar setups where strength, precision, and smooth articulation are critical. Designed to weld cleanly into 1.5 inch tubing, these joints are a solid choice for performance vehicles and custom fabrication projects that see real load and movement.

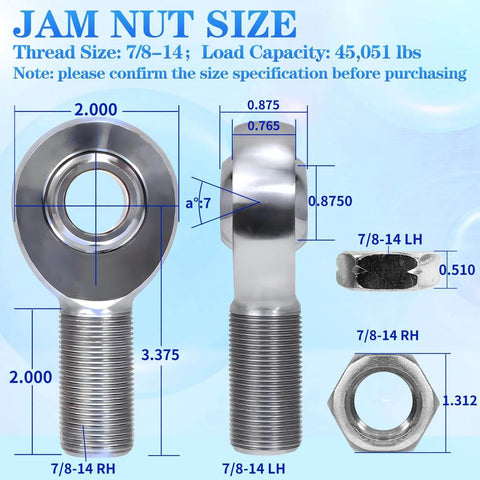

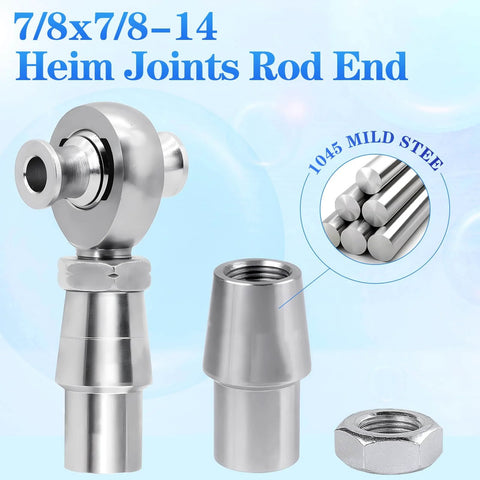

✅ Pack size: 2 pieces total including one right-hand and one left-hand thread heim joint with misalignment spacers and jam nuts
✅ Shaft thread size: 7/8-14
✅ Rod end head bore: 3/4 inch
✅ Material: Heat-treated C4130 chromoly steel
✅ Bearing: Precision ground and heat treated for smooth, consistent motion
✅ High-misalignment design for extreme articulation without binding

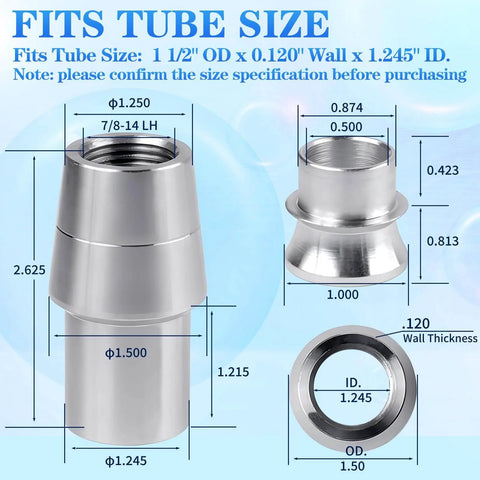

✅ Tube adapter ID: 1.245 inch
✅ Fits tubing size: 1.5 inch OD with 0.120 inch wall

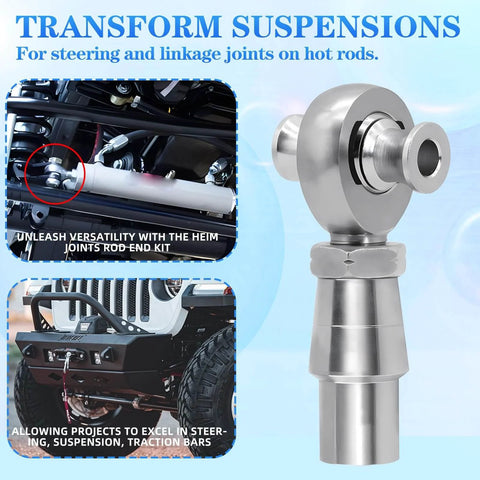

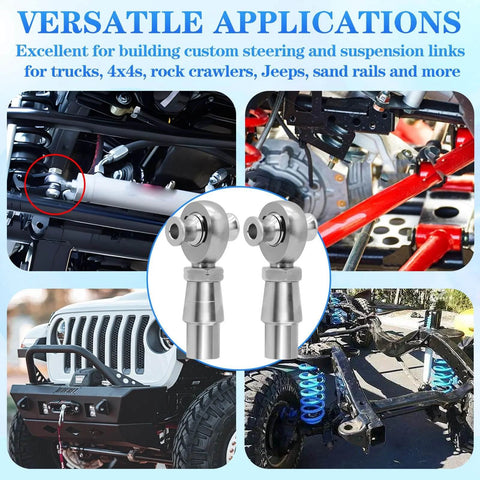

✅ Built for steering links, suspension links, panhard bars, track bars, and chassis connections

Dimensions
Head bore 3/4 inch
Shaft thread size 7/8-14
Tube outer diameter 1.5 inch
Tube wall thickness 0.120 inch
Tube adapter ID 1.245 inch

💡 Why are 7/8-14 chromoly heim joints used in heavy duty panhard bars and suspension links?
They’re designed to handle extreme loads while keeping precise alignment and smooth movement.

• Large diameter shaft increases tensile strength for steering and suspension stress

• High-misalignment bearing design reduces binding during suspension travel

• Precision-ground internals improve feedback, stability, and long-term wear resistance

This heim joint kit is a handy solution when you need serious strength, clean fabrication, and confident control in high-load steering and suspension applications.
