7/8 inch Economy Heim Joint Rod End Kit for Steering and Suspension
✔️ Left and Right Hand 7/8-14 Thread Panhard Rod End Set with Jam Nuts

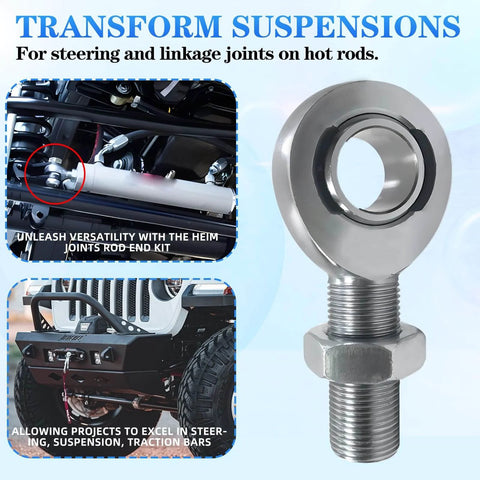

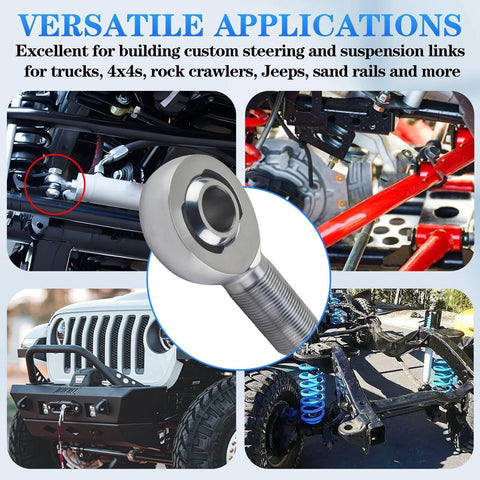

This 7/8 inch economy heim joint kit is built for heavy-duty steering and suspension links where strength, smooth rotation, and easy adjustment matter. It’s commonly used on panhard bars, traction bars, and custom link setups for trucks, 4x4s, rock crawlers, sand rails, and hot rods.

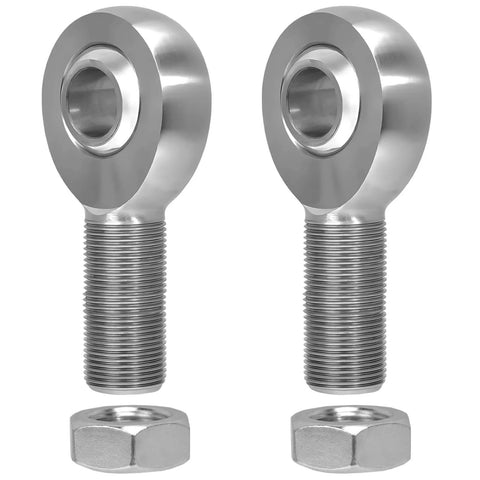

✅ Pack size: 2 pieces total including one right-hand and one left-hand threaded heim joint with matching jam nuts

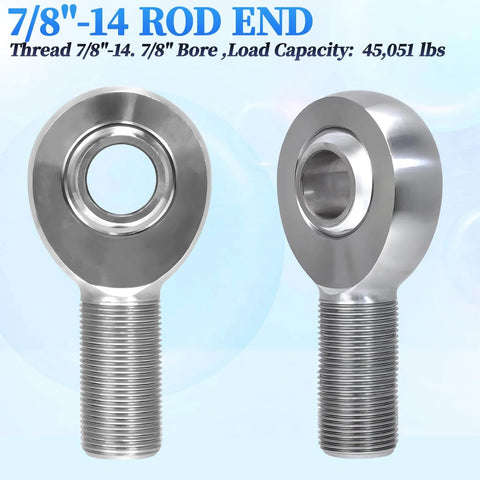

✅ Rod end bore: 7/8 inch
✅ Thread size: 7/8-14

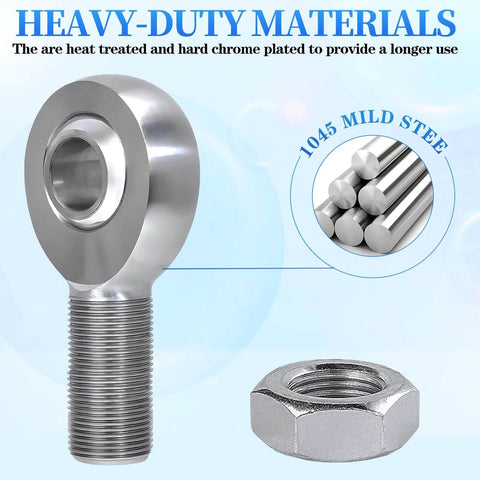

✅ Material: Heat-treated C1045 steel
✅ Finish: Silver zinc plated for corrosion resistance
✅ Precision-ground internals for smooth articulation
✅ Static load capacity: 45051 lb
✅ Weld-ready design for custom fabrication
✅ Common uses: Steering links, suspension links, panhard bars, traction bars, and mechanical linkages

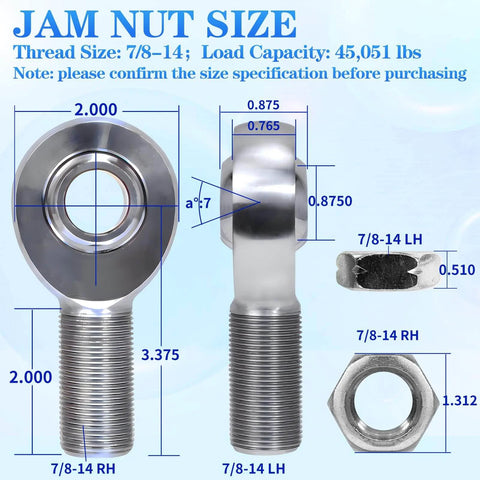

Dimensions
Bore diameter 0.875 inch
Ball width 0.875 inch
Overall width 2.000 inch
Thread size 7/8-14
Thread length 2.000 inch
Center line length 3.375 inch

Jam Nut
Thread 7/8-14
Width min 1.269 inch
Width max 1.312 inch
Height min 0.458 inch
Height max 0.510 inch

💡 Why are 7/8-14 heim joints commonly used in panhard bars and heavy-duty suspension links?
They handle high load while keeping movement smooth and adjustable.

• Large bore and shaft size improve strength and load distribution

• Fine thread pitch helps maintain adjustment under vibration

• Heat-treated steel construction holds up to shock and repeated stress

This heim joint kit is a handy choice when you want strong load handling, clean adjustment, and dependable performance in demanding steering and suspension applications.
