700Mm Belt Drive Linear Actuator Sliding Table Stage Ready To Roll For CNC And 3D Printer Builds DIY Gantry Kit With NEMA 23 Mount Motion Module Motor Not Included
UPC:
✔️ 700mm travel (27.5in), 45mm aluminum frame, NEMA23 mount, single-unit kit
This 700mm belt-drive linear actuator sliding table is pre-assembled with a standard NEMA23 motor mount and coupling for quick installation. Designed to fit your existing stepper motors, it’s the ideal choice for DIY CNC routers, large-format 3D printers, camera sliders, and gantry automation. Note: stepper motor and driver sold separately.

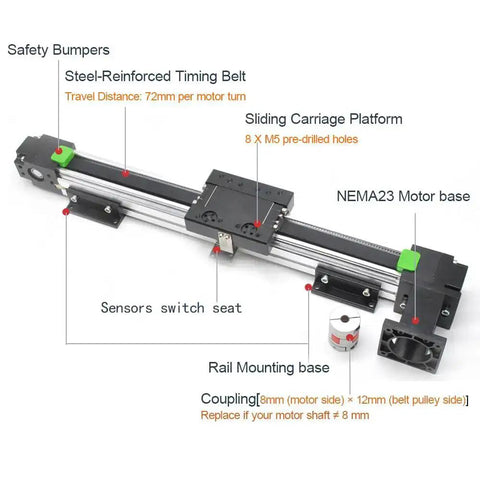

✅ Pre-assembled with a standard NEMA23 motor mount and coupling for quick installation
✅ 700mm travel with a 45mm-wide rigid aluminum profile for stability
✅ Steel-reinforced timing belt delivers smooth, low-noise operation at high speeds
✅ Max speed up to 1500mm/s and positioning accuracy ±0.05mm

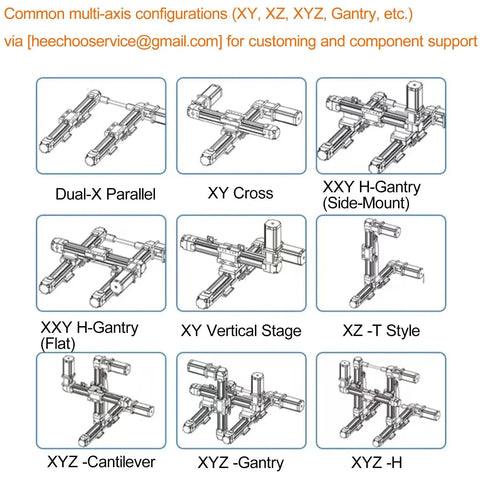

✅ Includes Linear Guide Rail, NEMA23 Bracket, and 12 to 8mm coupling; supports multi-axis (XYZ) builds
💡 What is a belt-drive linear actuator used for in CNC and 3D printer builds? It's a handy, practical motion solution for precise, long-travel moves in DIY setups. - Long travel for gantry systems and large beds - Low-noise, fast movement with a steel-reinforced belt - Easy mounting with standard NEMA23 brackets and couplings - Ideal for DIY CNC routers, camera sliders, and automated pick-and-place rigs
