Nachi

7220CYDUP4 Nachi Angular Contact Bearing 100x180x34 Abec-7 Bearings


$3,836.60
SKU: Kit10908
UPC: 00193019092057
Item: 7220CYDUP4 Angular Ball Bearing
Type: Nachi Angular Ball Bearing
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 180mm x 180mm x 34mm/Metric

7220CYDUP4 Nachi Angular Contact Abec-7 Ball Bearing
100mm x 180mm x 34mm
Made in Japan


7220CYDUP4 Nachi high precision Angular pair of Ball Bearings with 15 degrees contact angle and Polyamide resin cage, pair of ball bearings is 2 duplex bearings, bearings are ABEC-7 (P4) quality and made in Japan.

  • Item: 7220CYDUP4 Angular Ball Bearing
  • Type: Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 180mm x 180mm x 34mm/Metric
  • Bearing Inner Diameter: 180mm
  • Bearing Outer Diameter: 180mm
  • Width/Height/thickness; 34mm
  • Size: 180 x 180 x 34 mm
  • Quantity: One Bearing
  • Made in Japan

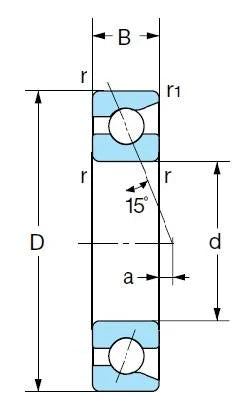

Dimensions
d D B r r1 a
180mm 180mm 34mm 1mm 1.5mm -1.6mm

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep-groove ball bearings. Standard cage materials may be pressed steel, high-strength brass, or synthetic resin. Cage material is dependent on the bearing series and or service condition. Single-row Angular Contact ball bearings can sustain radial, axial or composite loads, however, any axial load must be in one direction. This bearing type is generally used in pairs to handle the induced load resulting from the internal axial force generated by the applied radial load. When mounting two single bearings in adjacent positions, NACHI provides these combination parts (pairs) with preadjusted clearance. Paired combination bearings are matched sets. Combination or paired bearings can be arranged BACK-TO-BACK (DB), FACE-TOFACE (DF), or in TANDEM (DT). DB or DF sets can sustain bidirectional axial loads.
