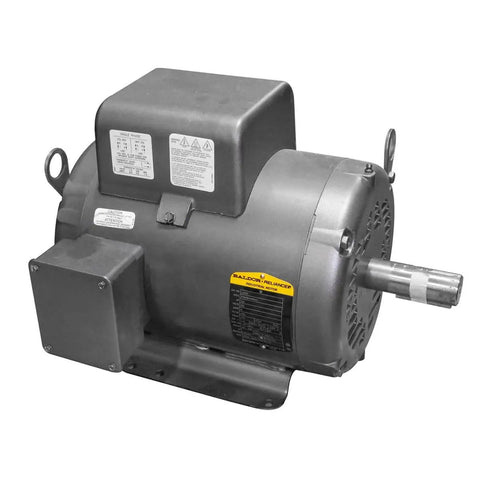

7.5 HP Electric Motor For Compressors, 1725 RPM, 208-230V 31A, NEMA 215T, Keyed Shaft 1 3/8 in Diameter x 3 3/8 in, Service Factor 1.15, Rigid Base, Ball Bearings, Class B Insulation, 1 Year Warranty

7.5 HP 1725 RPM Electric Motor for Air Compressors
✔️ 1PH, 230V, 215T frame, open base, single unit, 1725 RPM

This rugged, single-phase electric motor powers air compressors in workshops and light industrial settings, delivering reliable torque and steady speed for consistent air pressure.

✅ 7.5 HP, 1725 RPM, 1PH, 60 Hz, 230V compatibility

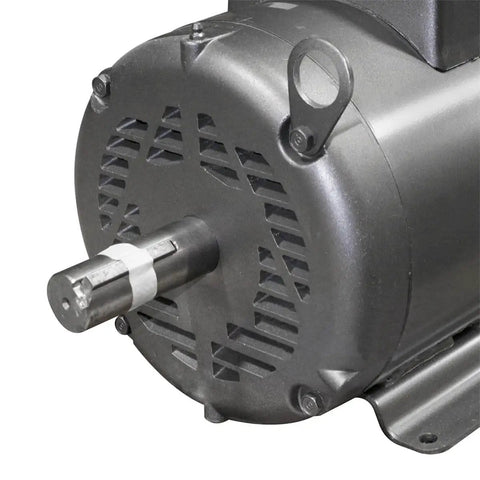

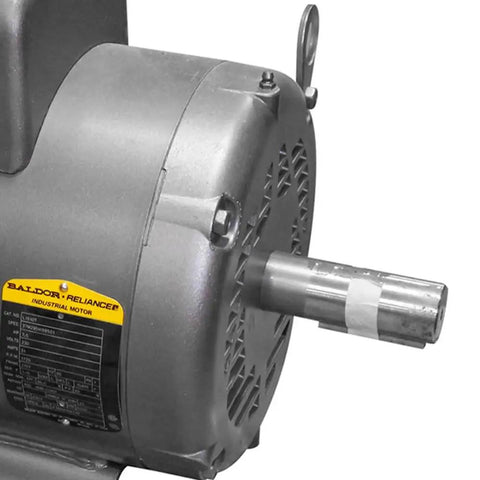

✅ 215T frame, keyed shaft 1 3/8" dia x 3 3/8" long (34.93 mm x 85.73 mm)
✅ Open-frame design with 6307 drive-end and 6206 opposite-end bearings
✅ Class B insulation, service factor 1.15, no overload protection

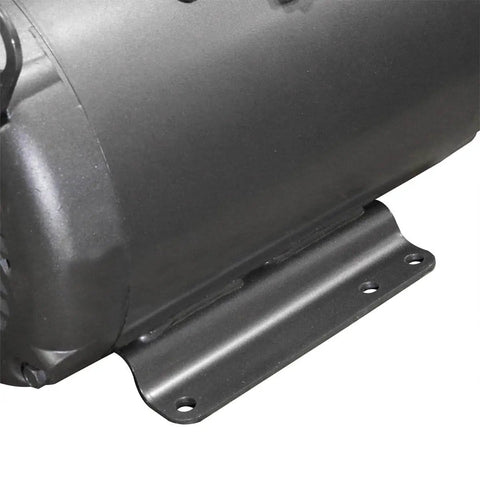

✅ Rigid base mount, reversible rotation

💡 What is an electric motor used for in air compressor systems? This handy guide explains the role and benefits.
- Powers the compressor to generate usable compressed air for tools and equipment.
- Provides reliable torque and stable speed for consistent pressure.
- Works with standard 208-230V single-phase power in many shops.
- Open-frame design promotes easier cooling and maintenance.
