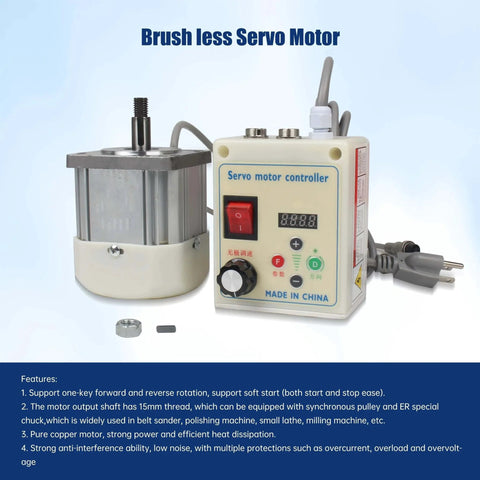

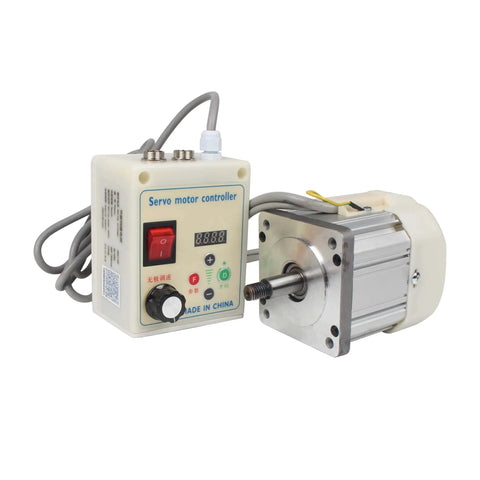

750W Permanent Magnet Brushless Servo Motor Max Speed 6500rpm/min with Servo Motor Speed Controller for Woodworking Machine/Lathe/Drilling and Tapping Machine/Reducer/Belt Sander (110V)

750W Brushless Servo Motor with Speed Controller for Woodworking (Single Unit)

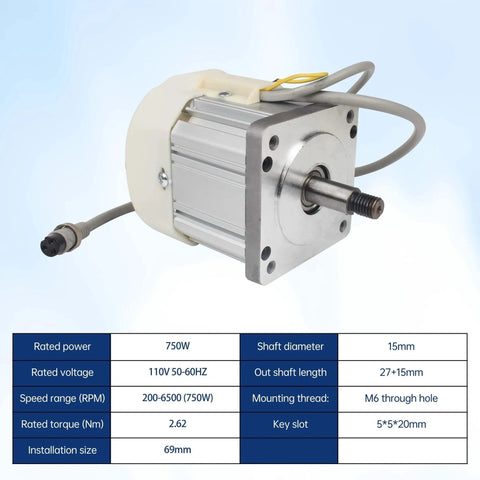

✔️ 110V input, 200-6500 rpm, 15mm shaft, 69mm mounting

The 750W permanent magnet brushless servo motor is designed for woodworking machines, lathes, drilling and tapping stations, and automation rigs. It provides clean, controlled power and protection in dusty environments.

✅ Power: 750W permanent magnet brushless motor with robust control

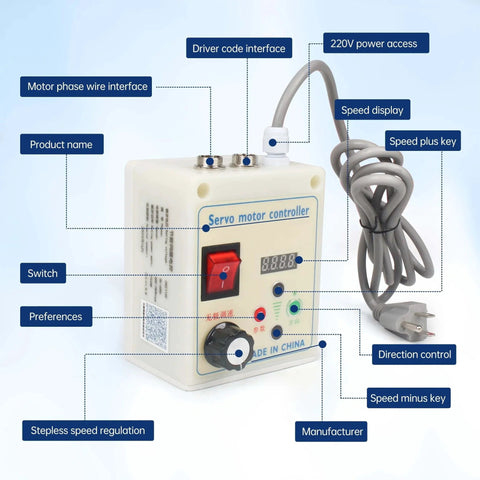

✅ Speed range 200-6500 rpm with knob, remote, soft start

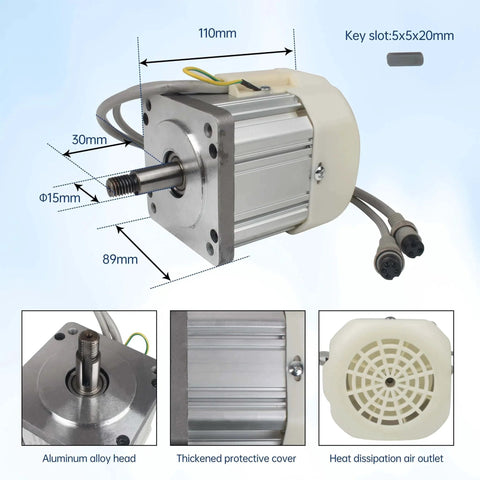

✅ Torque up to 4 Nm, 15 mm shaft, 69 mm mounting footprint
✅ 110V 50-60 Hz input, insulation class F, 8-pole design
✅ Protection: overcurrent, overvoltage, short circuit, locked rotor

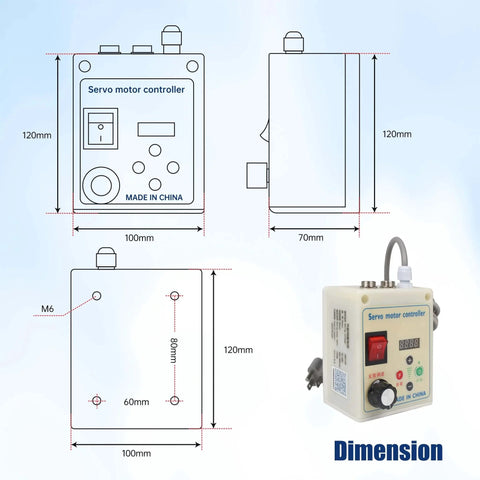

✅ Mounting: 69 mm installation, M6 through holes
✅ Built-in heat dissipation and low noise operation
✅ Fully enclosed, dust-proof housing for reliable shop use
✅ Supports ER collets and common pulleys for easy setup
✅ Applications include belt sander, polishing machines, small lathes, milling

💡 What is a brushless servo motor with a speed controller best used for in woodworking and light automation?

This setup gives precise speed control and robust performance for DIY machines.

- Accurate speed control for lathes, belt sanders, and milling rigs - Low noise operation with efficient heat dissipation - Flexible control options via knob, remote, or PLC interfaces - Rugged, dust-protected housing for workshop environments
