775 Size Permanent Magnet DC Motor With AB Phase Hall Encoder Two Channel Incremental Magnetic Encoder For High Precision Positioning 16PPR Resolution Rugged Brush Motor For Harsh Environments
UPC:

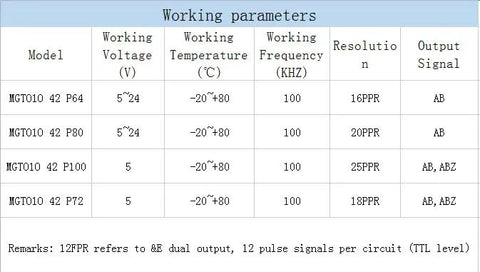

✔️ Shaft dia 5mm; 16PPR; 100kHz; two-channel quadrature output

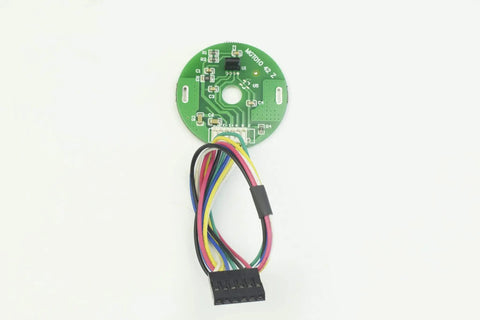

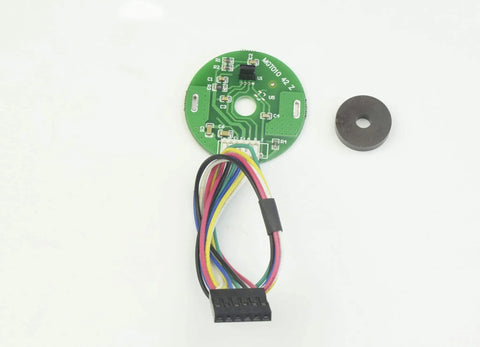

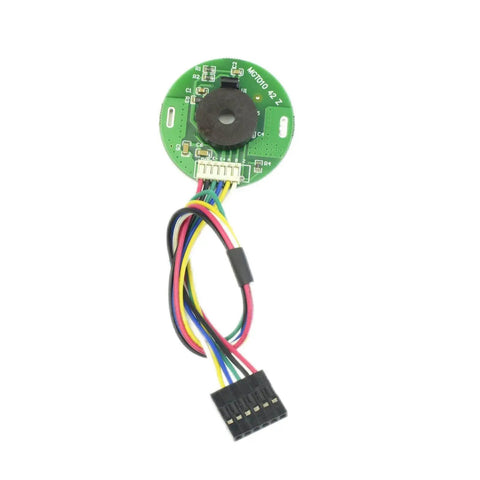

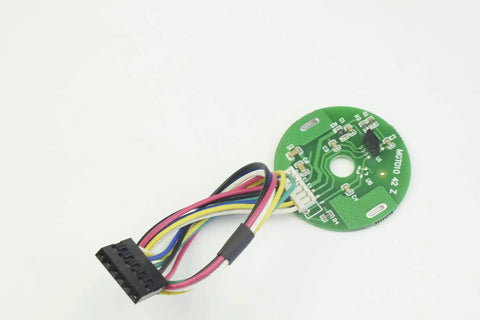

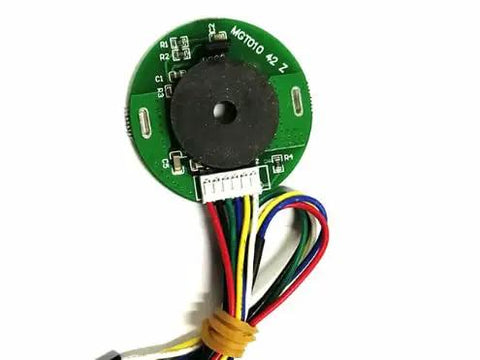

This compact magnetic encoder provides precise position feedback for 775-size DC motors, ideal for robotics, automation, and CNC applications in harsh environments.
✅ Shaft diameter: 5 mm
✅ Resolution: 16 PPR
✅ Working frequency: 100 kHz
✅ Output: 2-channel AB phase quadrature
✅ Includes: 1× Encoder (motor not included)
💡 What is a hall effect encoder on a DC motor used for in precision positioning? It’s handy for closed-loop control by feeding real-time rotor position data to the drive.
- Real-time position feedback improves tracking accuracy in motion control systems
- Handy for precise speed regulation and repeatable indexing in automation
- Magnetic sensing performs reliably in dusty, hot, or vibrating environments
- Easy integration with standard drives using incremental outputs
