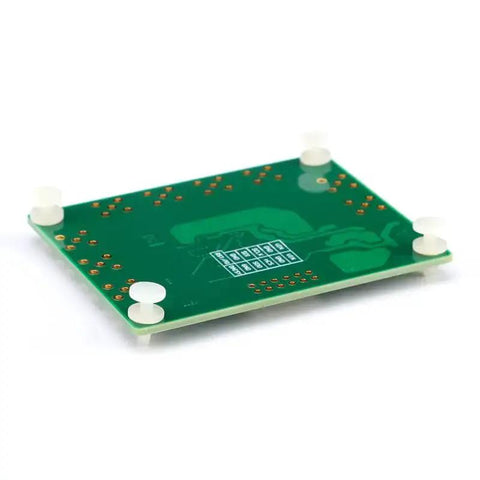

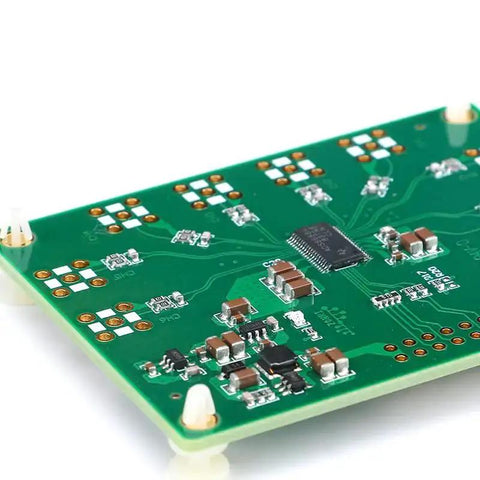

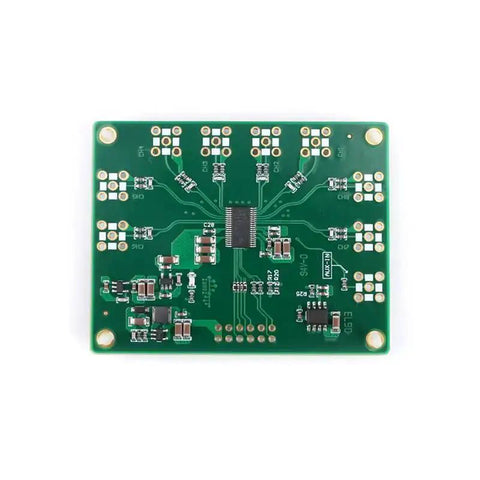

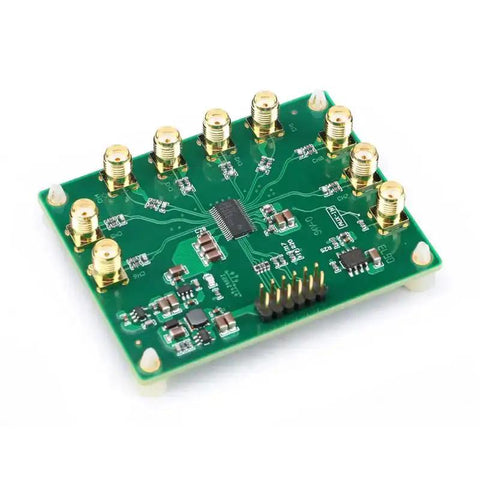

8 Channel SAR ADC Data Acquisition Module With 16 Bit Resolution And 500 Ksps High Speed For Unipolar And Bipolar Inputs ADR444 4.096V Reference FR4 PCB 2.7 To 5.5Vdc Supply
UPC:
✔️ 16-bit ADC, 500kSPS, 1M ohm input, SPI, 4/8-channel mux
The high-precision data acquisition module combines a 16-bit SAR ADC with an integrated front end, designed for industrial automation, process monitoring, and controlled test rigs. It supports unipolar and bipolar inputs, 4-channel or 8-channel multiplexing, a 4.096V reference, and a rugged 2.7-5.5V supply for easy integration with microcontrollers. Pack size: 1 unit.
✅ 16-bit SAR ADC with 4.096V reference for precise conversion
✅ 500kSPS throughput and 92 dB SNR
✅ DNL ±0.5 LSB; INL ±0.75 LSB with low drift
✅ 1 MΩ input impedance; input overvoltage protection ±20V
✅ SPI interface with daisy-chain capability; -40 to 125 °C
💡 What is a handy choice for a high-precision data acquisition module in automation projects?
Choosing the right module helps ensure reliable readings and easy integration.
- 16-bit resolution and 500kSPS throughput provide accurate timing - SPI interface supports daisy chaining for scalable systems - Supports unipolar and bipolar inputs with a robust reference and protection
