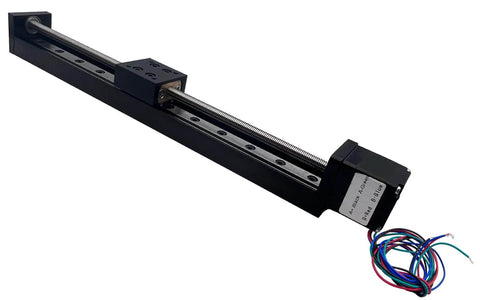

8" Stroke Mini Linear Rail Stage Actuator Effective with NEMA11 Stepper Motor + Square Small Slide Table for DIY CNC Router Parts X Y Z Linear (200MM)

8-Inch Stroke Mini Linear Rail Stage Actuator with NEMA 11 Stepper Motor - Compact Square Slide Table for DIY CNC Router XY Z Linear (200 mm)

✔️ 8-Inch Stroke Mini Linear Rail Stage Actuator with NEMA 11 Stepper Motor - Compact Square XY Z Slide Table for DIY CNC Router Linear (200 mm)

Compact, lightweight, and ready to drop into small projects, this linear rail stage delivers precise, repeatable motion for DIY CNC routers, precision inspection rigs, and optical lab setups. Its handy form fits tight workspaces while still providing solid X, Y, or Z axis travel. Pack size: 1 unit (1 Linear Stage Actuator + 1 User Manual).

✅ Stroke length: 200 mm (8.0 in)
✅ Total length: 276 mm (10.87 in)
✅ Effective travel: 200 mm (8.0 in)
✅ Lead screw: T6x1 (Ø6 mm, lead 1 mm)
✅ Voltage/current: 24 V DC / 0.5 A
✅ Speed: 0-10 mm/s
✅ Motor length: 30 mm (1.18 in)
✅ Motor flange size: 28 mm
✅ Holding torque: 6 N·cm
✅ Load capacity: Horizontal 2.5 kg (5.5 lb); Vertical 1 kg (2.2 lb)
✅ Package includes: 1 Linear Stage Actuator + 1 User Manual
✅ Note: Screw options available T6x2, T6x4, T6x6, T6x12 on request

This handy actuator is ideal for precise positioning tasks where space is tight, delivering smooth motion and reliable performance for DIY CNC projects, automated fixtures, and lab measurement setups.

💡 What is a linear rail stage actuator used for in DIY CNC routers and precision positioning systems?

In short, it provides controlled, linear movement along an axis for accurate alignment and motion control.

- precise axis positioning for CNC routers and precision setups - smooth, repeatable motion with low friction lead screw drive - ideal for compact hobbyist projects and small automation tasks
