800W CNC Spindle For Hobbyists And Pros, 220V And 380V Circular Air Cooled ER11 65mm, Four Bearing High Speed Spindle With Angular Contact Bearings, Axial Preload, Quiet Operation For Smooth Milling And Precise Engraving

Single-Unit 800W CNC Spindle for Precise Milling

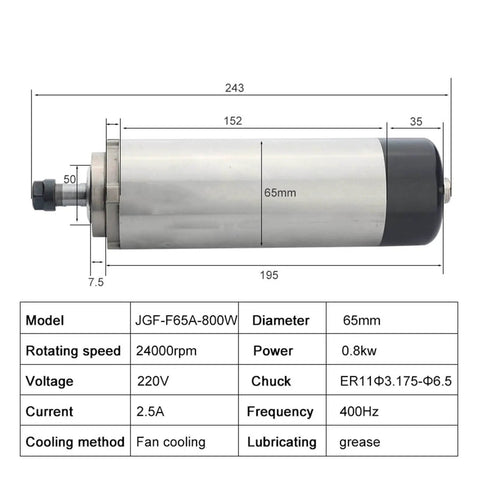

✔️ 0.8 kW spindle, ER11 chuck, 65mm diameter, 0-24000 RPM, single unit

This 800W CNC spindle is a water-cooled, high-speed unit with ER11 chuck, designed for engraving, milling, and routing in hobby shops and professional shops. It operates at 220V or 380V and delivers up to 24,000 RPM with axial preload on four angular-contact bearings for stiffness and quiet operation.

✅ Power: 0.8 kW; Voltage: 220V/380V; Current: 2.5A; Frequency: 0-400 Hz
✅ Speed: 0-24000 RPM; Drive: water-cooled; Four sealed angular-contact bearings with axial preload
✅ Spindle diameter: 65 mm; Chuck: ER11; Lubrication: Grease

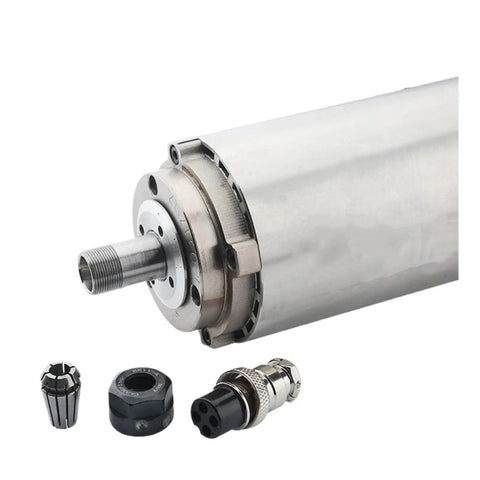

✅ Fixtures: ER11 compatible with multiple tool diameters from 7 mm to 1 mm (standard 4 mm)
✅ Certification: CE

💡 What is a high-speed CNC spindle with ER11 used for in a home workshop?

Here's a handy guide to its common uses in hobby setups. - Handy for precise engraving on wood, plastic, and light metals
- Handy for pocketing, contour milling, and fine feature milling
- Handy for drilling and light milling tasks on CNC routers with a frequency converter
