8 pcs 3/4 inch Heim Joint Rod End Kit, chromoly panhard rod ends with right and left hand thread, includes spacers, tube adapters and jam nuts, heat treated and hard chrome plated for steering, suspension and traction bar applications

3/4 inch Chromoly Heim Joint Rod End Kit for Steering and Suspension
✔️ Right and Left Hand Thread Panhard Rod End Set with Adapters 8 PCS

This 3/4 inch heim joint rod end kit is built for steering, suspension, and traction bar setups that need solid strength, smooth movement, and easy adjustment. It’s commonly used on hot rods and performance vehicles where dependable linkage control and clean fabrication matter.

✅ Pack size: 8 pieces total, 4 right-hand thread and 4 left-hand thread heim joints with tube adapters, misalignment spacers, and jam nuts

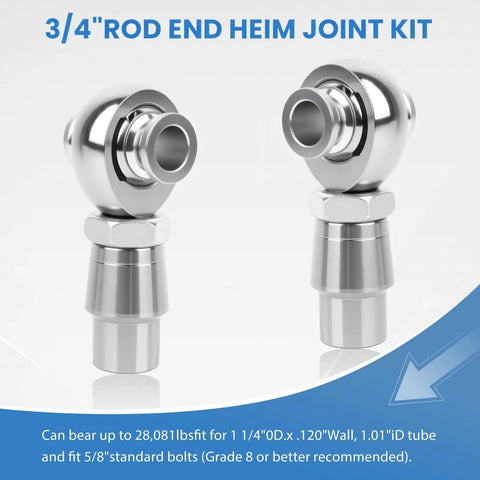

✅ Rod end bore: 3/4 inch
✅ Thread size: 3/4 inch with 16 TPI
✅ Material: Heat-treated chromoly steel
✅ Finish: Hard chrome plated for long service life and wear resistance
✅ Weld compatibility: MIG and TIG friendly for custom fabrication
✅ Precision fit for stable alignment and smooth articulation

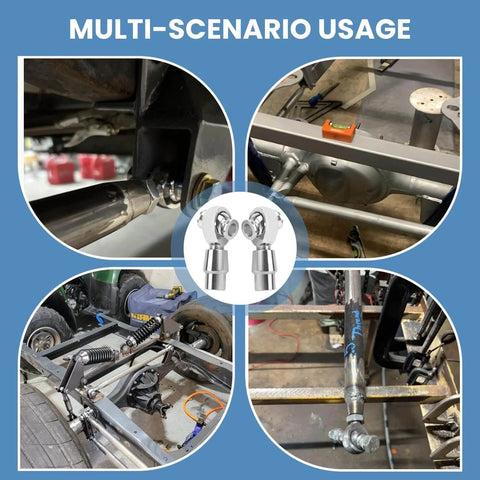

✅ Common uses: Steering links, suspension links, traction bars, panhard rods, and chassis linkages

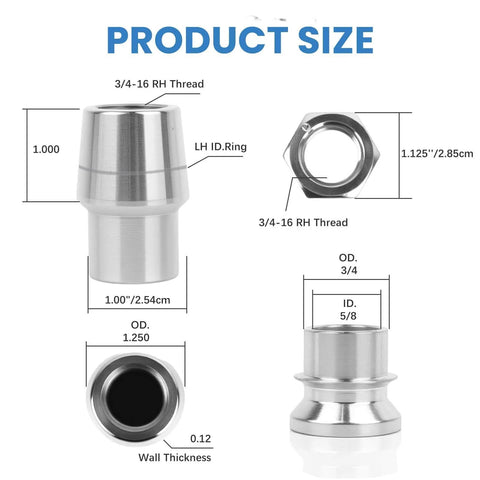

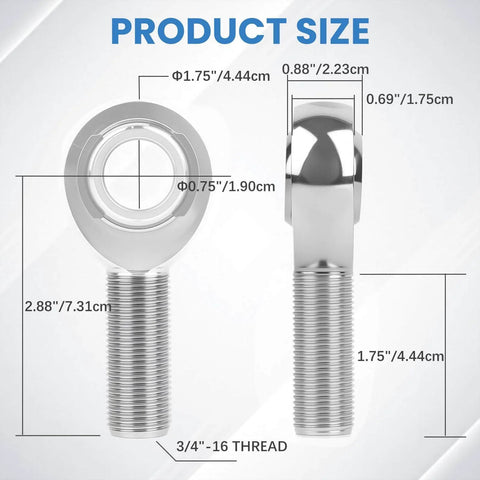

Dimensions
Bore diameter 3/4 inch
Thread size 3/4 inch 16 TPI
Tube outer diameter 1 1/4 inch
Tube wall thickness 0.120 inch
Tube inner diameter 1.01 inch

💡 Why are 3/4 inch chromoly heim joints a go-to choice for steering and suspension systems?
They deliver strength, adjustment range, and smooth movement in performance builds.

• Heat-treated chromoly handles shock loads and repeated stress without flexing

• Misalignment spacers help maintain smooth articulation through suspension travel

• Right and left hand threads allow fast on-vehicle adjustment without removal

This heim joint kit is a handy pick when you want strong linkage control, clean installation, and reliable performance in demanding steering and suspension applications.
