9 Inch Stroke Light Duty Linear Actuator For DIY Projects With 200 Pounds Dynamic Push Pull Force And 400 Pounds Static Rating, 12V DC, IP54 Protection, Aluminum Shaft And Tube, 0.3 Inches Per Second Speed Firgelli Automations

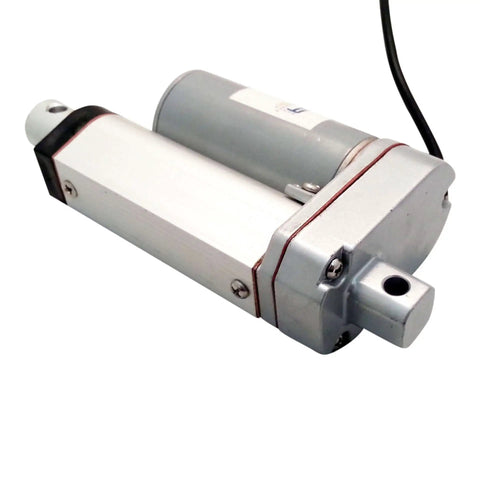

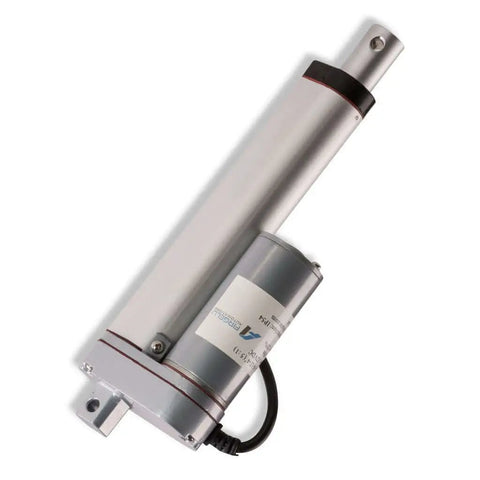

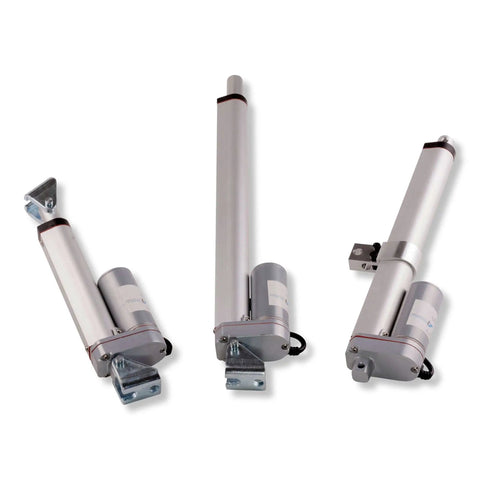

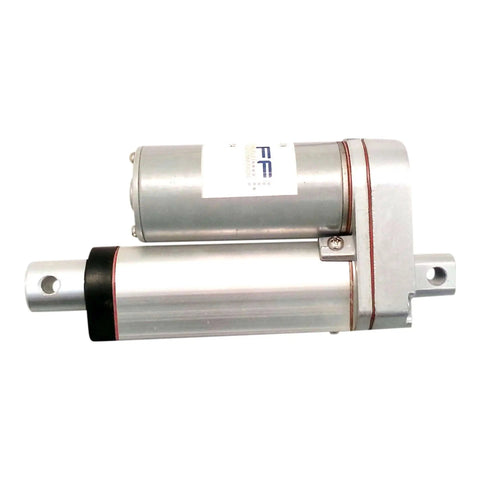

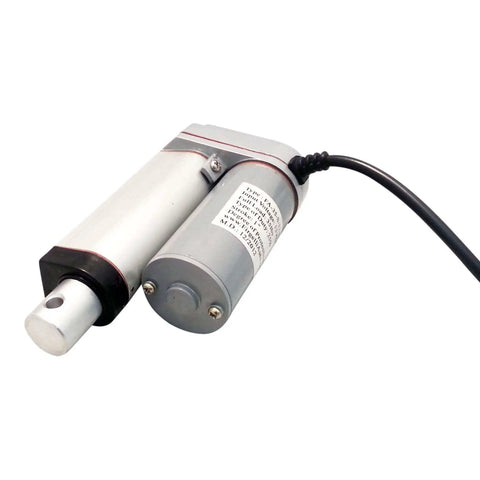

9-Inch Stroke Light Duty Linear Actuator - Single Unit
✔️ 12V DC, IP54, 0.3 in/s, 200/400 lb, aluminum shaft

This compact rod-style actuator is a lightweight linear slide unit designed for smooth, reliable straight-line motion in DIY projects. Use it for motorized cabinets, table lifts, display risers, hatches, and other small automation tasks.

✅ 200 lb dynamic push/pull
✅ 400 lb static rating
✅ 0.3 in/s at full load
✅ 12V DC motor, max 5 A draw
✅ Acme screw drive, 30:1 gear ratio
✅ IP54 protection, aluminum shaft and tube

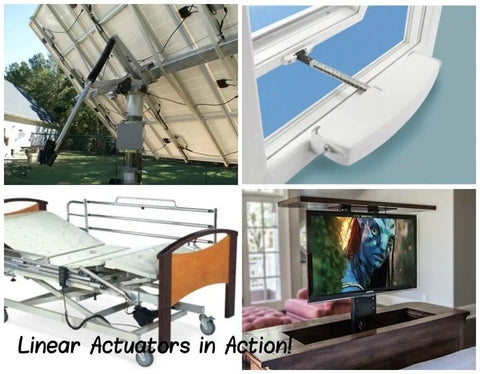

💡 What is a linear actuator used for in DIY projects? It's a handy device that converts electrical energy into straight-line motion, letting you lift, push, or pull loads with precision and control. - handy for lifting tables, cabinets, and display shelves - IP54 protection helps in dusty or damp environments - screw-drive systems deliver smooth, quiet travel for small automation tasks
