Adjustable 3/8-24 Thread Turnbuckle with 3/8 Bore Heim Joints Rod End Set, Right and Left Hand Female Threads with Jam Nuts, Heavy Duty Carbon Steel for Precision Motion Control and Mechanical Adjustment

Adjustable 3/8-24 Thread Turnbuckle Rod End with 3/8 Inch Bore
✔️ RH and LH Female Heim Joints for Precision Motion Control

This adjustable turnbuckle rod end assembly is made for fine alignment and smooth motion in compact mechanical systems. It combines right and left hand female heim joints with jam nuts, letting you dial in length and preload quickly for stable, vibration-resistant connections in machinery and automation setups.

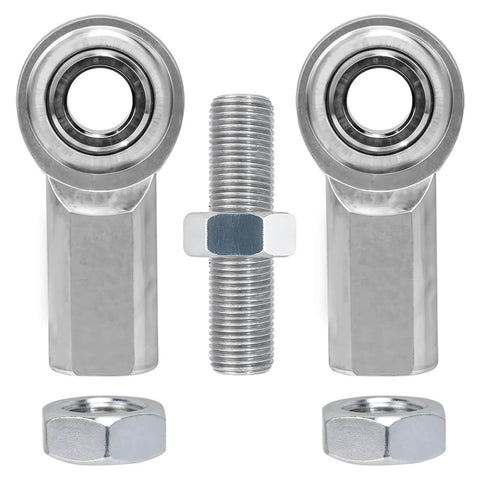

✅ Pack size: 1 set, includes RH and LH female rod ends with jam nuts

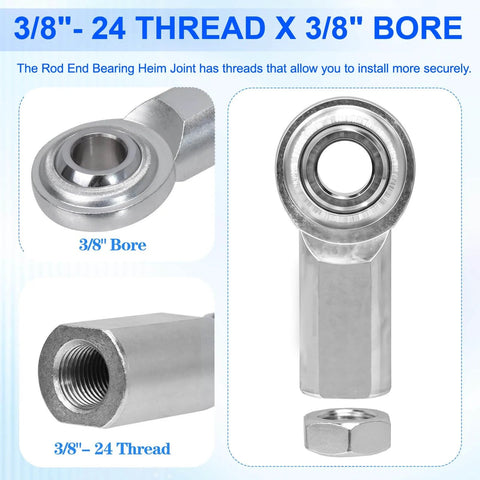

✅ 3/8-24 thread with 3/8 inch bore for compact linkage builds
✅ Precision-machined threads help resist loosening under vibration
✅ High-strength steel construction with corrosion-resistant finish
✅ Smooth articulation with controlled resistance for stable operation
✅ Easy setup using included jam nuts, no special tools needed

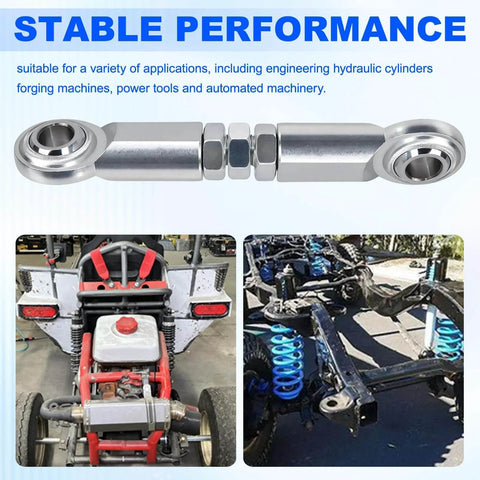

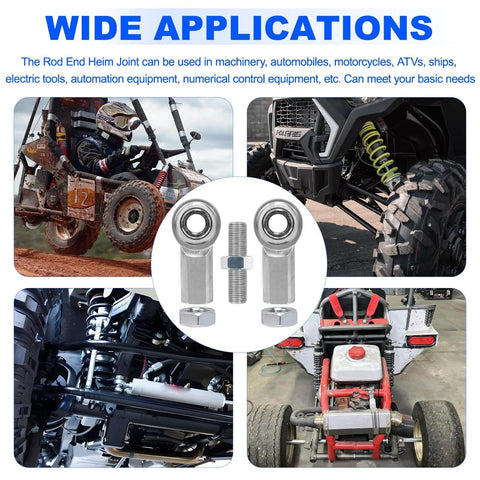

✅ Handy for hydraulic cylinders, machine tools, power tools, and automated equipment

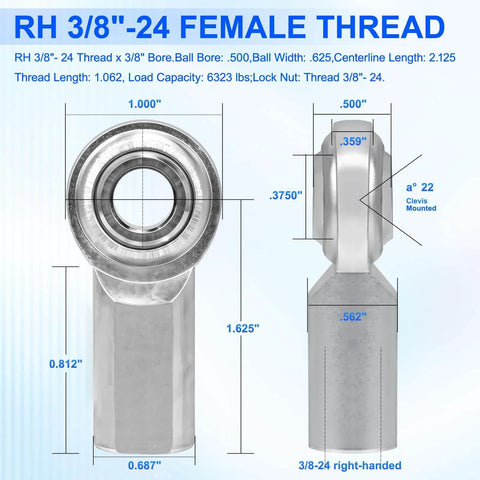

Dimensions and Specifications

Rod End
Thread Size 3/8-24
Thread Direction RH and LH female
Bore Diameter 0.375 in
Ball Bore 0.500 in
Ball Width 0.625 in
Centerline Length 2.125 in
Thread Length 1.062 in
Static Load 6,323 lbs

Jam Nut
Thread 3/8-24

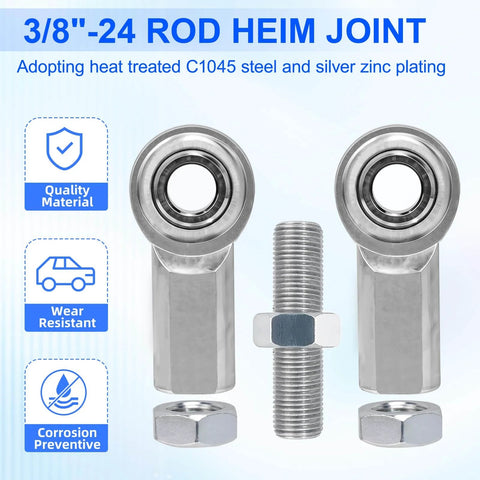

Material and Finish
Body Carbon steel
Finish Silver zinc plated

💡 Why use an adjustable turnbuckle with female heim joints in high-vibration mechanical systems?
Adjustable turnbuckles with female rod ends are used when precise length control and vibration resistance are critical.

• RH and LH threads allow quick length changes without disassembly

• Precision threads reduce backlash and help prevent loosening

• Spherical joints maintain alignment under angular movement

• Jam nuts lock settings to keep motion consistent over time

This setup is a handy choice when you need clean adjustability, steady control, and reliable performance in compact motion assemblies.
