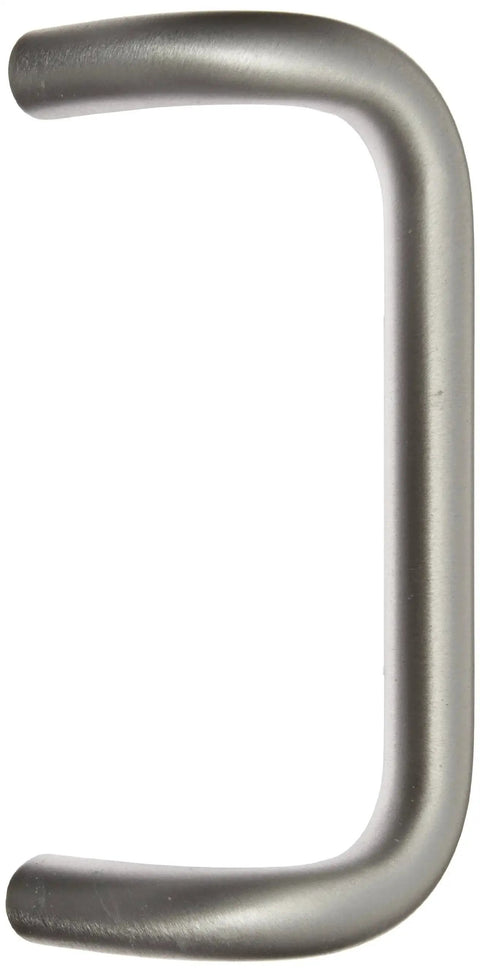

Aluminum 90-Degree Offset Door Pull With Through-Bolt Mounting For 1-3/4 Inch Doors, 9 Inch Center-To-Center, 10 Inch Overall Length, 1 Inch Diameter, 3-1/2 Inch Projection, 2-1/2 Inch Clearance, Clear Anodized Finish, ANSI A156.6 J402
UPC: 00193019492871
✔️ 1 in dia, 9 in ctr-to-ctr, 10 in overall, 3.5 in proj
This aluminum 90-degree offset door pull is designed for doors that are 1-3/4 in thick (44.45 mm). It features a clear anodized finish for corrosion resistance and a through-bolt mounting style for secure installation on standard doors. It meets ANSI A156.6: J402 specifications and is ADA compliant, with mounting hardware included. Pack: single pull. Key dimensions include 9 in (229 mm) center-to-center, 10 in (254 mm) overall length, 1 in (25 mm) diameter, 3.5 in (89 mm) projection, 2.5 in (63.5 mm) clearance, and an offset of 4 in (101.6 mm).
✅ 9 in (229 mm) center-to-center
✅ 10 in (254 mm) overall length
✅ 1 in (25 mm) diameter
✅ 3.5 in (89 mm) projection
✅ 2.5 in (63.5 mm) clearance
✅ 4 in (101.6 mm) offset
✅ Through-bolt mounting for 1-3/4 in (44.45 mm) thick doors
✅ Clear anodized finish
💡 What is a 90-degree offset door pull and why choose aluminum for ADA doors?
Handy overview: it offers a clean, reachable grip while meeting accessibility standards.
- Through-bolt mounting simplifies installation on 1-3/4 in (44.45 mm) thick doors
- 90-degree offset provides ergonomic reach when closing the door
- Clear anodized aluminum resists corrosion in indoor/outdoor use
- ANSI A156.6: J402 and ADA compliance help ensure universal accessibility
