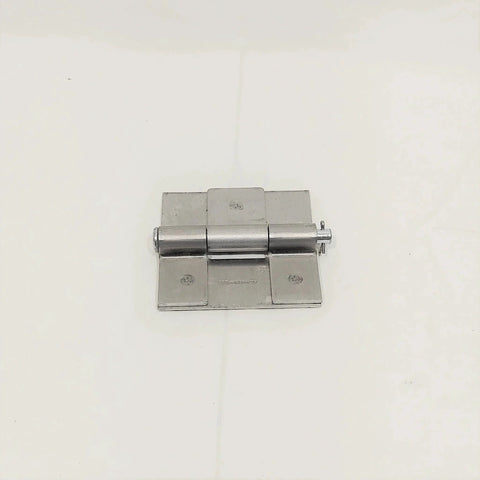

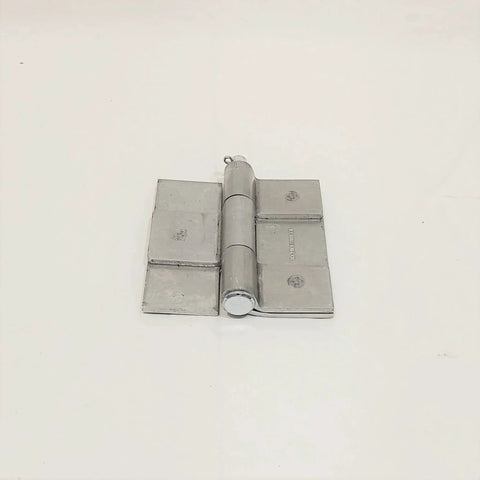

Aluminum Trailer Door Butt Hinge 5 By 4.75 Inch Heavy Gauge Welded Removable Pin With Cotter Pin

Aluminum trailer door hinge with heavy gauge welded design
✔️ 5 in W x 4.75 in L, 0.188 in thick; removable pin; single unit

This aluminum butt hinge is designed for trailer rear doors, ramps, and cargo compartments. It's a reliable, heavy-duty hinge used on horse, cargo, and utility trailers. The hinge supports welding or drilling for mounting, and features a removable pin for easy maintenance.

✅ Aluminum mill finish body; plated steel cotter pin with removable pin
✅ Dimensions: 5 in W x 4.75 in L x 0.188 in thick (127 mm x 120.65 mm x 4.78 mm)
✅ Mounting: weld or drilled-hole installation
✅ Made in USA; heavy gauge construction for trailer doors

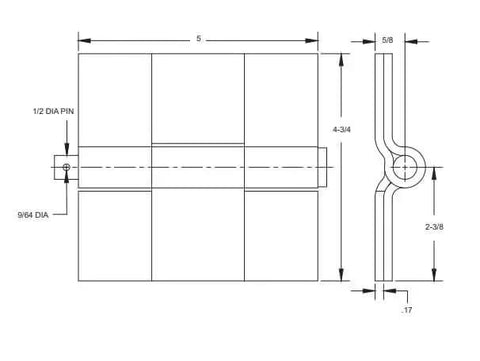

Dimension	Value
Width	5 in (127 mm)
Length	4.75 in (120.65 mm)
Thickness	0.188 in (4.78 mm)

💡 What is an aluminum trailer door hinge with removable pin used for? This handy item secures rear doors, ramps, and cargo access on trailers while allowing quick pin removal for service.
- handy for quick pin removal during maintenance - durable aluminum body, plated steel pin - mounting options include welding or drilled holes
