Automatic Lubricating Oil Pump 110V 1L With Electromagnetic Lubrication System, Digital Control, Dual Digital Display And Pressure Gauge, Fully Automatic Timing 1-60 Seconds And 3-399 Minutes, Low Noise, Beefy Efficiency For CNC Machines

110V Automatic Lubrication Pump with Electromagnetic System
✔️ 1 L reservoir, digital timing 1-60s, 3-399min intervals, 28W

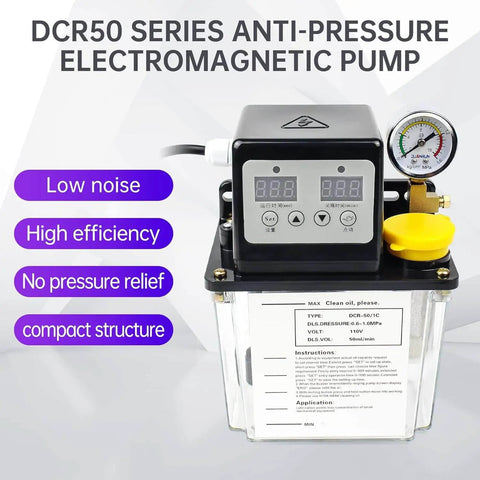

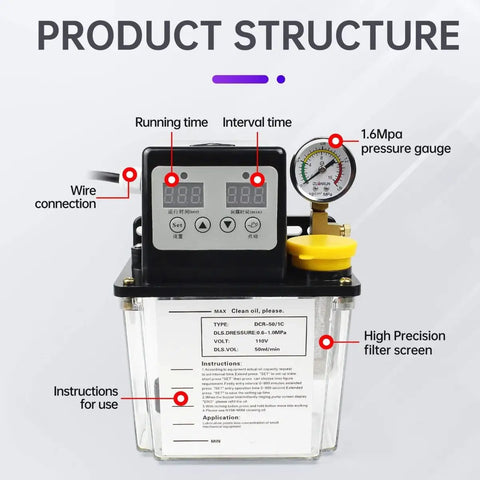

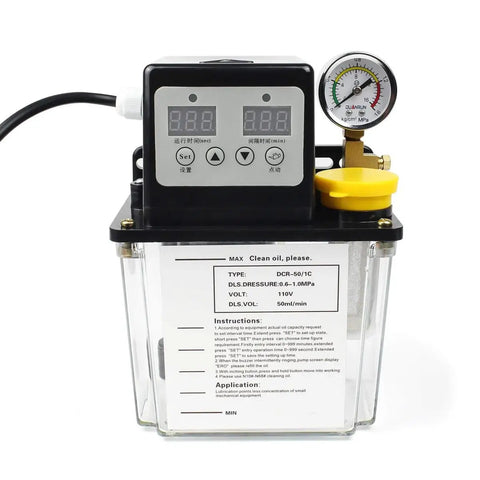

The DCR50 series automatic lubricating oil pump is a compact, fully automatic lubrication system designed for CNC machines and other precision equipment. It uses an electromagnetic pump with digital control, dual displays, and a pressure gauge to deliver timed, quantifiable oil doses, reducing manual maintenance and ensuring consistent lubrication in machine tools. This is a single-unit package ready for direct installation on machine tools, gears, guide rails, and chain lubrication.

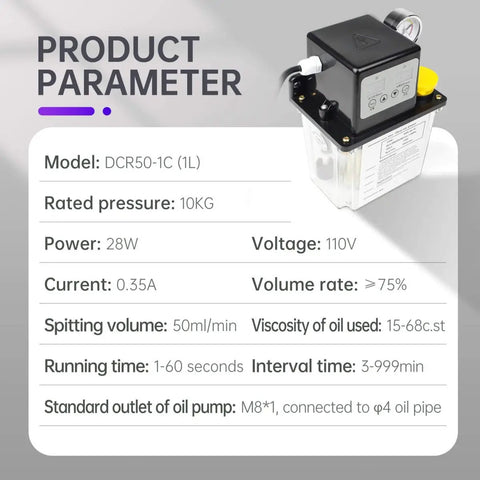

✅ Power: 28W, Voltage: 110V, Current: 0.35A, Rated pressure: 10 KG, Volume rate: ≥75%
✅ Spitting volume: 50 ml/min, Oil viscosity: 15-68 cSt, Running time: 1-60 s, Interval time: 3-999 min

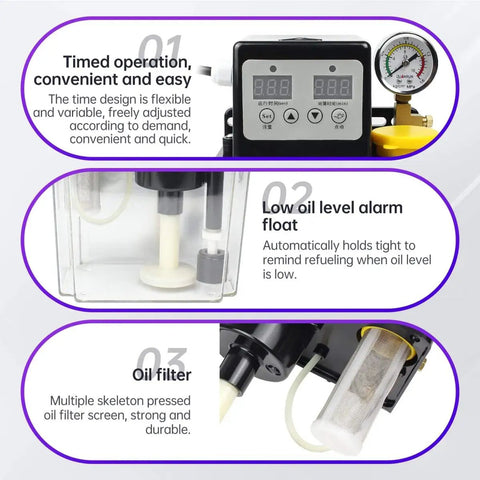

✅ Outlet: M8×1, tubing φ4 oil pipe connection; Low oil level alarm float

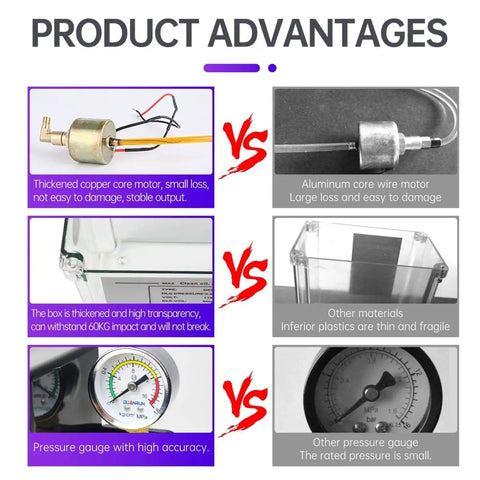

✅ All-copper motor, low-noise operation, compact design for CNC and machinery lubrication

💡 What is an automatic lubricating oil pump used for in CNC machines and automation?

They provide hands-free, timed lubrication to reduce wear and downtime.

- Handy for CNC machines, gears, rails, and chain lubrication - Helps maintain consistent lubrication when operators can't reach the work area - Enables precise dosing with adjustable run time and interval time - Reduces maintenance, extends tool life, and lowers operating noise
