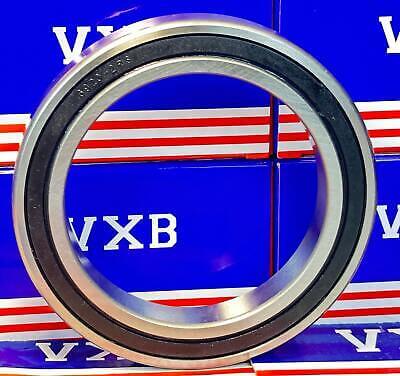

B541-2RS Extra Light Airframe Control Bearing 1.0625"ID x 1.5" OD x 0.281"inch
UPC: 00193019347829
B541-2RS Extra Light Airframe Control Bearing
✔️ 1.0625" ID x 1.5" OD x 0.281" Width - Full Complement - Open Type
The B541-2RS is a single-row, extra light-duty control bearing designed for torque tube and linkage systems in non-aircraft applications. With 32 balls and a full complement design, it offers stable, low-friction movement under moderate load conditions.
✅ Pack size: 1 bearing
✅ Inner diameter: 1.0625"
✅ Outer diameter: 1.5"
✅ Width: 0.281"
✅ Type: Extra light duty, single-row radial
✅ Closures: 2 Rubber seals ( 2RS )
✅ Ball count: 32
✅ Radial load capacity: 5,000 lbf
✅ Thrust load capacity: 2,200 lbf
✅ Lubrication: Preservative-treated
✅ Material: Chromium-alloy, high carbon steel (non-cadmium plated)
✅ Use: Ideal for mechanical linkages, torque tubes, and light-duty motion systems (not for aircraft use)
Dimensions Table (Inches):
| Inner Diameter | Outer Diameter | Width |
|---|---|---|
| 1.0625" | 1.5" | 0.281" |
💡 Why use full complement bearings in light-duty control systems?
They’re compact, quiet, and reliable under directional motion.
-
More balls increase contact area and load capacity
-
Ideal for oscillating or controlled linkage movement
-
Preservative-treated for storage and non-corrosive handling
-
Great for light-load, high-precision assemblies
Engineered for balance, not flight - the B541-2RS delivers smooth control for non-aircraft setups. Add it to your system and enjoy reliable, low-friction motion.
