Beefed Up 1/10 Scale Brushless RC Motor And 60A ESC Combo With 4370KV F540 Sensorless Motor, Programming Card, IP65 Waterproof And Dustproof For All Weather Off Road RC Cars And Trucks
UPC:

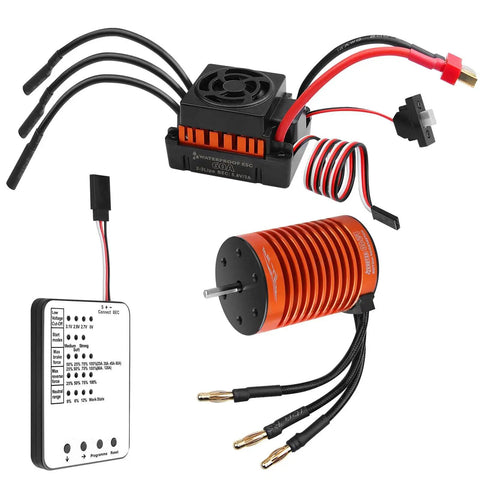

✔️ 4370KV sensorless F540 motor + 60A waterproof ESC combo

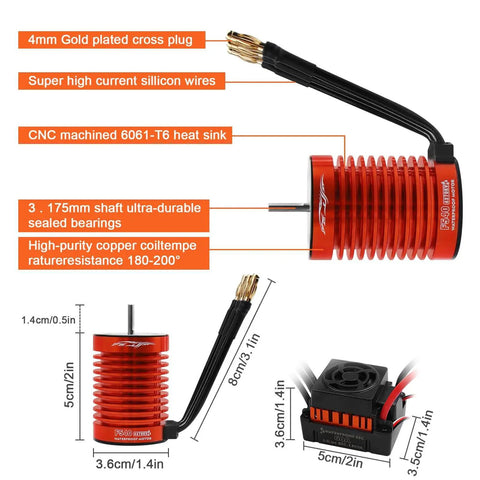

This 1/10 scale brushless motor and ESC combo pairs a high-torque sensorless F540 4370KV motor with a 60A waterproof ESC, designed for all-weather off-road driving. It can be used together or apart on most 1/10 RC cars and trucks. Dimensions:
| Component | Dimensions | Inches |
|---|---|---|
| Motor Ø x L | 36mm x 50mm | 1.42" x 1.97" |
| Shaft Ø x Length | 3.175mm x 15mm | 0.125" x 0.59" |
| ESC Size | 50 x 35 x 36mm | 1.97" x 1.38" x 1.42" |
| Weight | 180g | 6.3 oz |
This kit brings together a robust F540 4370KV sensorless motor and a 60A waterproof ESC, built to handle dust and rain on muddy off-road tracks. It’s compatible with most 1/10 scale RC cars and trucks and includes a programmer card to tune performance. For hobbyists chasing solid baseline power with weather-resistant reliability, this combo is a practical upgrade path. It is also a solid foundation for projects considering sealed ball bearing upgrades, ceramic windings, or other high-performance refinements in the RC arena.
✅ F540 Brushless Motor: 4370KV, 4 poles 12 slots for high torque and RPM

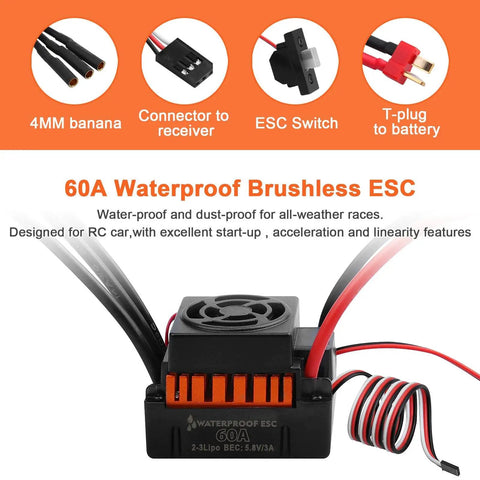

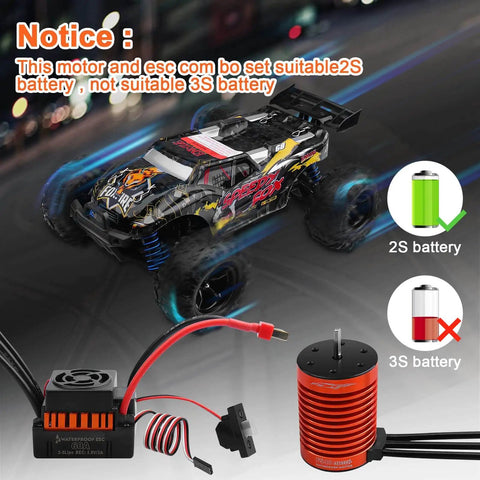

✅ 60A Waterproof ESC: all-weather, strong heat dissipation, 2S battery recommended

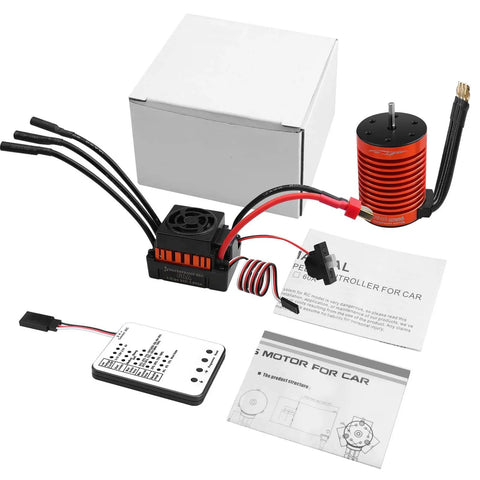

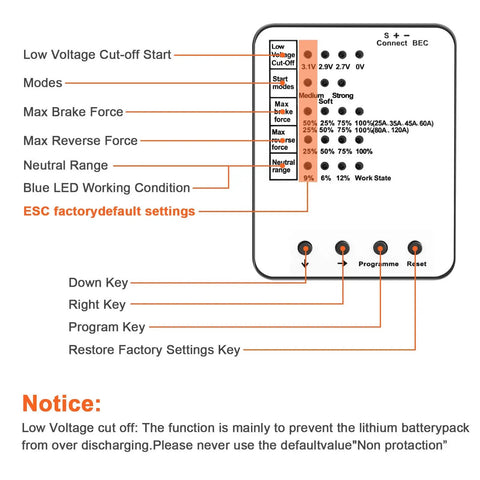

✅ ESC Programmer Included: adjust braking force and reversing levels
✅ Protection Features: low voltage cut-off, over-heat, throttle signal loss, motor blocked protection
💡 What is a brushless motor and ESC combo used for in 1/10 scale RC cars?
This handy power package is used to drive wheels with controlled power and protection on rugged tracks.

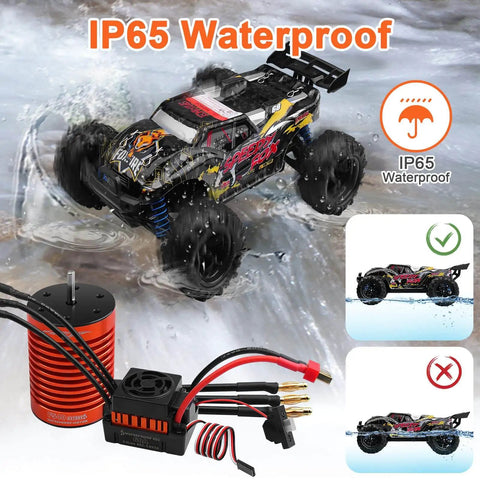

- Powerful 4370KV motor delivers strong torque at 2S batteries - 60A ESC provides smooth start-up and linear response - ESC programming card lets you tune braking and reversing for handling - IP65-rated sealing keeps electronics safe from water and dust
