Beefy 12 Volt Boat Trim Tab Actuator With Two And A Quarter Inch Stroke And Three Eighths Inch Mounting Hardware Fits Lenco XD Series Electric Trim Tab System Extreme Duty Marine Kit
UPC:
✔️ Stroke 2.25 in (5.72 cm), 12V motor with 6' leads (1.83 m)

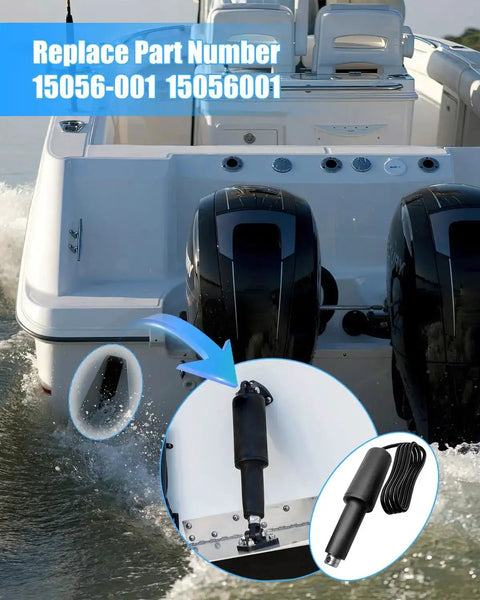

This 12V boat trim tab actuator is a robust high-torque marine device designed to drive XD Series trim tabs. It serves as a direct replacement for Lenco actuators (part numbers 15056-001 and 15056001) and is ideal for ski boats and tow boats needing precise trim control across sea conditions.
This heavy-duty actuator is designed to fit XD Series and related heavy-duty trim tab kits, offering reliable performance in rough water and during aggressive maneuvering. It’s a 1-pack replacement option built to withstand marine conditions and deliver consistent results.

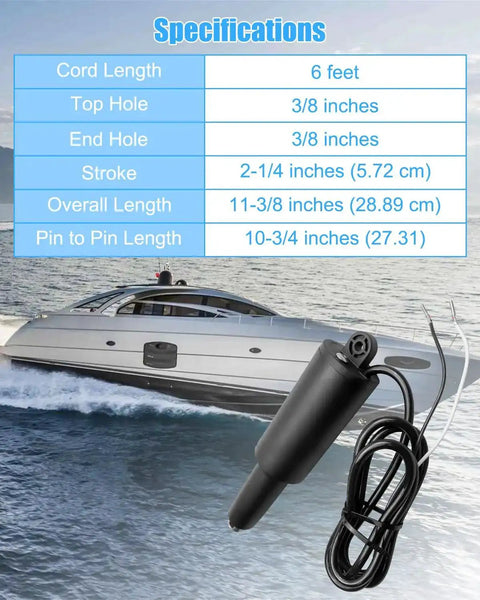

✅ Stroke length 2.25 in (5.72 cm)
✅ Motor: 12V with 6' leads (1.83 m)
✅ Wire length: 6' (1.83 m)
✅ Top hole: 3/8 in (0.375 in)
✅ End hole: 3/8 in (0.375 in)

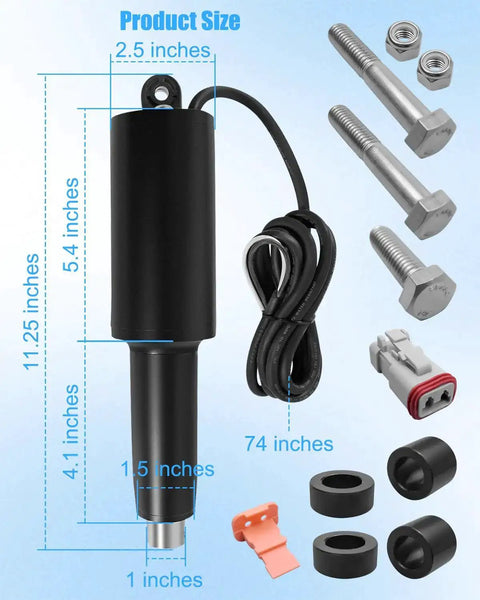

✅ Overall length: 11-3/8 in (28.89 cm)
✅ Pin-to-pin length: 10-3/4 in (27.31 cm)
✅ Upper housing diameter: 2-1/2 in (6.35 cm)
💡 What is a 12V boat trim tab actuator used for in high-performance watercraft?
This handy device helps adjust trim tabs to improve stability and planing at speed.
- Handy for stabilizing boats at speed
- Improves balance and planing with XD Series trim tabs
- Durable high-torque motor for demanding seas
- Ideal for ski boats and tow boats in rough water
