Beefy 12V DC Electric Stroke Linear Actuator With Mounting Bracket, 900N Lift, 10 Inch Stroke, 10mm Per Second Speed, IP54 Dust And Water Resistant Aluminum Alloy Motor For Auto Car RV Electric Door Opener

Single 12V DC Linear Actuator with Bracket, 900N
✔️ 900N lift, 10 in stroke, 12V DC, IP54, mounting bracket

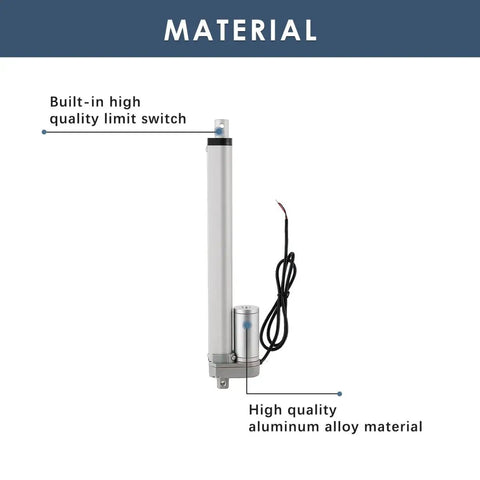

This rugged, heavy-duty 12V DC electric stroke linear actuator is built from aluminum alloy and designed for tough use in autos, RVs, farms, and industrial setups. It delivers up to 900N of push/pull force and includes a mounting bracket for quick, secure installation. IP54 rated to resist dust and water intrusion, and built-in limit switches simplify operation.

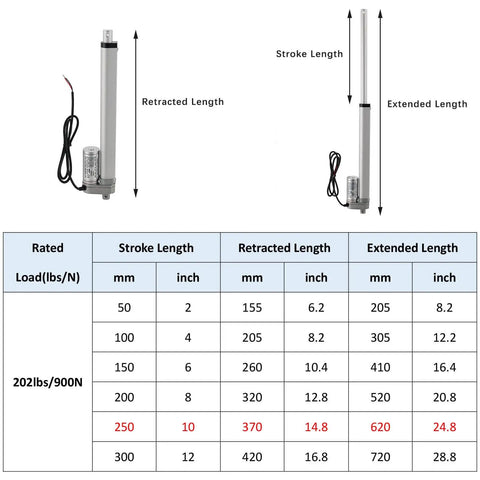

Stroke	250 mm (10 in)
Retracted length	370 mm (14.8 in)
Extended length	620 mm (24.8 in)
Travel speed	0.39 in/s (10 mm/s)
Input voltage	12 V DC
Max load	900 N (202 lbs)
Max current	3 A
Operating temp	-4°F to +167°F

✅ 900N max load (202 lbs)
✅ Stroke 250 mm (10 in)
✅ Travel speed 0.39 in/s (10 mm/s)
✅ Input voltage 12 V DC, 20 W nominal (30 W max)
✅ IP54 aluminum housing with mounting bracket included
✅ Retracted length 370 mm (14.8 in); Extended length 620 mm (24.8 in)

💡 What is a 12V DC linear actuator used for in everyday setups?

These handy devices convert electrical power into linear motion for lifting, pushing, or pulling. - Used in automotive doors, RV slide-outs, and adjustable furniture - Ideal for small automation and hatch devices - Provides reliable, repeatable motion with built-in limit switches - Easy to install with included mounting brackets
