Beefy 12V DC Linear Actuator With 500mm Stroke, 6000N Push And 4000N Pull, 5mm Per Second Speed, About 19.7 Inches Long, Aluminum Outer Tube IP44 Weatherproof, Operating Range 5 To 50 C, 1320 Lbs Thrust, Quiet Operation
UPC:
✔️ Push 6000N / Pull 4000N, 5 mm/s, IP44 aluminum tube

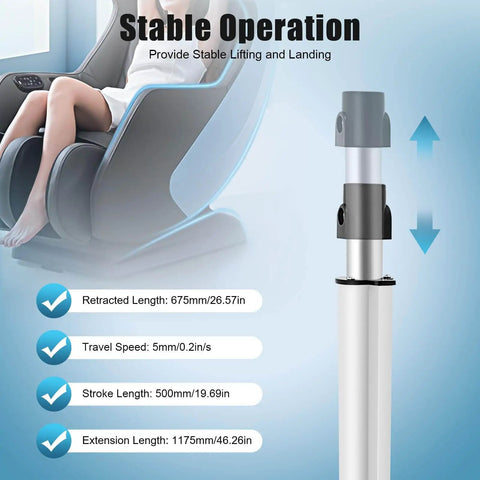

This heavy-duty 12V DC linear actuator delivers precise motion with a 500 mm stroke for heavy loads in furniture, medical beds, skylights, and industrial automation. Its aluminum outer tube (Ø30 mm) and inner tube (Ø24 mm) ensure rigidity while keeping installation compact. It can push up to 6000 N and pull up to 4000 N, with a quiet operation around 48 dB. Built-in limit switches simplify setup. Includes 1 actuator and a set of accessories. IP44 weather protection and a temperature range of -5°C to 50°C support reliable performance in varied environments. Minimum installation size is 675 mm and fully developed length is 1175 mm. Net weight 2.73 kg; gross weight 2.839 kg.
✅ Voltage: 12V DC
✅ Stroke: 500 mm (19.69 in)
✅ Speed: 5 mm/s
✅ Max push: 6000 N (1351 lbf)
✅ Max pull: 4000 N (899 lbf)
✅ Outer Tube: Ø30 mm (1.18 in)
✅ Inner Tube: Ø24 mm (0.94 in)
✅ Noise: 48 dB
✅ IP Rating: IP44
✅ Operating temp: -5°C to 50°C
✅ Duty cycle: up to 10% or 2 min on, 18 min off
✅ Dim: 1175 mm length fully extended (46.26 in)
✅ Weight: 2.73 kg net
💡 What is a handy use case for a 12V DC linear actuator in furniture and automation?
It’s handy for automating lifting, tilting, and opening tasks in everyday setups. - Handy for raising beds, adjustable chairs, and skylights in homes or clinics - Useful in exhibition stands or massage chairs where smooth motion matters - Provides reliable, low-noise operation with built-in limit switches for safe cycling
