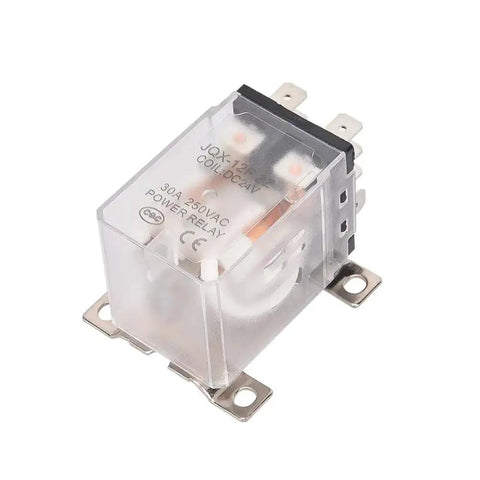

Beefy 24V DC Power Relay, 30A DPDT 2NO 2NC, 8 Pin, General Purpose High Power Relay for Automotive and Industrial Use, Flame Retardant Housing, Built Tough to Handle Big Loads
UPC:
✔️ DC24V coil; 30A @ 250VAC/30VDC; DPDT 2NO+2NC; 8-pin
This general purpose relay is designed for high-power switching in automation and mechatronics. It’s commonly used in industrial controls, HVAC, and DIY projects where solid isolation and reliable operation are needed.
✅ Coil Voltage: DC 24V
✅ Contact Rating: 30A at 250VAC / 30VDC

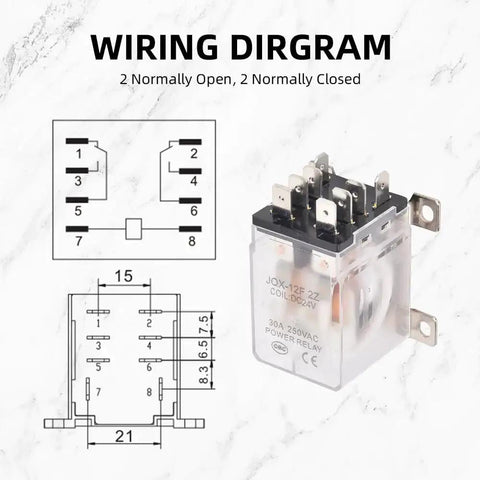

✅ Contact Type: DPDT 2NO+2NC
✅ Pin Count: 8

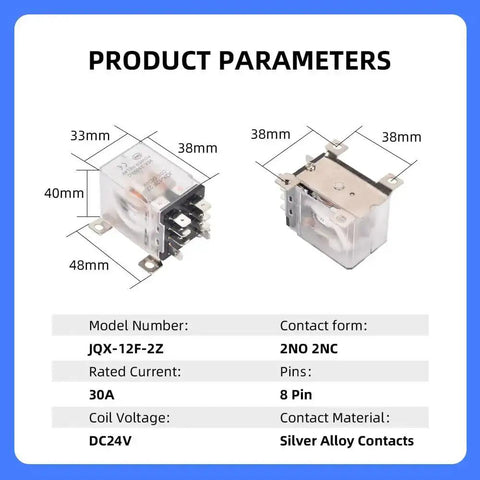

✅ Mounting Hole Distance: 3.85 x 3.78 cm (1.52" x 1.49")

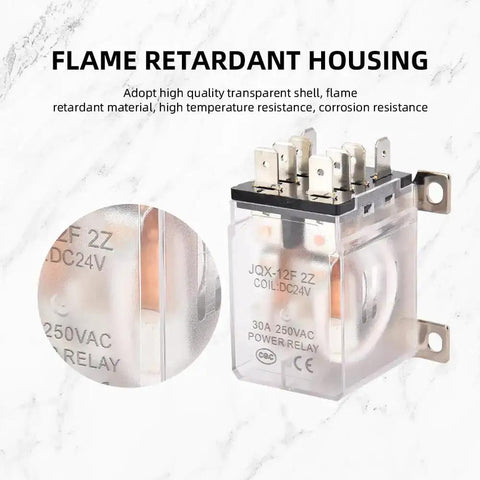

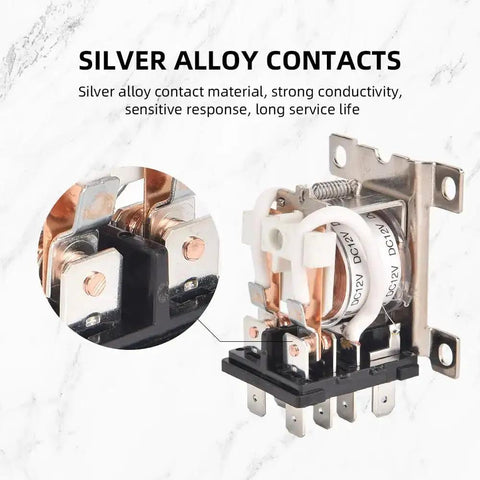

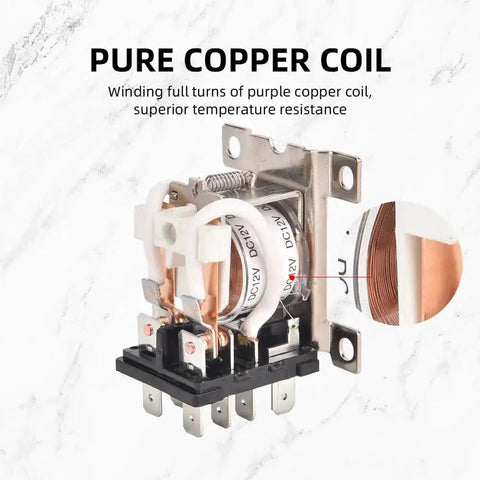

✅ Flame-retardant housing; all-copper coil with silver alloy contacts
| Coil Voltage | Value |
|---|---|
| DC 24V | |
| Contact Rating | 30A 250VAC / 30VDC |
| Pin Count | 8 |
| Mounting Hole Distance | 3.85 x 3.78 cm (1.52" x 1.49") |
💡 What is a general purpose relay used for in control systems? A handy overview of typical use cases. - In control systems, it switches high-power loads from a low-power signal - It provides electrical isolation between control logic and the load - Handy in automation, mechatronics, and industrial wiring
