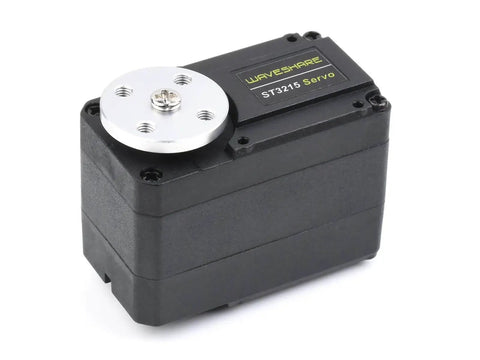

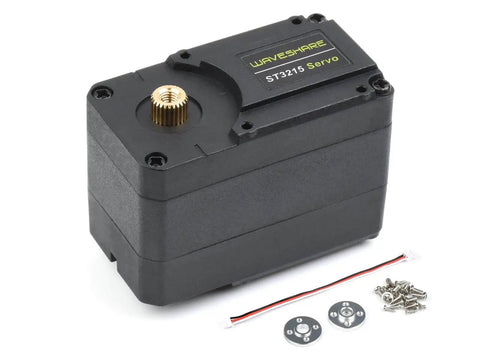

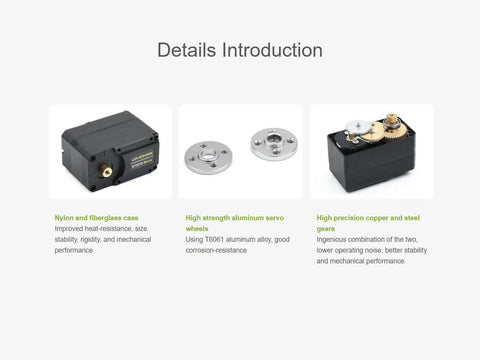

Beefy 30Kg Torque Servo Motor With Metal Gear ST3215, Programmable 360 Degree Magnetic Encoder, Serial Bus Servo, Two Way Feedback, And Servo and Motor Mode Switchable For Robot Projects, Arms, Quadrupeds, Hexapods, And Makers
UPC:

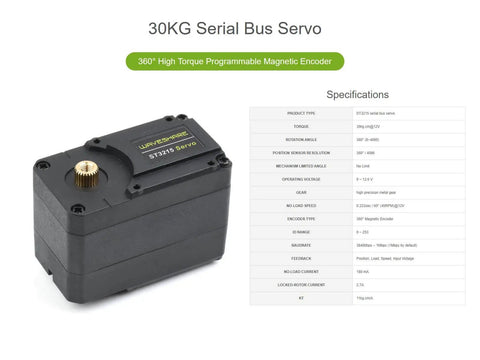

✔️ 30 kg.cm torque at 12V, 360° encoder, 6-12.6V input, single unit.

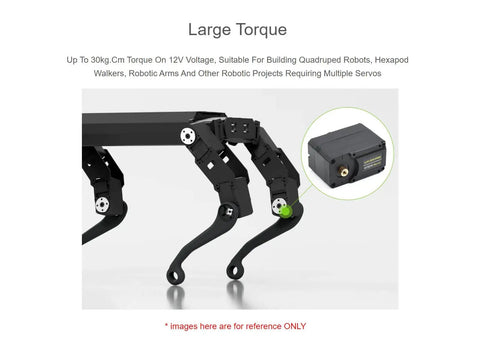

This high-torque serial bus servo is designed for robotics projects requiring precise control in compact hardware. It’s perfect for robotic arms, quadruped robots, hexapod walkers, and maker platforms that require reliable feedback across multiple servos.
✅ 30 kg.cm torque at 12V

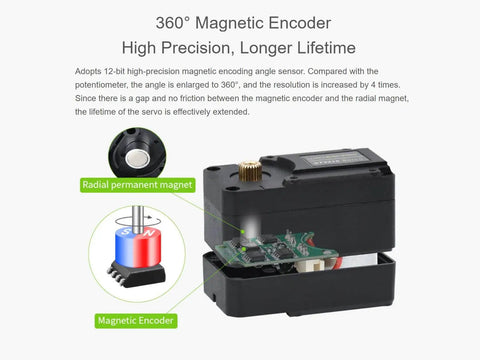

✅ 360° magnetic encoder with 360°/4096 resolution
✅ 6-12.6V operating range

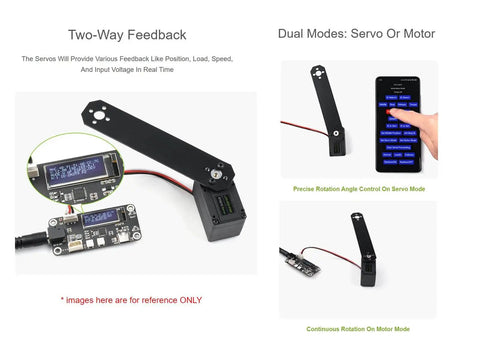

✅ Two-way feedback: position, load, speed, input voltage
✅ Servo/motor mode switchable
✅ 0.222s/60° no-load speed at 12V

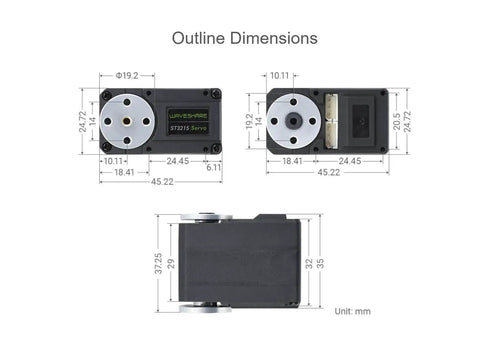

✅ Weight 69 g; dimensions 45.22 mm x 35.00 mm x 24.72 mm (1.78 in x 1.38 in x 0.97 in)

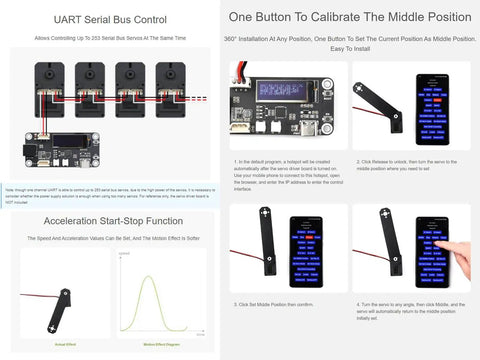

💡 What is a high-torque 360-degree encoder servo used for in robotics? A high-torque servo with a 360-degree encoder provides precise, repeatable positioning and real-time feedback for complex robot builds. - Handy for robotic arms and grippers - Useful in quadrupeds and hexapods for accurate leg motion - Absolute angle readout with 360°/4096 resolution - Enables multi-servo coordination on a single serial bus
