Beefy 30W Permanent Magnet DC Motor CH 3420 24V 7000 RPM Reversible CW CCW High Speed Gear Motor With Low Noise Design All Metal Construction Includes 20A PWM Speed Controller And Mounting Bracket

High-Speed 24V DC Motor with Controller and Bracket
✔️ 24V 7000 RPM CW/CCW, all-metal, PWM controller, pack: 1

Compact permanent magnet DC motor designed for high-speed operation in small machines. Ideal for fans, printers, money counters, and compact automation projects, including small linear slide unit setups.

✅ Model CH-3420, 24V, 30W, 7000 RPM no-load, 5100 RPM under load

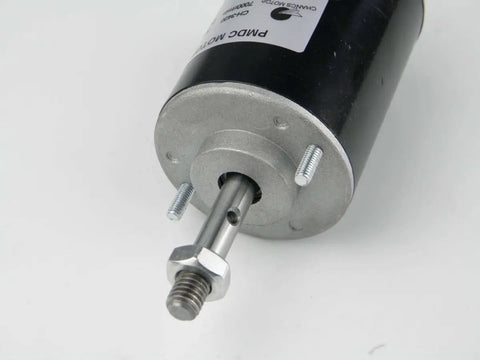

✅ Shaft Ø8mm, 38mm long, threaded tip and 3 mm hole
✅ Sealed ball bearing design for low noise and long life

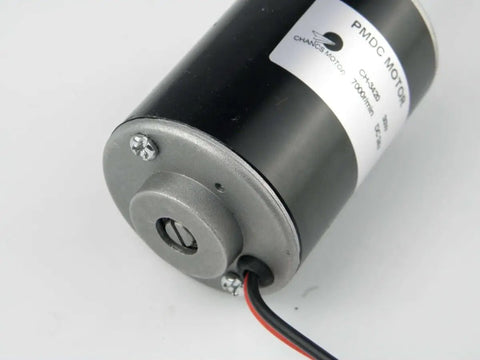

✅ All-metal housing for durability and high bearing capacity
✅ CW/CCW rotation and stable performance

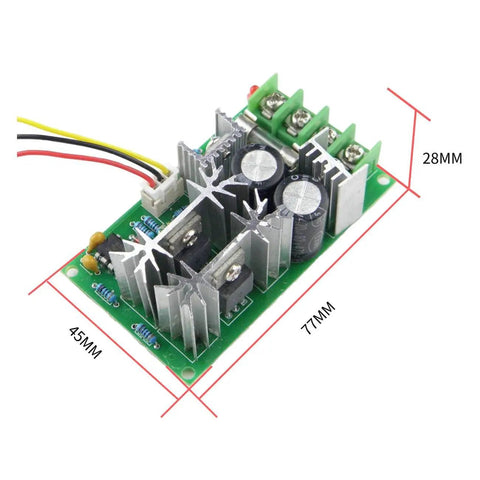

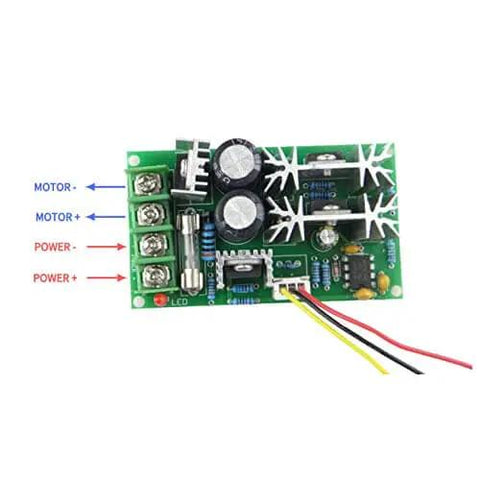

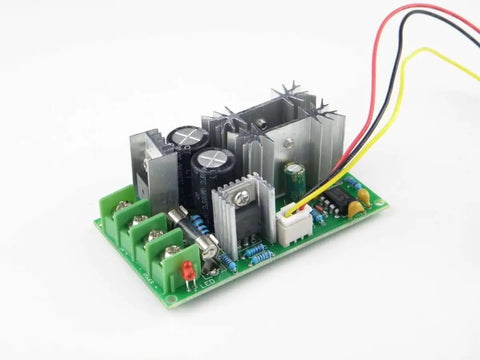

✅ PWM speed controller: 10-60V input, 0-100% duty, 25 kHz
✅ Bracket included: 57.5x41x51 mm for secure mounting

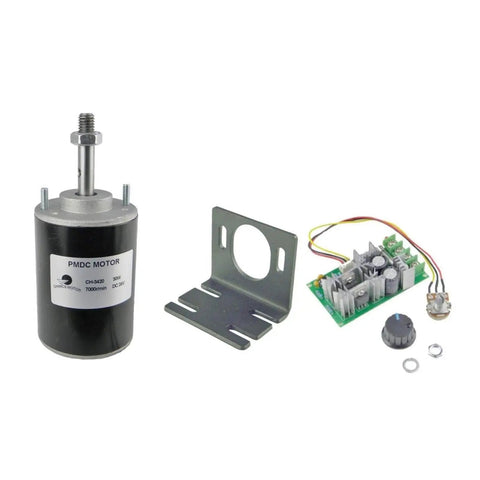

✅ Package includes motor, PWM controller, and mounting bracket

Part	Size (mm)	Size (in)
Motor housing	51 x 70	2.01 x 2.76
Shaft Ø x length	8 x 38	0.315 x 1.50
Bracket	57.5 x 41 x 51	2.26 x 1.61 x 2.01
Package	130 x 80 x 90	5.12 x 3.15 x 3.54

💡 What is a permanent magnet DC motor used for? Permanent magnet DC motors are handy in handy, compact drives for small machines, offering quick response and easy speed control. - Handy for fans, printers, money counters, small shredders, and hobby CNC setups - CW/CCW rotation helps in tight spaces and compact layouts - PWM control delivers smooth speed changes and energy efficiency - All-metal construction stands up to demanding environments
