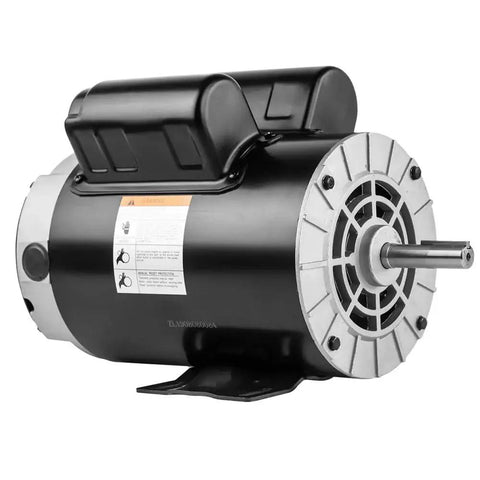

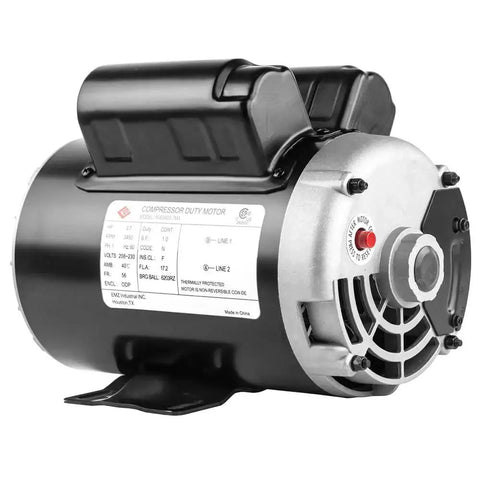

Beefy 3.7 HP 230V Single Phase Air Compressor Motor, 56 Frame, 3450 RPM, 5/8 Shaft, 17.2A, ODP Open Drip Proof, Thermally Protected, Manual Reset Overload, CCW Non-Reversible Facing Shaft, Ideal Heavy Duty Replacement For Pneumatic Equipment
UPC: 00193019692622
✔️ Single unit, 56-frame, 3450 RPM, 5/8 in shaft, 17.2A CCW rotation
This heavy-duty single-phase motor is designed to replace worn or underpowered air compressor motors. Built for continuous duty in workshops, garages, and industrial settings, it delivers strong start-up torque and reliable operation.

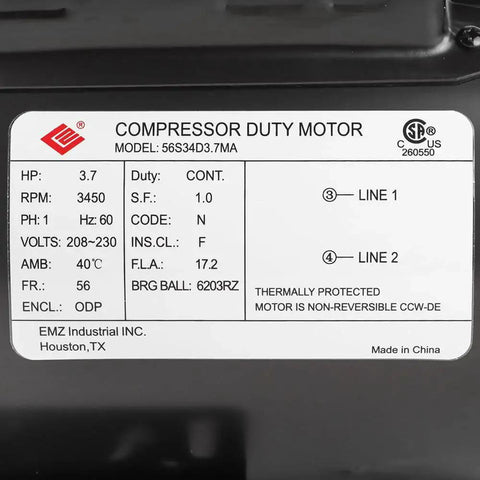

✅ 3.7 HP, 230V, 3450 RPM, 60 Hz, ODP enclosure

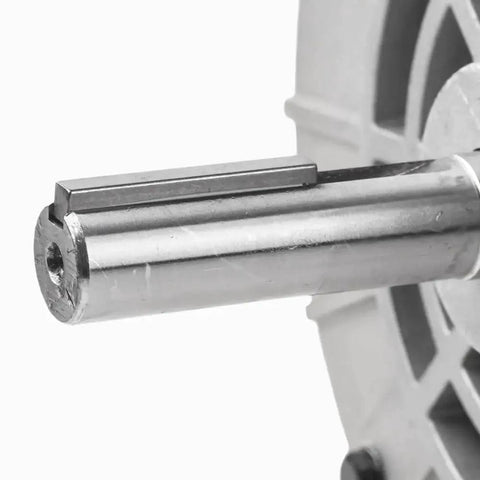

✅ Frame 56, shaft 5/8 in, shaft length 2-1/2 in, 3/16 in keyway

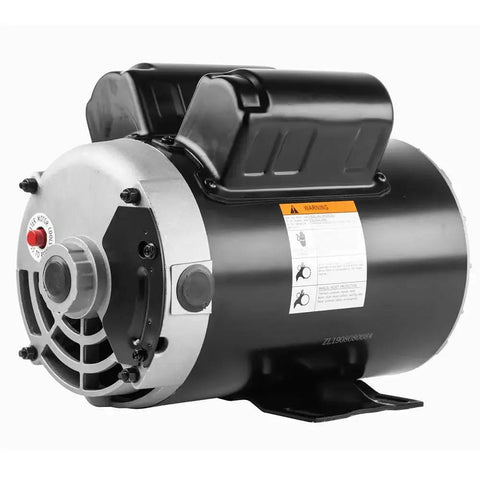

✅ Non-reversible CCW rotation facing shaft for fixed-direction drives

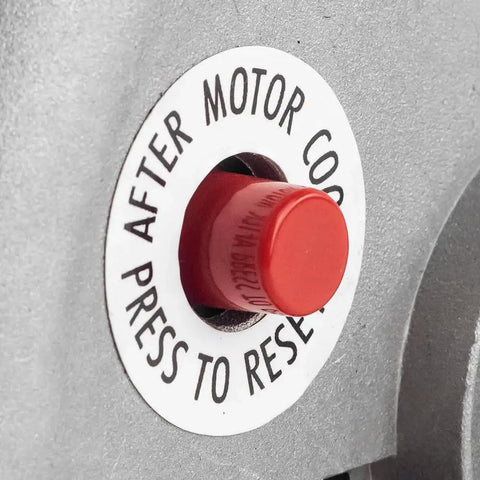

✅ Thermally protected with manual reset overload for safe long runs
✅ Full-load current 17.2A; ambient 40 °C; continuous duty
✅ Ideal heavy-duty replacement for pneumatic equipment
| Overall Length (W/O Shaft) | 12.00 in (304.8 mm) |
| Overall Length (With Shaft) | 14.50 in (368.3 mm) |
| Overall Height | 8.625 in (219.1 mm) |
| Overall Width | 6.625 in (168.3 mm) |
| Shaft Diameter | 0.625 in (15.875 mm) |
| Shaft Length | 2.5 in (63.5 mm) |
| Keyway | 3/16 in (4.76 mm) |
💡 What is a single-phase air compressor motor used for in industrial settings? This handy motor powers compressors and other pneumatic gear requiring reliable torque and steady power.
- handy for shops needing dependable start-up torque
- CCW facing shaft compatibility for fixed-direction setups
- ODP enclosure provides ventilation while protecting internals
- manual reset overload protection adds safety during long runs
