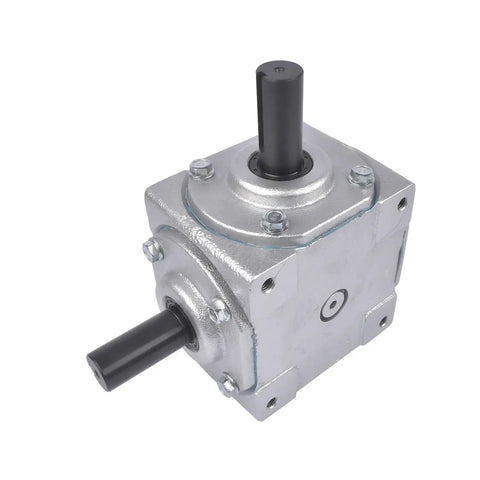

1:1 Right-Angle Bevel Gearbox, 40 HP, Cast Iron
✔️ 40 HP input, 1:1 CW-to-CW, single unit, cast iron housing

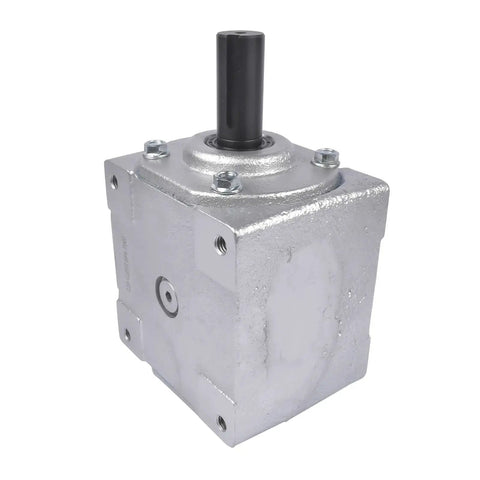

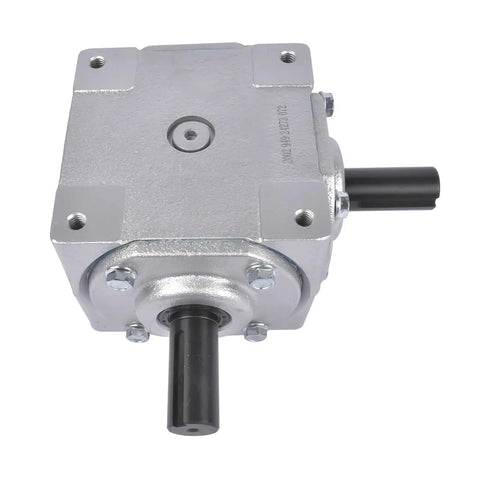

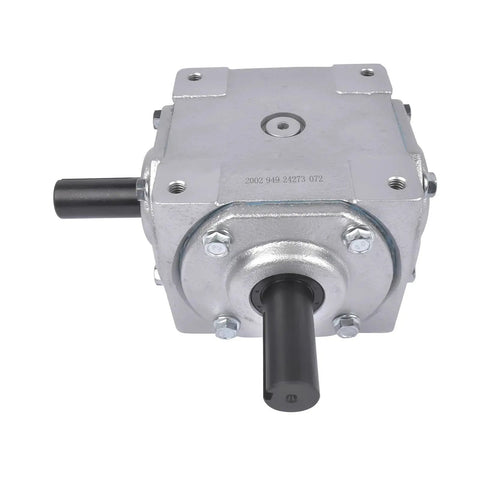

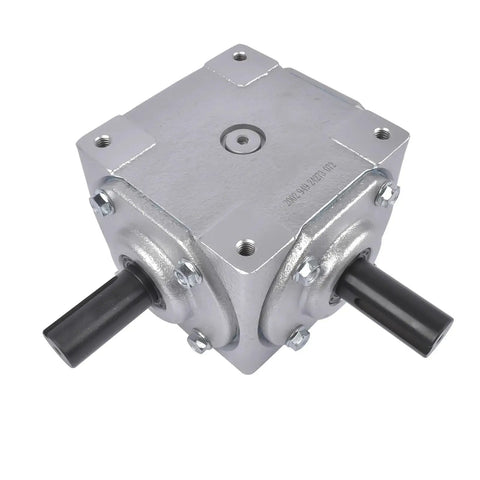

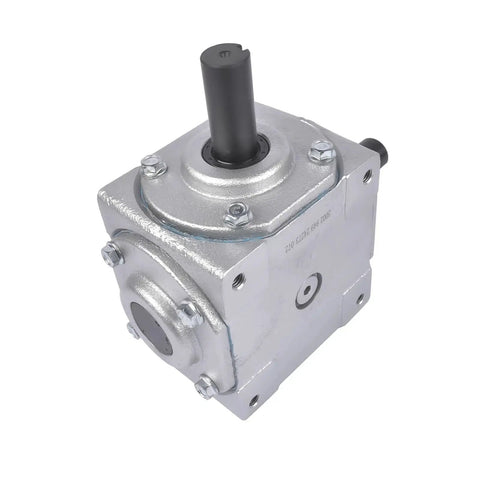

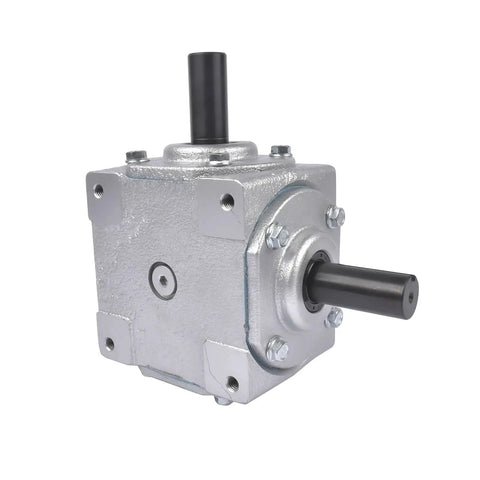

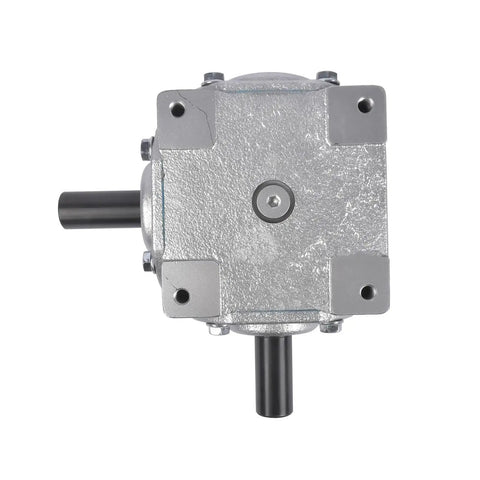

This right-angle bevel gearbox converts motion from a horizontal drive to a perpendicular output, delivering a 1:1 ratio with two 1-inch keyed shafts. Cast iron housing provides durable protection for gears and taper roller bearings, making it a solid choice for heavy-duty machinery, conveyors, and other power-transmission setups.

✅ Item Type: Bevel Gearbox
✅ Part Number: 19455-SR-KW-KW-GR
✅ Dimensions: 5-7/8" x 6-1/4" x 4-1/8" (149 mm x 159 mm x 105 mm)
✅ Bolt Pattern: 4-1/4" Square with 3/8" tapped holes (107.95 mm square, 9.525 mm tapped)
✅ Input Shaft: 1" x 2-1/4" with 1/4" keyway (25.4 mm x 57.15 mm, 6.35 mm key)
✅ Output Shaft: 1" x 2-1/4" with 1/4" keyway (25.4 mm x 57.15 mm, 6.35 mm key)
✅ Input Power: 40 HP
✅ Input Speed: 1,800 Max RPM
✅ Shaft Rotation: CW to CW, 1:1 ratio
✅ Housing: Cast iron sealed housing protects gears and taper roller bearings
✅ Oil/Shipping: Ships without oil (1/3 qt of 80-90 W)

💡 What is a right-angle bevel gearbox used for in power transmission systems? This handy drive component moves power between perpendicular shafts and keeps speed matched. - handy for redirecting drive between perpendicular shafts in industrial machines - reliable 1:1 torque transfer with cast iron housing - ideal for compact layouts requiring a right-angle drive
