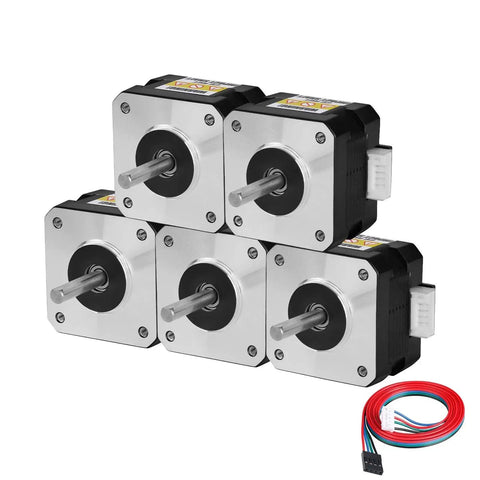

Beefy 5 Pack Nema 17 Stepper Motors 2 Phase 1.8 Degree 0.28 Nm High Torque Bipolar 28mm Body 1.6A 1.2 Ohm 4 Wire Shaft 24mm 5mm Diameter Cable 1m Pack Perfect For 3D Printers DIY Robots And CNC Machines

5-Pack NEMA 17 High-Torque Stepper Motors for DIY
✔️ 1.8° step, 0.28 Nm, 42x42x27.5mm (1.66x1.66x1.09in), 1.6A, 1m

This 5-pack of NEMA 17 stepper motors packs high torque into a compact 42x42x27.5mm body, making them ideal for 3D printers, DIY robots, and CNC machines.

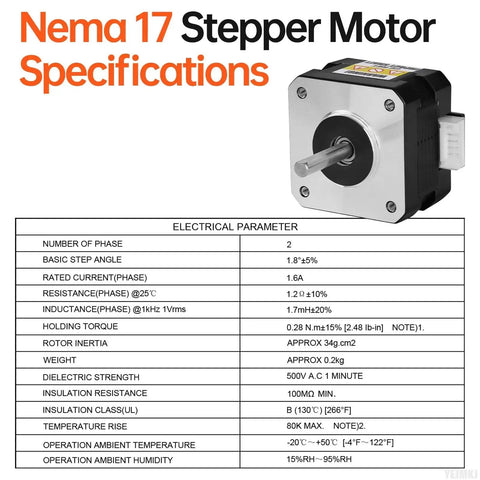

✅ 2-phase, 1.8° step angle (200 steps/rev) torque 0.28 Nm
✅ 1.6A rated current; resistance 1.2Ω; inductance ~1.7mH

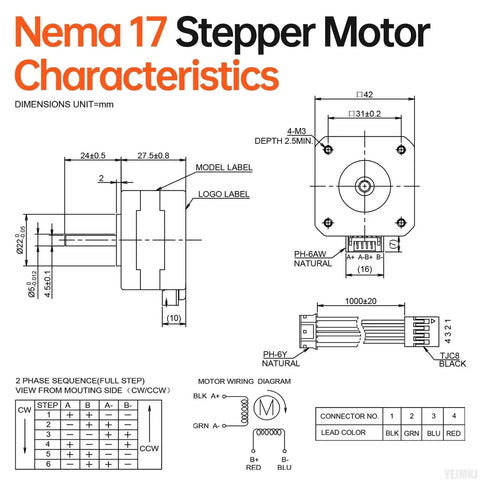

✅ Body size 42x42x27.5mm (1.66x1.66x1.09in); weight ~190 g
✅ Shaft φ5mm; length 24±0.5mm (0.94±0.02in); D-cut 24mm
✅ Cable 1m, 4-wire (Black A+, Green A-, Red B+, Blue B-)
✅ Installation holes 31mm apart

💡 What is the best way to choose a NEMA 17 stepper motor for high-torque 3D printers and small CNCs?

- Handy for compact projects with reliable torque - Balance torque (0.28 Nm) and current (1.6 A) to manage heat - Use bipolar drivers with 4-wire cables for clean control - Keep speeds around 0-600 RPM for smooth operation
