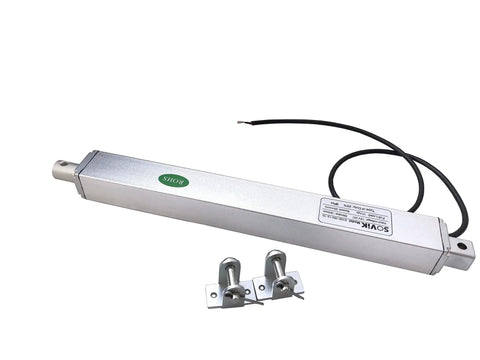

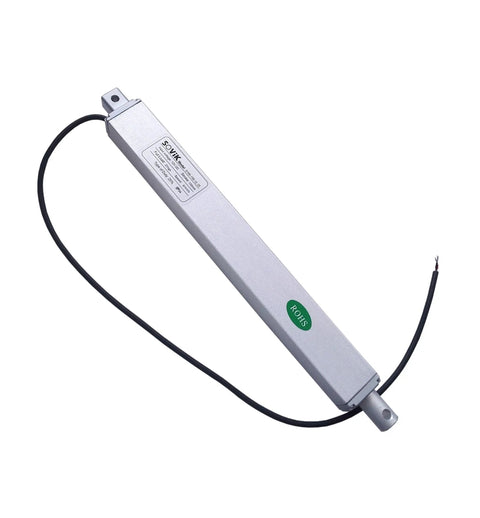

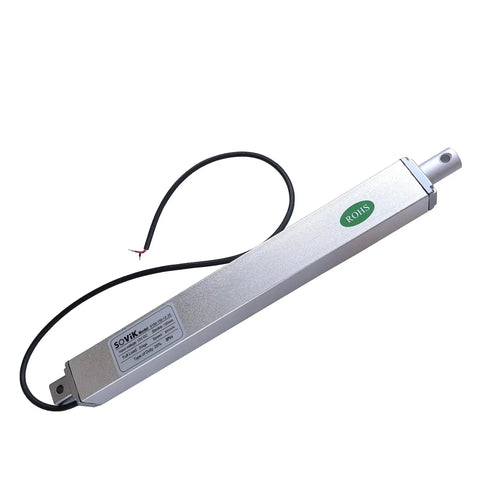

Beefy 6 Inch Stroke Linear Actuator 12V DC With Built In Limit Switch and Mounting Brackets 55 Lbs Max Lift Inline Design 6mm Mounting Holes IP54 Rated Extends From 12 Inches Retracted To 18 Inches Extended By SOViK

6 Inch Stroke Inline Actuator with Built-In Limit Switch
✔️ 12V DC, 55 lb lift, inline design, IP54 rated, single unit

This rugged 12V DC linear actuator provides controlled push-pull motion for tight spaces, ideal for throttle control, vent doors, window regulators, gates, and shutter systems.

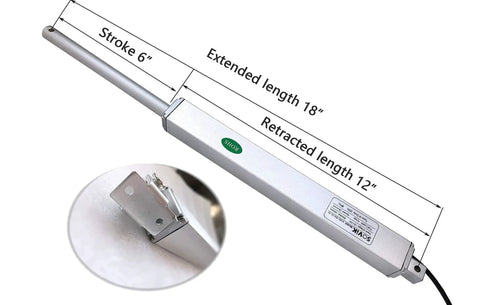

✅ 6 inch stroke length for reliable travel
✅ 12V DC operation with integrated limit switch
✅ 55 Lbs (250 N) max lift capacity

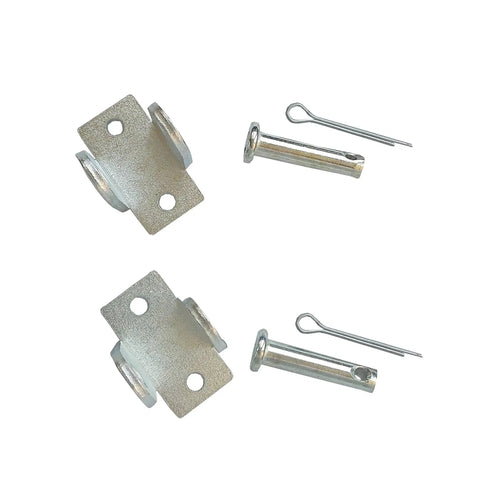

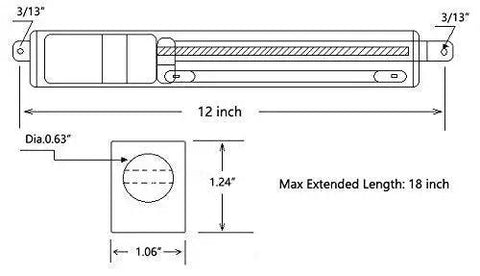

✅ Inline design with 6 mm mounting holes and brackets included
✅ IP54 rated for dust and moisture in harsh environments
✅ No-load current ~0.1 A; max current ~1.5 A; speed 8 mm/s

💡 What is a 12V inline stroke linear actuator used for in automation projects?

They provide reliable, compact linear motion for tight spaces and a range of tasks.

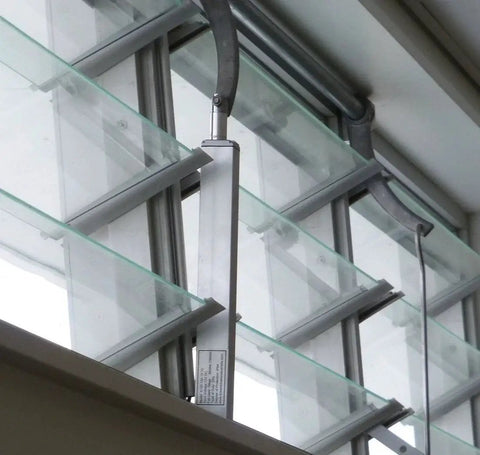

- handy for throttle control in machines - vent and window actuation in HVAC or vehicle apps - remote gate or shutter opening and alignment
