Beefy Air Cooled CNC Spindle Motor ER11 1.5kW 65mm Diameter Dual Voltage 110V 220V 4 Ball Bearings Includes 65mm Bracket Kit For CNC Machines High Torque Milling And Routing

Powerful ER11 Air-Cooled CNC Spindle for Wood and Metal ✔️ 1.5kW air-cooled ER11 spindle, 65mm body, 0-24000 rpm, 110/220V 1pc

This beefy, air-cooled spindle uses an ER11 collet and a 65mm body to deliver strong milling and engraving power on CNC routers. It's ideal for wood, plastic, aluminum, and other soft metals in home or light industrial setups, and ships with a 65mm bracket kit for quick mounting.

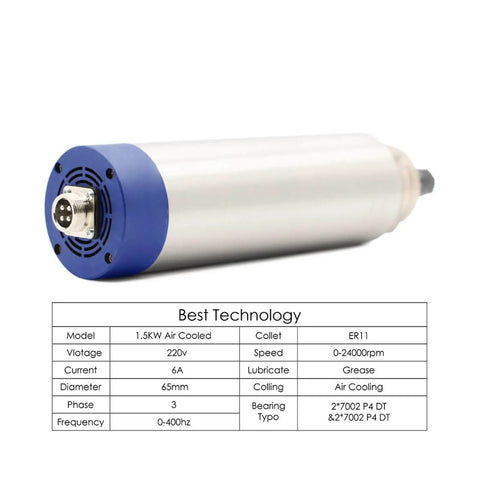

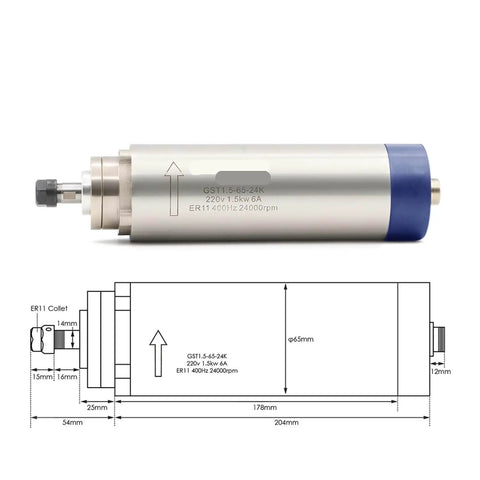

✅ Diameter 65 mm (2.56 in); length 204 mm (8.03 in); cast aluminum body
✅ Power 1.5 kW; voltage 110/220V; current 12 A; air-cooled
✅ Speed 0-24000 rpm; 0-400 Hz; inverter-ready 3-phase connection
✅ Bearings: sealed angular contact, 4x P4 DT (2×7002C P4 DT, 2×7002C P4 DT)
✅ ER11 collet; supports 7 mm to 1 mm tooling (7, 6.35, 6, 5, 4, 3.175, 3, 2, 1 mm) (0.275-0.039 in)

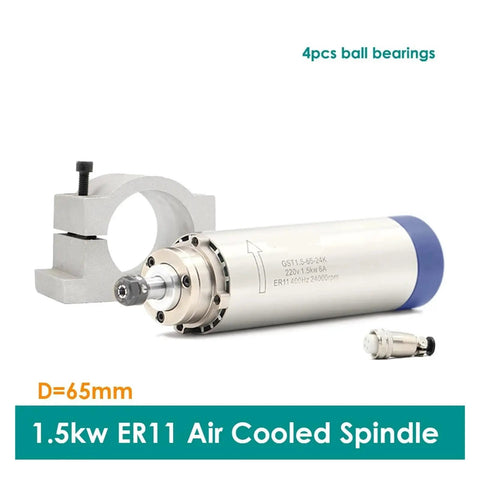

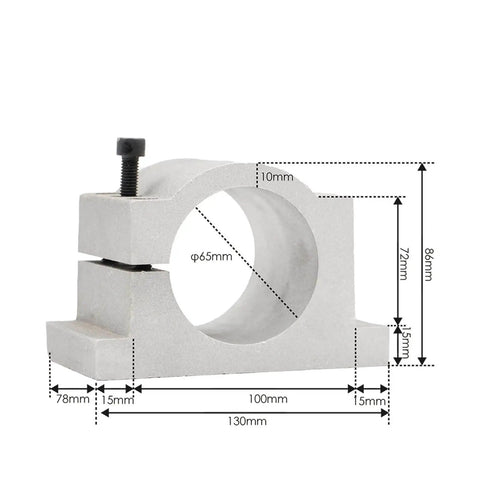

✅ Bracket kit included; single-unit package (1pc) for quick mounting

💡 What is a CNC spindle used for in woodworking and light metal work?

It's handy for precise routing and engraving on non-ferrous materials like wood and aluminum.

- Handy for hobbyists and small shops doing custom cuts - Works with ER11 collets and standard mounting brackets - Inverter-controlled speed provides flexibility for different materials
