Beefy High Torque Nema 14 Stepper Motor For 3D Printers With 1.5A Current And 40 Ncm Holding Torque, 200 Steps Per Revolution, 4 Wire Bipolar, 56.7 OzIn Motors For Precise Motion And Heavy Lifting STEPPERONLINE

Single-Unit 1-Piece NEMA 14 Stepper Motor with 40 Ncm Torque
✔️ 1.5A/phase, 40Ncm holding torque, 200 steps/rev, 4-wire bipolar

This heavy-torque NEMA 14 bipolar stepper is designed for compact motion control and lifting tasks. It’s commonly used in 3D printers, small CNC machines, and automation projects where space is tight and precise positioning matters.

✅ 40 Ncm (56.7 oz-in) holding torque

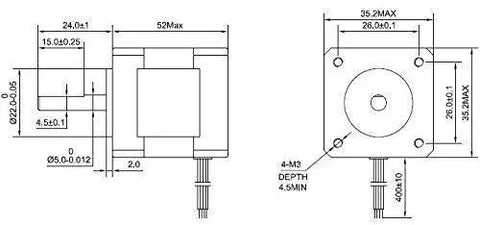

✅ NEMA 14 frame: 35 x 35 mm, body length 52 mm
✅ Step angle 1.8° (200 steps/rev) for precise motion
✅ Rated current/phase 1.5 A, resistance 2.8 Ω, inductance 3.8 mH ±20%
✅ 4-wire bipolar with lead length 300 mm and color coding: Black(A+), Green(A-), Red(B+), Blue(B-)

💡 What is a high torque NEMA 14 stepper motor used for in compact automation setups? This handy device powers tight, controlled motion in small machines. - High torque at low speeds helps lift and position heavy loads. - Requires a current-controlled drive for predictable performance. - Commonly used in 3D printers, mini CNCs, and robotic arms. - Works with standard drivers for easy integration.
