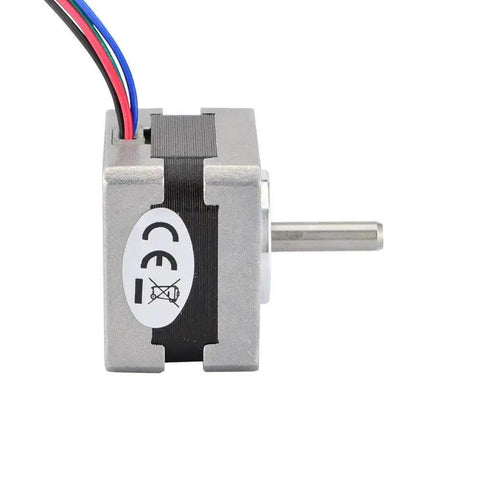

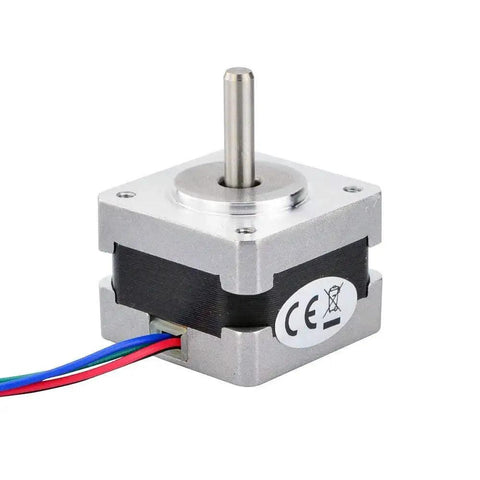

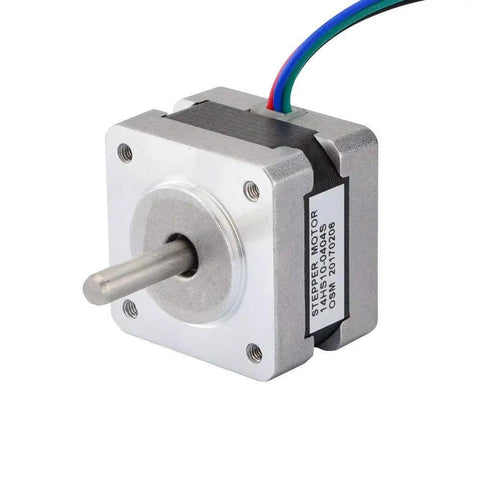

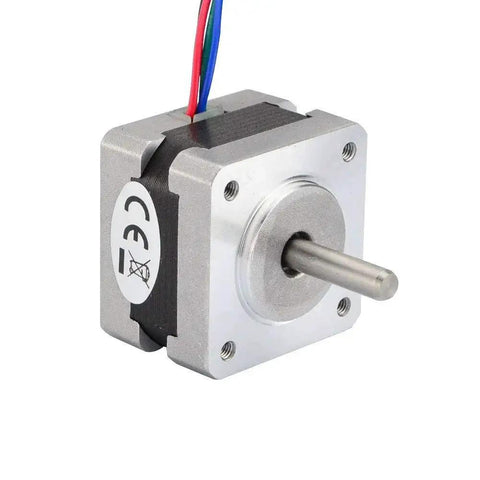

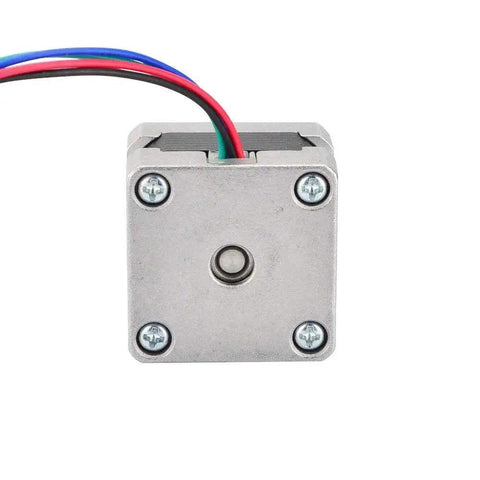

Beefy NEMA 14 Stepper Motor With 1.8 Degree Step Angle Bipolar Four Wire 12 Volt 0.4 Amp 14 Ncm Holding Torque 35 By 35 By 26 Millimeter Size For CNC Machines 3D Printers And Robotics In A Short Height Package

Compact NEMA 14 stepper motor: 1.8° torque for CNC
✔️ 0.4A/phase, 14 Ncm torque, 26mm frame, 4‑lead setup

Small, precise four-wire bipolar motor designed for compact CNC machines, 3D printers, and robotics projects. With a 26mm body length and 35x35mm frame, it fits tight spaces while delivering steady holding torque and reliable micro-stepping.

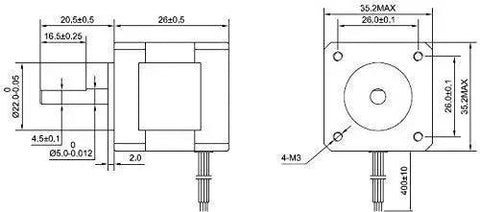

✅ Frame size 35 x 35 mm
✅ Body length 26 mm
✅ Step angle 1.8° (200 steps/rev)
✅ Rated current per phase 0.4 A
✅ Holding torque 14 Ncm (20 oz-in)
✅ Lead length 400 mm
✅ Shaft diameter 5 mm; weight 140 g
✅ Four leads: Black(A+), Green(A-), Red(B+), Blue(B-)
✅ Inductance 30 mH ±20% (1 kHz)

💡 What is a NEMA 14 stepper motor used for in small CNC and 3D printer projects? These handy little motors are handy for precise moves in compact builds. - handy for compact CNC mills, desktop 3D printers, and robotics - 1.8° step angle provides fine positioning (200 steps per rev) - compatible with bipolar drives and current-regulated power supplies - compact form factor (26 mm length, 35x35 mm frame)
