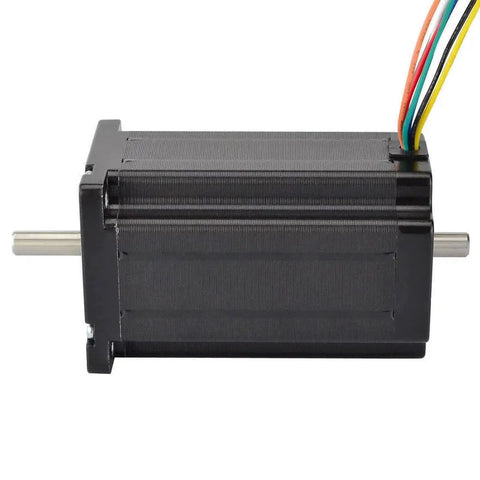

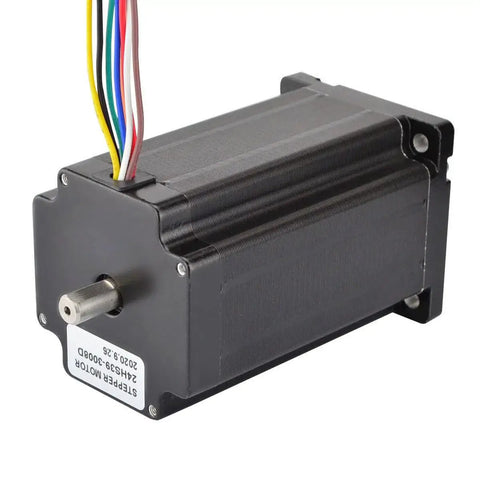

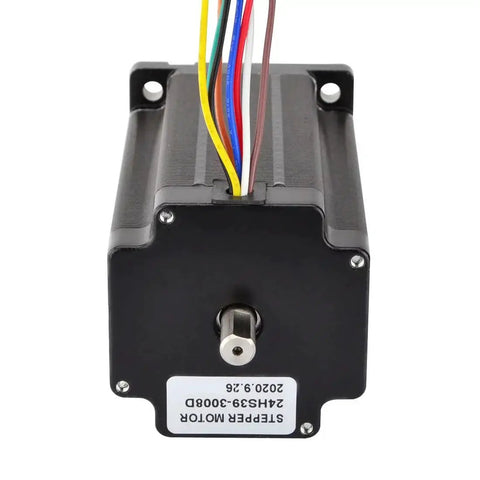

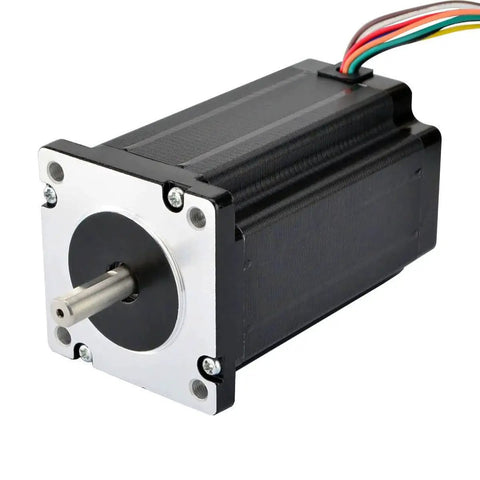

Beefy Torque Nema 24 Stepper Motor For CNC Mills Lathes And Routers With Unipolar And Bipolar 8 Wire Drive 3A Current 8mm Dual Shaft 1.8 Degree Step 3.4Nm Torque For CNC Milling And Laser Routing By StepperOnline

High-torque NEMA 24 stepper motor for CNC mills
✔️ 8-wire uni/bi-polar, 3.4 Nm torque, 1.8° step, single unit

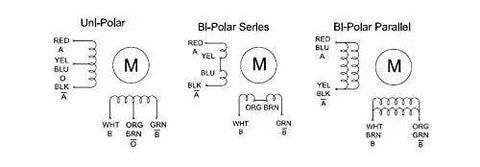

This high-torque, 8-wire CNC stepper motor covers both unipolar and bipolar drive modes, ideal for CNC mills, lathes, laser routers, and engraving machines. It delivers strong torque in a compact 60x60 mm frame, making it easy to retrofit into existing setups.

✅ Holding torque: Bipolar 4.0 Nm (566 oz-in); Unipolar 2.8 Nm (397 oz-in)
✅ Rated current: Bipolar serial 2.12 A; Bipolar parallel 4.24 A; Unipolar 3.0 A
✅ Phase resistance: Bipolar serial 2.8 Ω; Bipolar parallel 0.7 Ω; Unipolar 1.4 Ω
✅ Inductance: Bipolar serial 12.0 mH; Bipolar parallel 3.0 mH; Unipolar 3.0 mH
✅ Frame size/Length: 60x60 mm, 100 mm; Shaft Ø 8.0 mm
✅ Lead length/Weight: 400 mm; 1.6 kg

💡 What is a high-torque NEMA 24 stepper motor used for in CNC milling and routing?

This handy device is built to move CNC axes precisely under load, offering strong torque and reliable steps. - Handy for driving precise axis movement in CNC mills, routers, and engraving tools. - Requires a current-controlled driver to prevent overheating and enable smooth micro-stepping. - Compatible with common stepper drivers for easy integration into existing machines.
