Belt Drive Motorized Linear Stage Actuator 600MM Fast Linear Motion Slide Rails for CNC Linear Position Kit

Belt Drive Motorized Linear Stage Actuator, 600mm Travel, CNC Linear Slide Unit for Positioning Kits

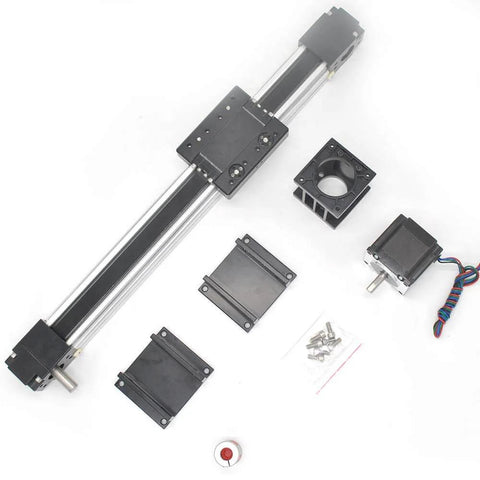

✔️ This belt-driven linear stage offers precise, fast motion for CNC machines and automation setups. Pack size: single unit with 1.3 N m NEMA23 motor and foot mounting bracket included, ready to mount and replace in a cross slide, gantry table, or multi-axis system.

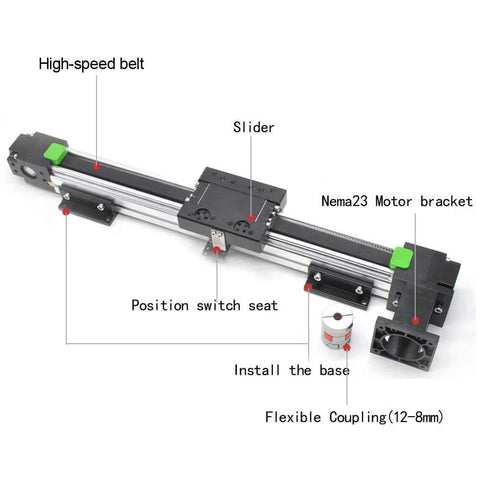

Overview: A high-precision belt driven linear actuator designed for smooth operation and low noise, ideal for CNC positioning tasks. It uses a standard aluminum alloy profile with a sandblasted surface that’s rustproof and features precision hole positions for CNC processing.

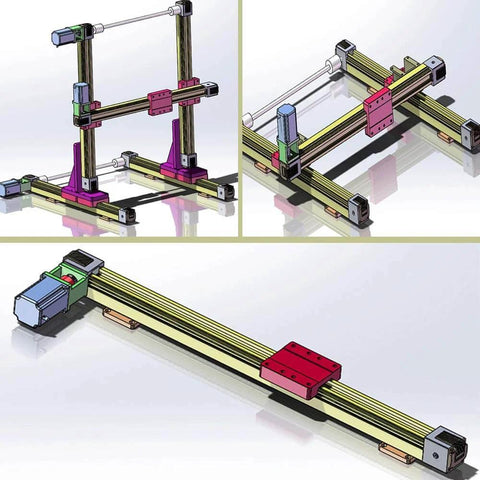

Compatibility and build: The unit can be directly folded into a cross slide, gantry sliding table, or used as part of 3-axis, 4-axis, or multi-axis configurations. The included NEMA23 motor is 1.3 N m and is easily replaceable with a foot mounting bracket.

✅ Travel length: 600 mm
✅ Max speed: 500 mm/s
✅ Positioning repeatability: ±0.1 mm
✅ Drive system: belt-driven linear actuator

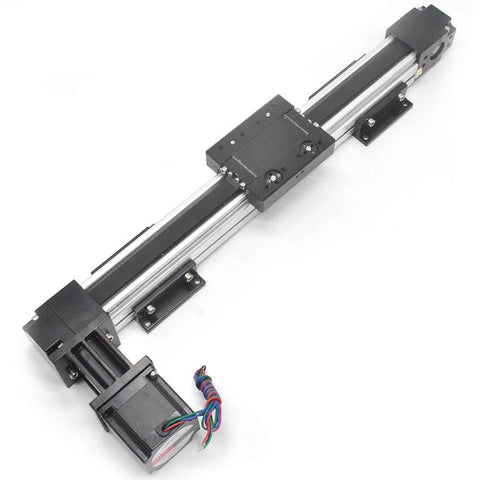

✅ Motor: NEMA23, 1.3 N m, with replaceable foot mounting bracket
✅ Frame: aluminum alloy profile, sandblasted surface, rustproof
✅ Mounting: precision CNC hole positions for direct integration into cross slides or gantry tables

This handy setup is ideal for precise CNC positioning, laser cutting, engraving, and multi-axis automation to boost throughput and accuracy.

💡 What is a belt drive motorized linear stage used for in CNC and precision positioning applications? The belt driven linear stage combines speed and accuracy in a compact frame, making it a core choice for precise motion control in manufacturing and automation tasks. - High-precision motion for repeatable results - Easy integration into cross slides, gantries, and multi-axis systems - Handy for quick, repeatable positioning in CNC, laser, and robotics tasks - Compatible with standard NEMA23 motors and modular brackets
