High quality 1M bevel gear set with 20 teeth for 90 degree steering, supplied as a pair with 5 mm shafts and M5 fixing holes, delivering smooth, precise power transfer for CNC machines, robotics, and small machinery applications

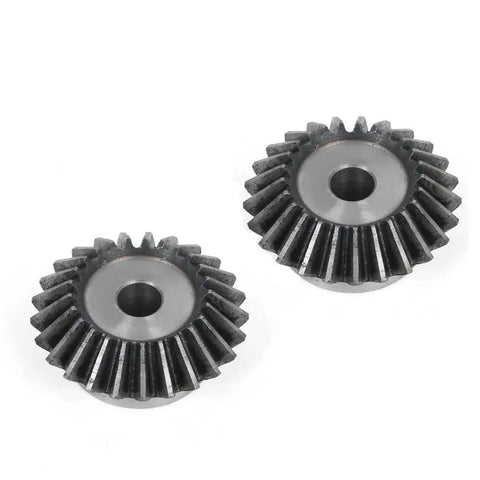

Bevel Gear Set 1M, 20 Teeth for 90 Degree Steering (2 Pcs)

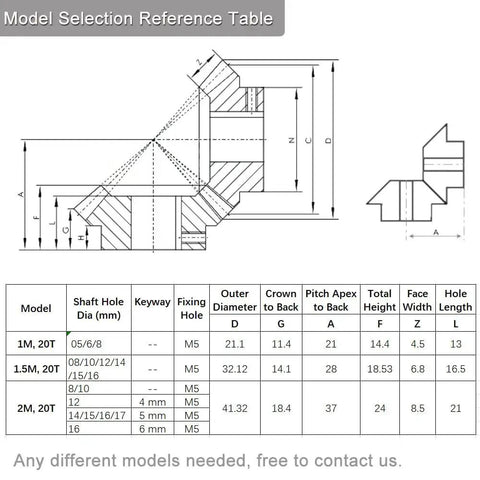

✔️ 1M module, 20 teeth, 5 mm shaft, M5 fixing hole, 21.1×14.4 mm

Bevel gears are precision metal drive components used to transfer motion at a right angle. This 1M, 20-tooth set is ideal for steering drives in CNC machines, agricultural equipment, textile machinery, and other mechanical systems requiring reliable right-angle power transfer.

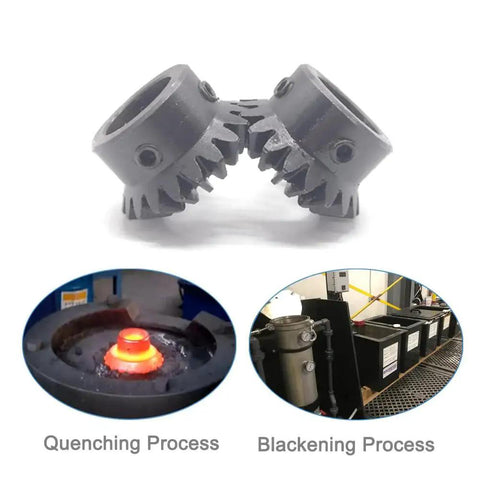

✅ Material: #45 steel
✅ Module: 1
✅ Teeth: 20 teeth
✅ Shaft hole: 5 mm
✅ Fixed by M5 screw hole

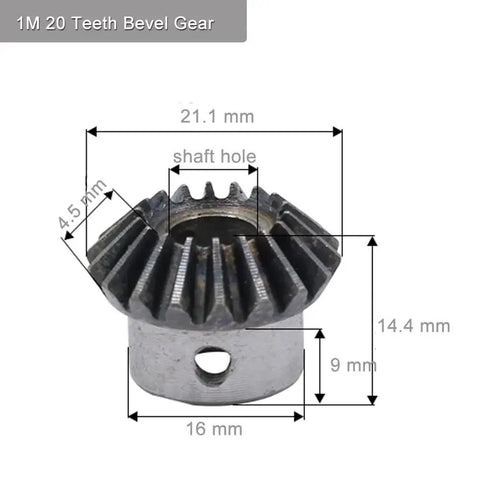

✅ Overall size: 21.1 × 14.4 mm
✅ Package: Bevel Gear x 2 pcs, 2.5mm spanner x 1

💡 What is a bevel gear set used for in power transmission and steering systems? Bevel gears help transfer motion at a right angle in compact, handy drive assemblies. - bevel gear set 1M for right-angle steering drives in CNC and automation - 20 teeth, 5 mm shaft, M5 fixing hole for secure mounting - matching gear pairs are required for smooth operation and longevity
