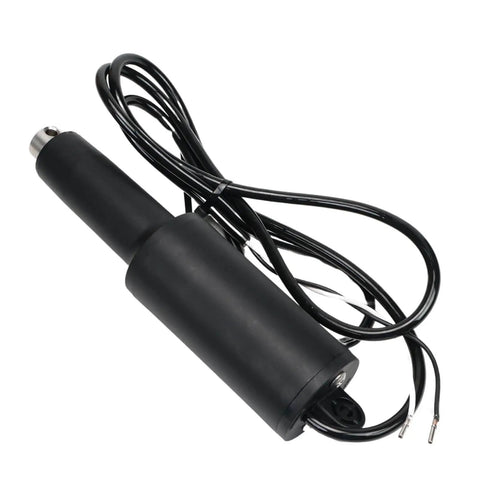

Boat Trim Tab Actuator 15055 001 Direct Replacement For 101XD Extreme Duty 12V System Two And A Quarter Inch Stroke Five Sixteenth Inch Top Hole Six Inch Wire Length Ready To Install For Faster Response And Leak Prevention

Direct Replacement Trim Tab Actuator Kit, 101XD 12V (1x)
✔️ 12V direct replacement, 2-1/4in stroke, IP69K sealed

This boat trim tab actuator is a direct replacement designed for 12V systems, used to adjust stern tabs for improved stability, trim control, and fuel efficiency.

✅ Direct replacement for OE 15055-001 to ensure compatibility with 101XD Extreme Duty Actuator
✅ Fits 101XD Extreme Duty Actuator, 12V system, 2-1/4in stroke, 5/16 hardware

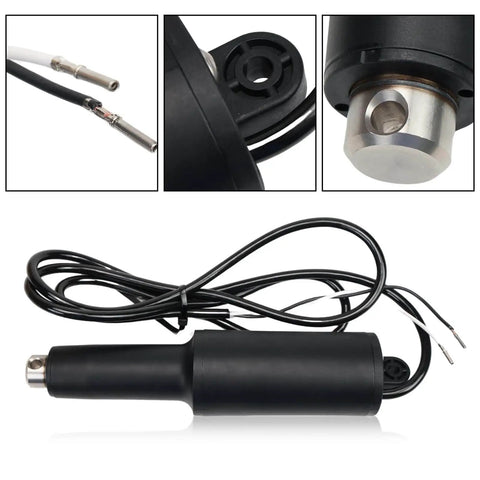

✅ Sealed fiberglass/nylon 66 housing with dual O-rings and waterproof connectors for IP69K protection
✅ Complete plug-and-play kit includes mounting bolts, washers, locating pins, and waterproof electrical connectors
✅ 12V high-thrust motor delivers solid linear thrust for heavy-duty stabilizers
✅ 24-point bearing support with mechanical self-locking for secure positioning
✅ Cable length 6 ft (1.83 m) and stern installation for optimal reach

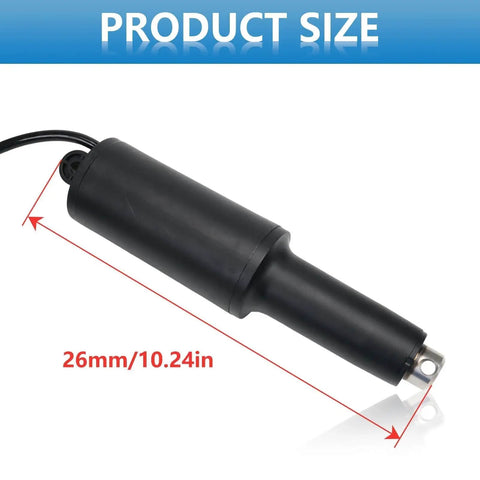

✅ Hardware dimensions: bolts 2.51in/63.7mm, 2.00in/50.8mm, 1.94in/49.3mm, 1.41in/35.8mm; spacers 0.25in/6.35mm, 0.50in/12.7mm; boot 0.75in/19.05mm; connector 1.10in/27.94mm; pin 1.51in/38.35mm

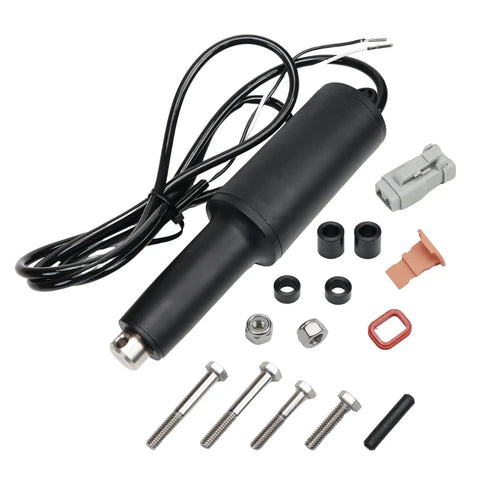

✅ Package includes: 1x Boat Trim Tab Actuator, 4x Hex Bolt, 2x Spacer, 1x Electrical Connector Boot, 1x Electrical Connector, 1x Cylindrical Pin

💡 What is a boat trim tab actuator and why replace it?

This handy device helps you control planing and stability across seas. - Handy for adjusting trim to reduce hull drag and porpoising - Works with 12V systems and heavy-duty stabilizers - Sealed housing and waterproof connectors for harsh marine use
