Boss Grade Tungsten Carbide Dovetail Milling Cutter 55 Degree End Mill For Dovetail Slots 10 To 60 Mm Cutting Diameter High Hardness Long Lasting Straight Shank CNC Cutting Tool

55 Degree Tungsten Carbide Dovetail Milling Cutter
✔️ Diameters 10 to 60 mm (0.39 to 2.36 in), 55° dovetail carbide, sold per diameter

This carbide dovetail milling cutter is built to form precise 55 degree dovetail slots in metal parts. It’s commonly used in mold making, fixture design, and CNC or manual milling where robust dovetail geometry delivers strong, accurate joints.

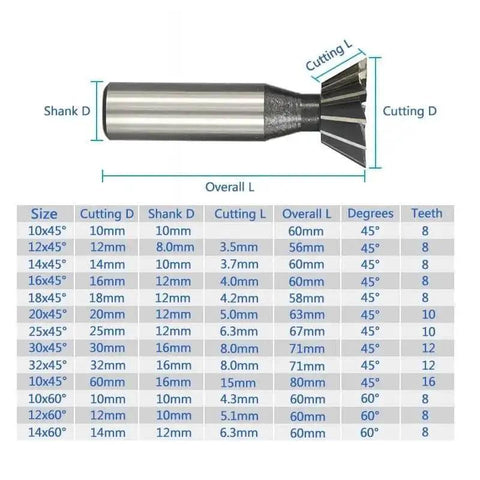

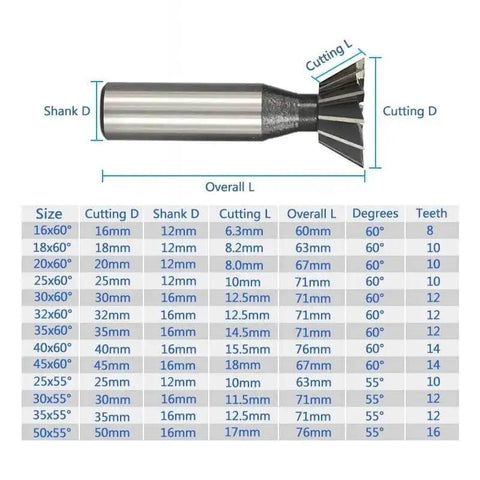

✅ Cutting diameter options: 10, 12, 14, 16, 18, 20, 25, 30, 32, 35, 40, 45, 50, 60 mm (0.39 to 2.36 in)
✅ 55 degree dovetail geometry for precise slots
✅ Tungsten carbide construction for high hardness and long life
✅ Straight shank for wide machine compatibility
✅ Fine grinding grooves for smooth chip evacuation
✅ Works on ferrous and nonferrous metals including cast iron and steel

💡 What is a dovetail milling cutter used for in machining? For handy reference, here's how it helps in common setups.

• Great for creating 55 degree dovetail slots in cast iron, stainless steel, and aluminum using CNC milling
• Ideal for mold making and fixture design where dovetail joints are needed for sliding or locking parts, including linear slide units
• Use with proper speeds and feeds to maximize tool life
