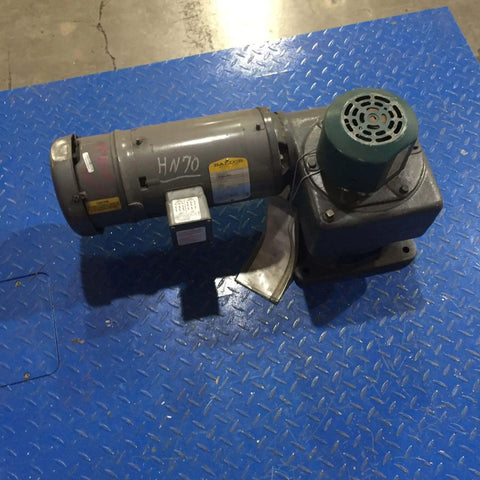

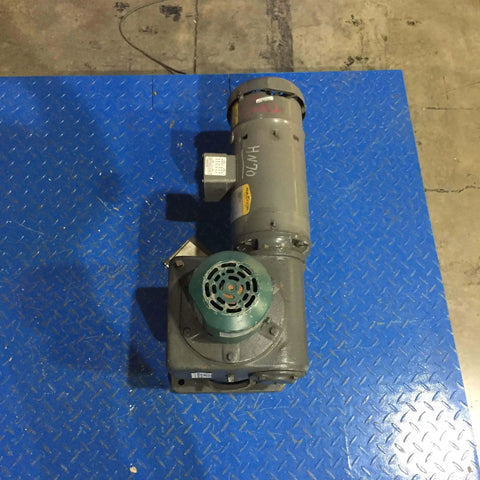

Brake motor 1.50 HP 1800 RPM 208-230/460V three-phase TEFC 145TC frame C-face drive end footless mount single unit VBM3554T industrial replacement with sealed ball bearing

1.5 HP Industrial Brake Motor, 1800 RPM, TEFC
✔️ 208-230/460V 3-phase TEFC, 145TC, 2.10A FL, 84% eff, single unit

This single 1.5 HP brake motor is a footless C-face industrial motor commonly used on conveyors, pumps, and compressors in production and maintenance settings.

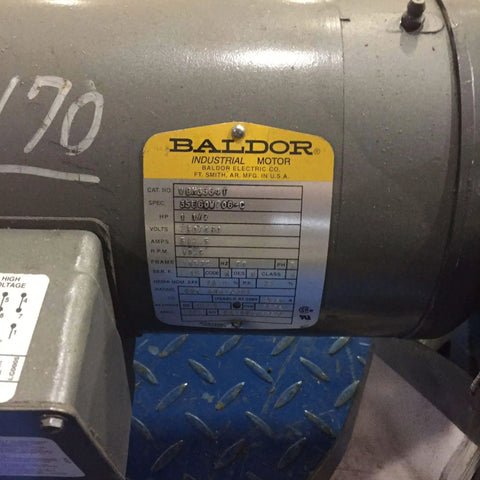

✅ Model: VBM3554T, 1.50 hp, 1800 RPM
✅ Voltage: 208-230/460 V three-phase; Full load 2.10 A
✅ Enclosure: TEFC (totally enclosed fan cooled); Frame size 145TC
✅ Mounting: Footless with C-face drive end flange for compact installs
✅ Performance: 84.0% full-load efficiency; sealed ball bearing for longer life
✅ Use cases: industrial replacement for conveyors, pumps, compressors; handy with linear slide unit setups

💡 What is a brake motor used for in conveyor and pump applications? A brake motor provides controlled stopping and holding torque to keep equipment secure during stops. - Provides precise holding and stopping torque to prevent unintended motion during load stops - Works well with sealed ball bearing designs to reduce maintenance and noise over time - Handy for systems that use linear slide units or require ceramic-compatible bearing upgrades - Ideal when a compact C-face footless mount is needed for industrial replacements
