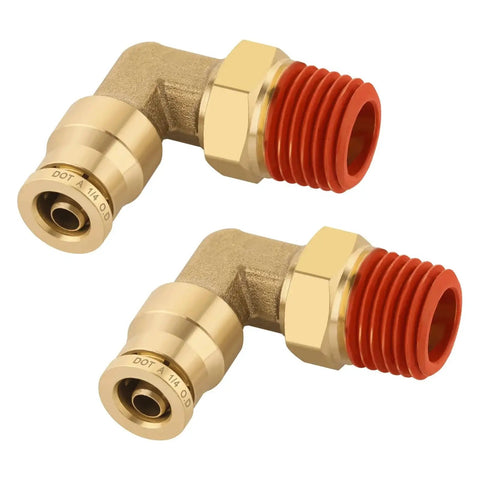

Brass Push To Connect 90 Deg Elbow Fittings 1/4 In OD To NPT DOT Approved 2 Pack

Brass Push-To-Connect 90° Elbow Fittings: 1/4 in OD to NPT
✔️ Push-to-connect brass 1/4 in tube OD to 1/4 in NPT, DOT OK

These DOT‑approved, precision brass elbows connect 1/4 in OD tubing (6.35 mm) to 1/4 in NPT threads with a 90‑degree bend. Ideal for automotive air lines, pneumatic circuits, and brake line setups where secure, leak‑free joints matter.

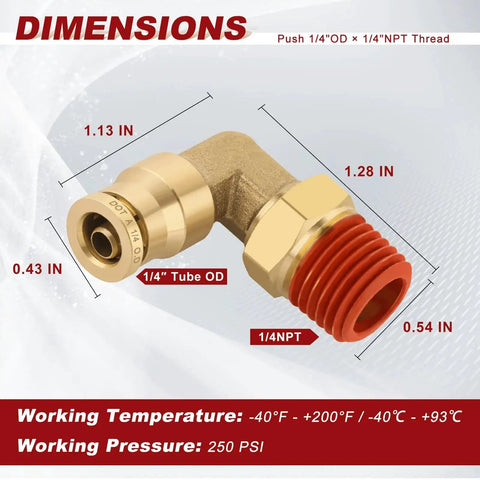

✅ 1/4 in tube OD x 1/4 in NPT thread

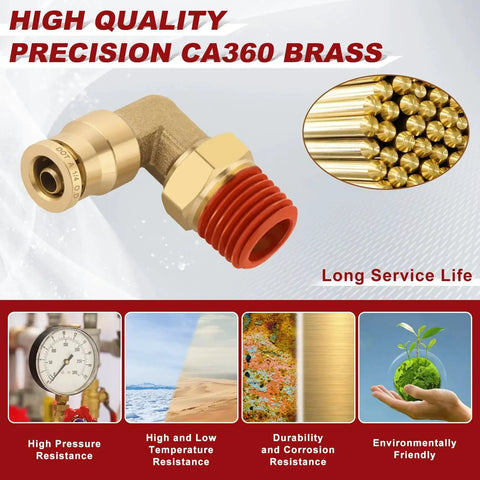

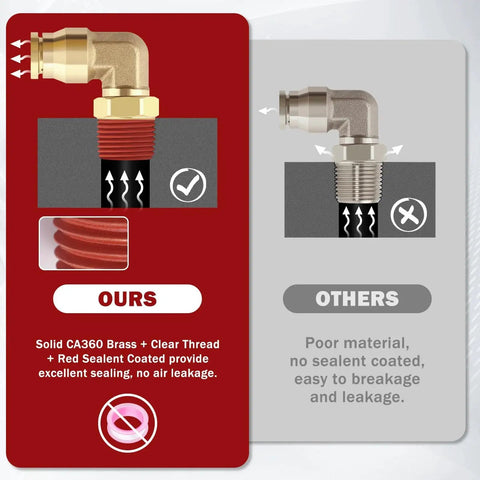

✅ CA360 brass with red sealant coating for corrosion resistance
✅ DOT FMVSS 571.106 and SAE J1131 compliance for air brake systems

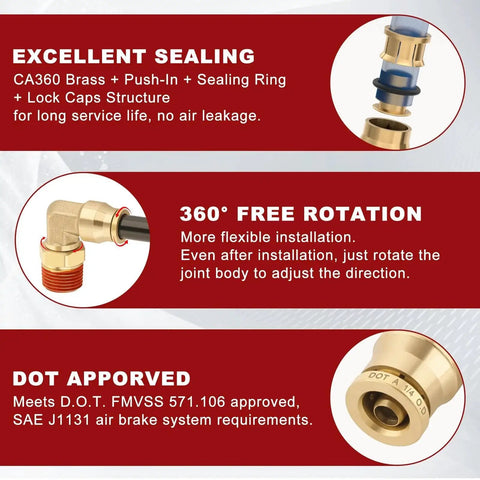

✅ 360° rotation for flexible installation
✅ Up to 250 psi pressure rating and wide temp range -40°F to 160°F (-53°C to 121°C)
✅ Pack of 2 elbows included

💡 What is a push-to-connect brass elbow fitting used for in pneumatic and automotive systems?

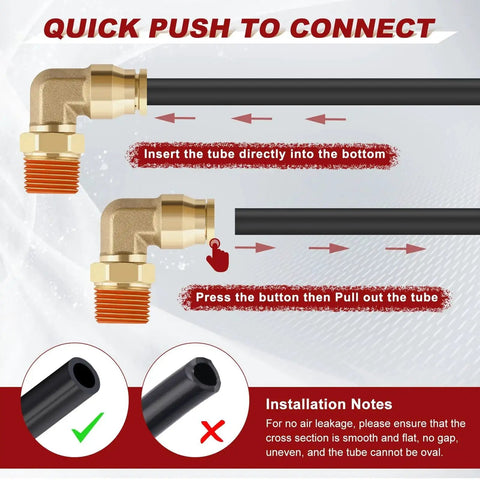

Handy, tool-free connections speed up installs and maintenance across air lines and brake lines.

- Quick, reliable connections for 1/4 in tubing in auto and industrial setups
- Works with 1/4 in NPT threads for easy mounting
- DOT approved helps ensure safety and compliance
