Buzile Dump Pump BG102-20RAS Replacement G102-1-2.0R-4S-AS S2AD-15-2BPRR S3AD-15-2BPRR DMD-400-20-XR-200-AS WAP102G-20RAS MH102G-20-RAS GP-102-RAS-20 G102-2.0-RH-A-2 S-18426 3089310903 G102

Buzile BG102-20RAS Dump Pump Replacement for Dump Trucks and Trailers - 2.0" Gear Width, 29 GPM, 2300 PSI Relief, SAE 4-Bolt Mount ✔️ BG102-20RAS, 2.0 in gear width; 29 GPM at 1800 RPM; CW rotation; 2300 PSI relief; 2500 PSI max; 1¼" NPT intake; ¾" NPT outlet; SAE 4-Bolt B mounting; 7/8"-13 shaft

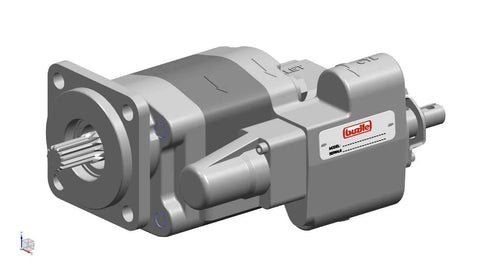

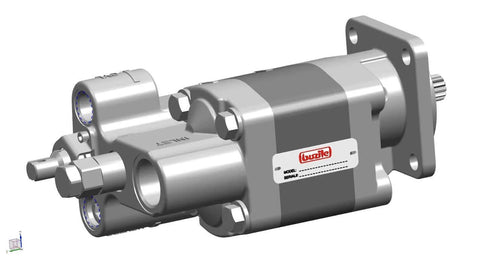

The BG102-20RAS is a rugged hydraulic dump pump designed for dump trucks and trailers, delivering reliable lift and dump cycles in heavy-duty fleets. Pack Size: single unit. It features a direct-mount SAE “B” four-bolt pattern, a high-strength gear and shaft set, a built-in load check, and an integrated relief valve for safe operation. This pump is factory tested and supports both 2-line intermittent and 3-line continuous duty configurations, making it a handy choice for demanding hauling tasks.

✅ Gear width: 2.0 in
✅ Flow at 1800 RPM: 29 GPM
✅ Rotation: CW (Clockwise)
✅ Relief Valve Setting: 2300 PSI
✅ Max Pressure: 2500 PSI
✅ Max Speeds: 2400 RPM
✅ Porting: Inlet 1¼" NPT; Outlet ¾" NPT
✅ Mounting: SAE 4 BOLT B
✅ Input Shaft: 7/8"-13 Teeth Spline
✅ Cubic Inches Per Revolution: 3.94
✅ Air shift: available (2-line intermittent or 3-line continuous)
✅ Built-in load check and neutral lock-out safety features
✅ High-strength alloy steel gear and shaft set
✅ Factory tested for performance and reliability
✅ Interchange compatibility: G102-1-2.0R-4S-AS, S2AD-15-2BPRR, DMD-400-20-XR-200-AS, WAP102G-20RAS, MH102G-20-RAS, GP-102-RAS-20
