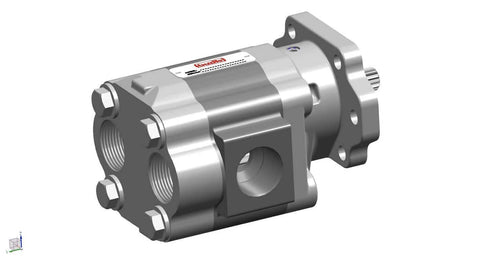

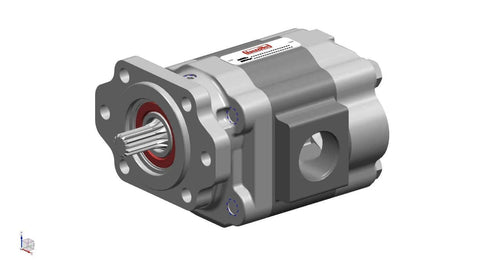

Buzile Gear Pump Motor BGM51A846BTYR22-25 Replacement P51A646BTYR22-25 PL25-2BPBB S-17646 H5036221 TKPEL22 ML51B-25ANX WAL51B-25ANX P5100A735OFXQ22-14 P5151A224AAXQ22-54 M5151A224AAXQ22-54 3139610659
$987.92 CAD
$1,510.93 CADyou save $523.01 CAD
SKU: VXB07QBYTK52
UPC: 00193019422472
UPC: 00193019422472
Buzile BGM51A846BTYR22-25 Fixed Displacement Gear Pump Replacement for Heavy-Duty Trucks and Oil & Gas - 25 GPM, 3000 PSI, SAE B Flange 2 1/4" Gear Size
✔️ Gear Pump BGM51A846BTYR22-25: 2 1/4" gear size, Bi-Rotational, 1 1/2" NPT side & rear ports, 7/8"-13 shaft, SAE B 2/4 bolt flange, 25 GPM @ 1000 RPM, 3000 PSI
✅ Rotation: Bi-Rotational
✅ Side Ports: 1 1/2" NPT
✅ Rear Ports: 1 1/2" NPT
✅ Drive Shaft: 7/8"-13
✅ Flange: SAE "B" 2/4-Bolt
✅ Flow Rate @ 1000 RPM: 25 GPM
✅ Max Pressure: 3000 PSI
✅ Max Speeds: 3000 RPM
✅ CID: 5.73
✅ Weight: 46.9 LBS
✅ Pack Size: Single unit
💡 What is a fixed displacement gear pump used for in heavy equipment and hydraulic systems? This pump provides a constant flow regardless of pressure, making it ideal for reliable hydraulic performance in demanding machinery. - Consistent, controllable flow for open or closed circuits - Handy for trucks, winches, and oil & gas installations - Easy to match with motors and valves for straightforward system design This handy pump helps ensure reliable performance in heavy equipment.
✔️ Gear Pump BGM51A846BTYR22-25: 2 1/4" gear size, Bi-Rotational, 1 1/2" NPT side & rear ports, 7/8"-13 shaft, SAE B 2/4 bolt flange, 25 GPM @ 1000 RPM, 3000 PSI
Buzile’s 51 Series fixed displacement gear pumps are built for rugged reliability in demanding settings like vocational trucks, winches, and oil & gas equipment. This replacement pump resists oil contamination and delivers steady performance thanks to a cast-iron housing and robust roller bearings.
✅ Gear Size: 2 1/4"✅ Rotation: Bi-Rotational
✅ Side Ports: 1 1/2" NPT
✅ Rear Ports: 1 1/2" NPT
✅ Drive Shaft: 7/8"-13
✅ Flange: SAE "B" 2/4-Bolt
✅ Flow Rate @ 1000 RPM: 25 GPM
✅ Max Pressure: 3000 PSI
✅ Max Speeds: 3000 RPM
✅ CID: 5.73
✅ Weight: 46.9 LBS
✅ Pack Size: Single unit
💡 What is a fixed displacement gear pump used for in heavy equipment and hydraulic systems? This pump provides a constant flow regardless of pressure, making it ideal for reliable hydraulic performance in demanding machinery. - Consistent, controllable flow for open or closed circuits - Handy for trucks, winches, and oil & gas installations - Easy to match with motors and valves for straightforward system design This handy pump helps ensure reliable performance in heavy equipment.
